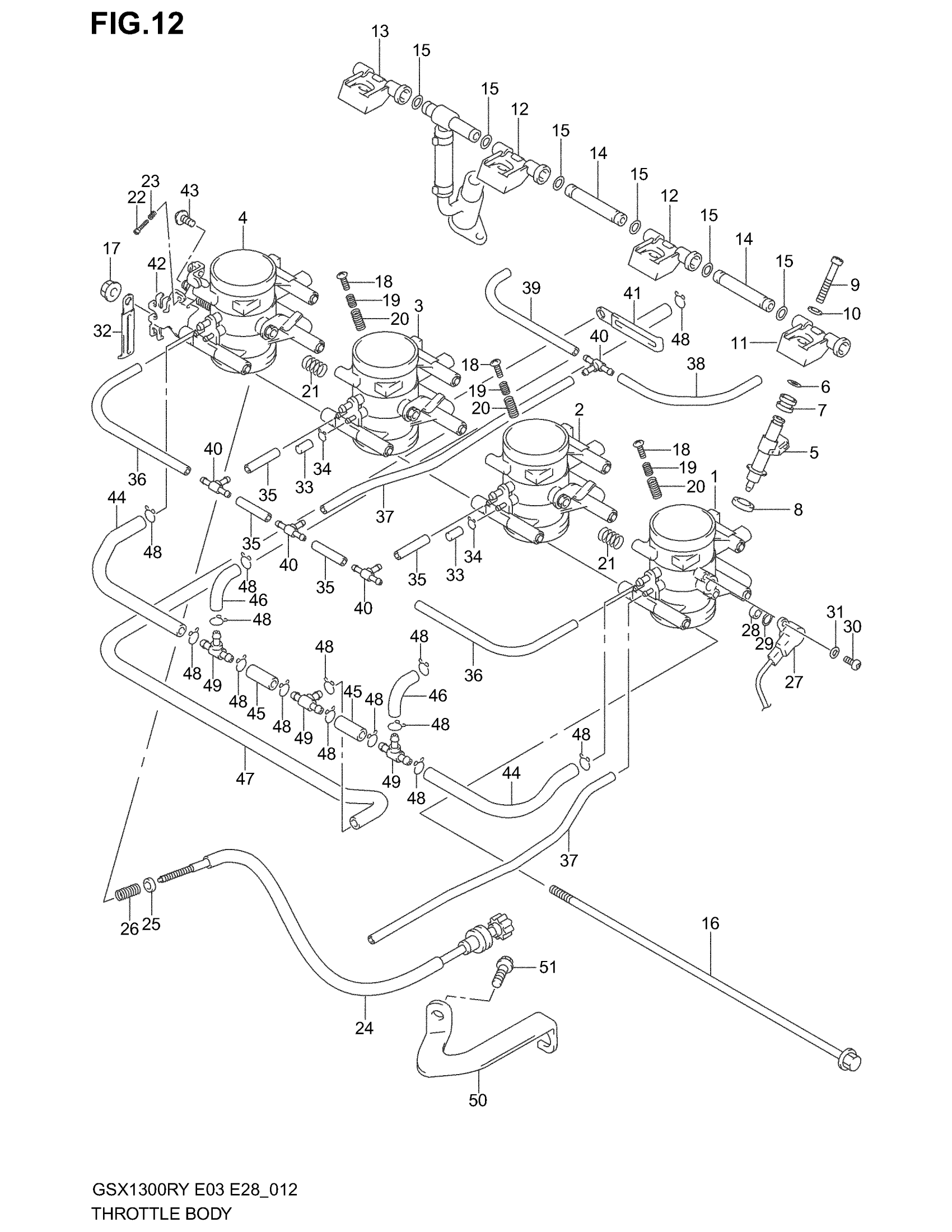

Suzuki GSX1300R (2003) THROTTLE BODY (MODEL X/Y) Diagram

#

Description
Price

1

THROTTLE BODY ASSY, LH | E3,E28

13401-24F00

Unavailable

1

THROTTLE BODY ASSY, LH | E33

13401-24F10

Unavailable

2

THROTTLE BODY ASSY, ML | E3,E28

13402-24F00

Unavailable

2

THROTTLE BODY ASSY, ML | E33

13402-24F10

Unavailable

3

THROTTLE BODY ASSY, MR | E3,E28

13403-24F00

Unavailable

3

THROTTLE BODY ASSY, MR | E33

13403-24F10

Unavailable

4

THROTTLE BODY ASSY, RH | E3,E28

13404-24F00

Unavailable

4

THROTTLE BODY ASSY, RH | E33

13404-24F10

Unavailable

5

INJECTOR ASSY

15710-24F00

$271.91

6

.O-RING

15721-24F00

$9.09

7

RING, CUSHION

15722-24F00

$11.82

8

RING, SEAL

13672-24F00

$13.75

9

SCREW

13605-24F00

Unavailable

10

WASHER (5.5X16X1.2) This part replaces 13615-24F00.

09160-05043

$2.30

11

JOINT, LH This part replaces 13471-24F00.

13471-35F00

Unavailable

12

JOINT, ML/MR This part replaces 13471-24F10.

13471-35F10

$35.45

13

JOINT, RH This part replaces 13471-24F20.

13471-35F20

Unavailable

14

JOINT

13474-24F00

Unavailable

15

.O-RING

15721-24F00

$9.09

16

BOLT

13611-24F00

$23.78

17

NUT

13607-24F00

$3.22

18

SCREW, STOP

13602-24F00

Unavailable

19

SPRING

13543-24F00

Unavailable

20

SPRING

13543-24F10

Unavailable

21

SPRING

13543-24F20

Unavailable

22

SCREW, STOP

13602-24F10

Unavailable

23

SPRING

13543-24F30

Unavailable

24

SCREW, STOP

13270-24F00

$86.92

25

WASHER

13273-24F00

$2.88

26

SPRING

13271-24F00

$4.04

27

SENSOR ASSY, THROTTLE

13580-24F00

Unavailable

28

COLLAR

13582-24F00

$9.72

29

O RING

13575-24F00

$5.00

30

SCREW

13613-24F00

$3.08

31

WASHER This part replaces 13615-24F10.

13572-03F00

Unavailable

32

CLAMP | E3,E28

13432-24F10

Unavailable

32

CLAMP | E33

13619-24F00

Unavailable

33

CAP, RUBBER

13508-24F00

$10.07

34

CLIP

13692-24F10

Unavailable

35

HOSE,RUBBER(L:3 This part replaces 13697-24F00.

13697-24F01

$2.82

36

HOSE,RUBBER(L:1 This part replaces 13697-24F20.

13697-24F21

$3.47

37

HOSE,RUBBER(L:2 This part replaces 13697-24F30.

13697-24F31

$10.33

38

HOSE, RUBBER (L:120)

13697-24F10

Unavailable

39

HOSE, RUBBER (L:110+20)

13697-24F40

Unavailable

40

JOINT

13471-24F30

$16.48

41

CLAMP

13432-24F00

Unavailable

42

PLATE, STAY

13565-24F00

Unavailable

43

SCREW

13601-24F00

Unavailable

44

HOSE, RUBBER (L:80+25) | E33

13698-24F00

Unavailable

45

HOSE, RUBBER (L:35) | E33

13698-24F10

Unavailable

46

HOSE, RUBBER (L:30+30) | E33

13698-24F20

Unavailable

47

HOSE, RUBBER (L:440+30) | E33

13698-24F30

Unavailable

48

CLIP | E33

13693-24F00

$3.22

49

JOINT | E33

13685-36E50

Unavailable

50

PLATE, IDLE ADJUST

13279-24F00

Unavailable

51

BOLT, IDLE ADJUST PLATE

01550-06167

$2.30
