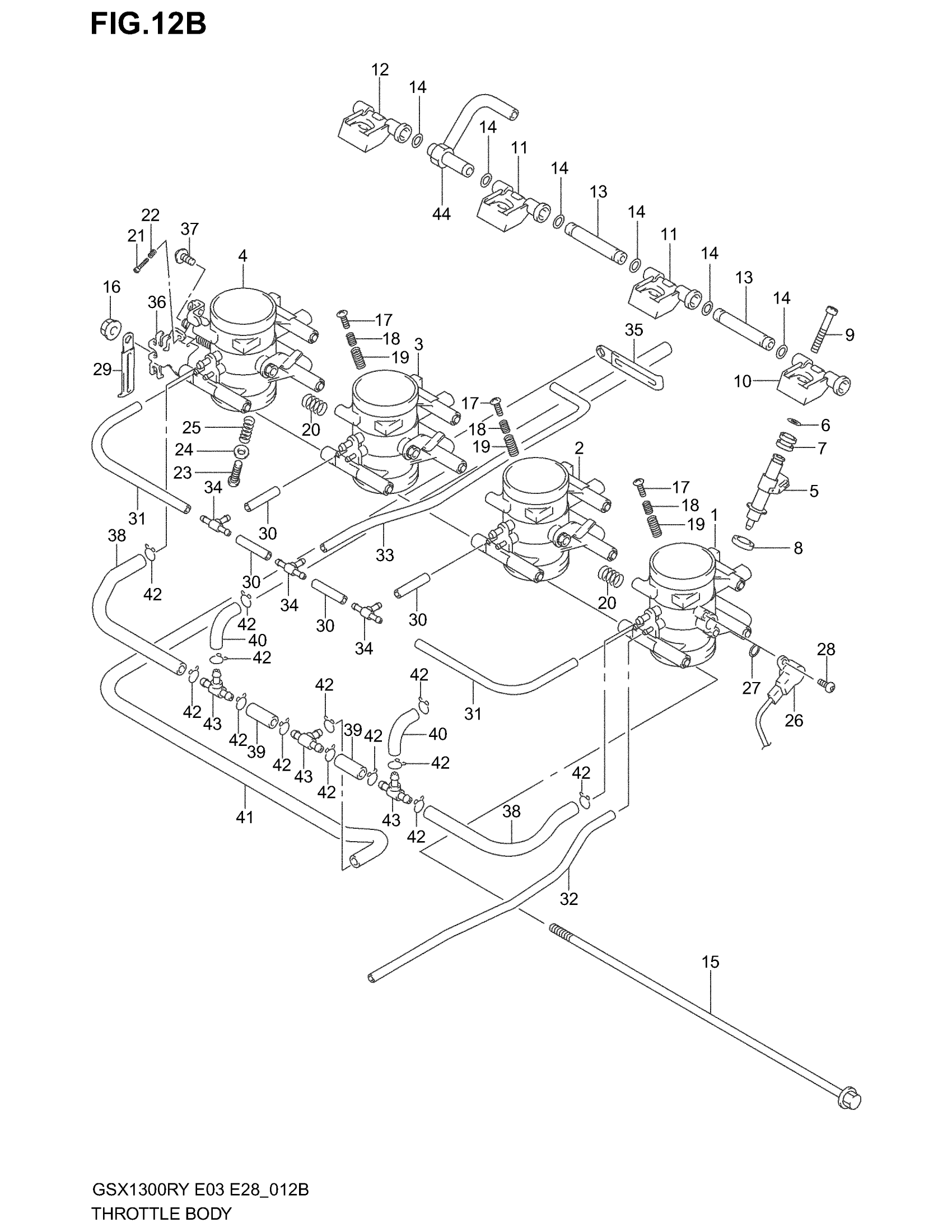

Suzuki GSX1300R (2003) THROTTLE BODY (MODEL K2/K3) Diagram

#

Description
Price

1

THROTTLE BODY ASSY, LH | E3,E28

13401-24FJ0

Unavailable

1

THROTTLE BODY ASSY, LH | E33

13401-24FH0

Unavailable

2

THROTTLE BODY ASSY, ML | E3,E28

13402-24FJ0

Unavailable

2

THROTTLE BODY ASSY, ML | E33

13402-24FH0

Unavailable

3

THROTTLE BODY ASSY, MR | E3,E28

13403-24FJ0

Unavailable

3

THROTTLE BODY ASSY, MR | E33

13403-24FH0

Unavailable

4

THROTTLE BODY ASSY, RH | E3,E28

13404-24FJ0

Unavailable

4

THROTTLE BODY ASSY, RH | E33

13404-24FH0

Unavailable

5

INJECTOR ASSY

15710-24F00

$271.91

6

.O-RING

15721-24F00

$9.09

7

RING, CUSHION

15722-24F00

$11.82

8

RING, SEAL

13672-24F00

$13.75

9

SCREW

13601-35F00

$7.50

10

JOINT, NO.1

13471-35F00

Unavailable

11

JOINT, NO.2,3

13471-35F10

$35.45

12

JOINT, NO.4

13471-35F20

Unavailable

13

JOINT

13474-24F00

Unavailable

14

.O-RING

15721-24F00

$9.09

15

BOLT

13611-24F00

$23.78

16

NUT

13607-24F00

$3.22

17

SCREW, STOP

13423-35F00

$8.52

18

SPRING

13543-24F00

Unavailable

19

SPRING

13268-03F50

Unavailable

20

SPRING

13543-24F20

Unavailable

21

SCREW, STOP

13602-24F10

Unavailable

22

SPRING

13543-24F30

Unavailable

23

SCREW, STOP

13267-35F00

$31.22

24

WASHER

13273-24F00

$2.88

25

SPRING

13271-24F00

$4.04

26

.SENSOR ASSY,THROTTLE NO.1 This part replaces 13580-40F20.

13580-40F22

$249.45

27

O RING

13575-24F00

$5.00

28

SCREW

13605-40F00

$3.71

29

CLAMP | E3,E28

13432-24F10

Unavailable

29

CLAMP | E33

13619-24F10

Unavailable

30

HOSE,RUBBER(L:3 This part replaces 13697-24F00.

13697-24F01

$2.82

31

HOSE,RUBBER(L:1 This part replaces 13697-24F20.

13697-24F21

$3.47

32

HOSE,RUBBER(L:2 This part replaces 13697-24F30.

13697-24F31

$10.33

33

HOSE, RUBBER (L:230+20)

13697-24FA0

Unavailable

34

JOINT

13471-24F30

$16.48

35

CLAMP

13432-24FA0

Unavailable

36

PLATE, STAY

13565-24F00

Unavailable

37

SCREW

13601-24F00

Unavailable

38

HOSE, RUBBER (L:80+25) | E33

13698-24F00

Unavailable

39

HOSE, RUBBER (L:35) | E33

13698-24F10

Unavailable

40

HOSE, RUBBER (L:30+30) | E33

13698-24F20

Unavailable

41

HOSE, RUBBER (L:440+30) | E33

13698-24F30

Unavailable

42

CLIP | E33

13693-24F00

$3.22

43

JOINT | E33

13685-36E50

Unavailable

44

JOINT

13473-35F01

Unavailable
