2003 Suzuki GSX1300R Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 2003 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

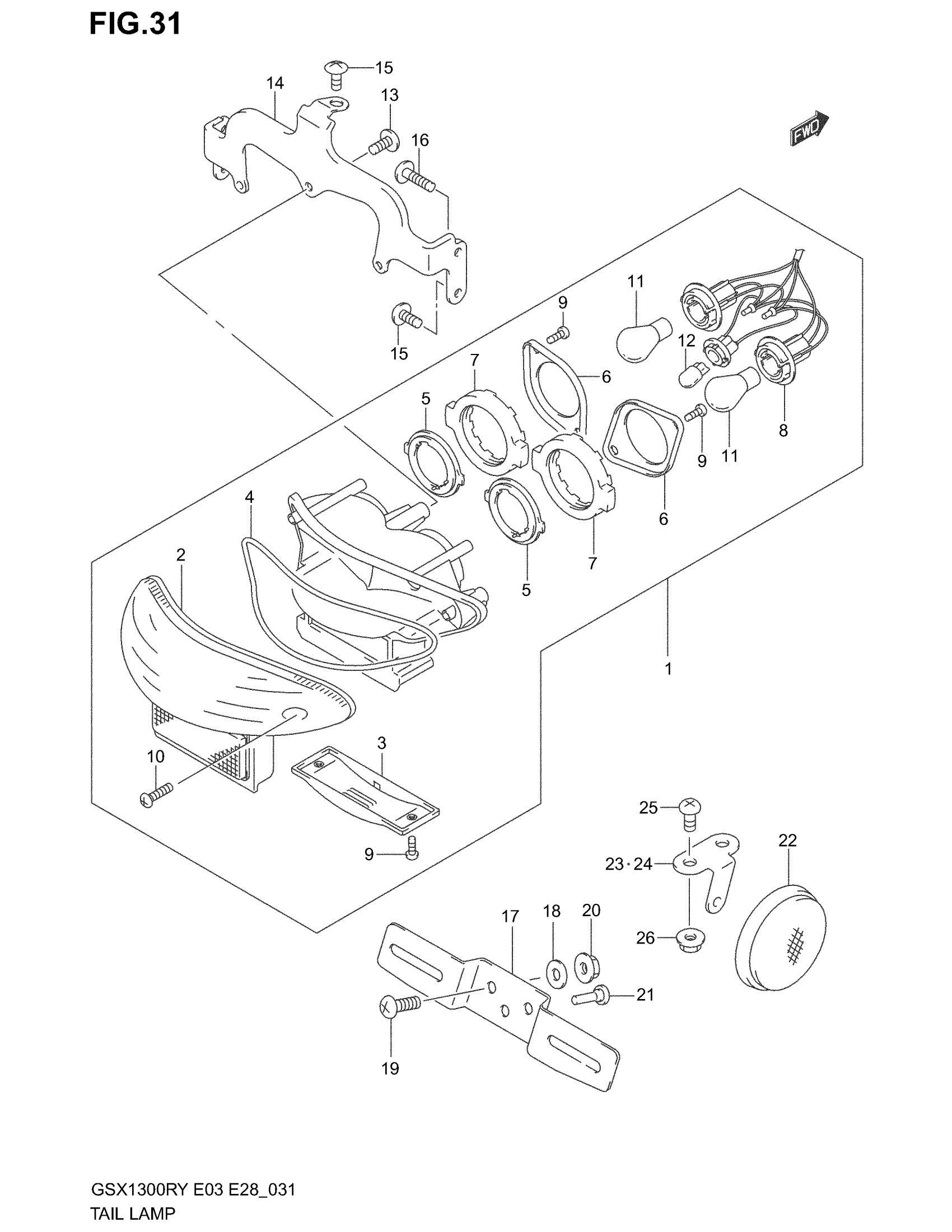

2003 Suzuki GSX1300R Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 12

35710-24F30

1
Out of stock

2

LENS

35712-24F30

1
Out of stock

3

LENS, LICENSE

35912-24F00

1
Out of stock

4

GASKET

35713-24F00

1
Out of stock

5

PLATE NO.1

35716-48B21

2
Out of stock

6

PLATE NO.2

35736-48B21

2
Out of stock

7

CUSHION | MODEL X/Y This part replaces 35765-42E00.

35765-48B21

2
Out of stock

7

CUSHION | MODEL K1/K2/K3

35765-48B21

2
Out of stock

8

SOCKET & CORD

35718-24F00

1
Out of stock

9

SCREW This part replaces 03211-04123.

03211-0412A

6
Out of stock

10

SCREW

03211-04207

2
Out of stock

11

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

2
Out of stock

12

.BULB (12V5W) This part replaces 09471-12081.

09471-12216

1
Out of stock

13

SCREW This part replaces 03541-05163.

03541-0516A

3
Out of stock

14

BRACKET, REAR COMB

35726-24F00

1
Out of stock

15

SCREW This part replaces 03541-05163.

03541-0516A

3
Out of stock

16

SCREW This part replaces 03541-05253.

03541-0525B

2
Out of stock

17

BRACKET, LICENSE PLATE

35927-24F00

1
Out of stock

18

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

19

SCREW | MODEL X/Y This part replaces 02142-06203.

02142-0620A

2
Out of stock

19

SCREW | MODEL K1/K2/K3 This part replaces 02142-06163.

02142-0616A

2
Out of stock

20

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

21

CUSHION

09321-06026

1
Out of stock

22

REFLECTOR ASSY, RR SIDE

35970-14A20

2
Out of stock

23

BRACKET, REAR RH This part replaces 35975-24F00.

35975-24F01

1
Out of stock

24

BRACKET, REAR LH This part replaces 35976-24F00.

35976-24F01

1
Out of stock

25

SCREW | MODEL X/Y This part replaces 02112-06163.

02112-0616A

4
Out of stock

25

SCREW | MODEL K1/K2/K3 This part replaces 02112-06123.

02112-0612A

4
Out of stock

26

NUT This part replaces 08316-10063.

08316-1006B

4
Out of stock
