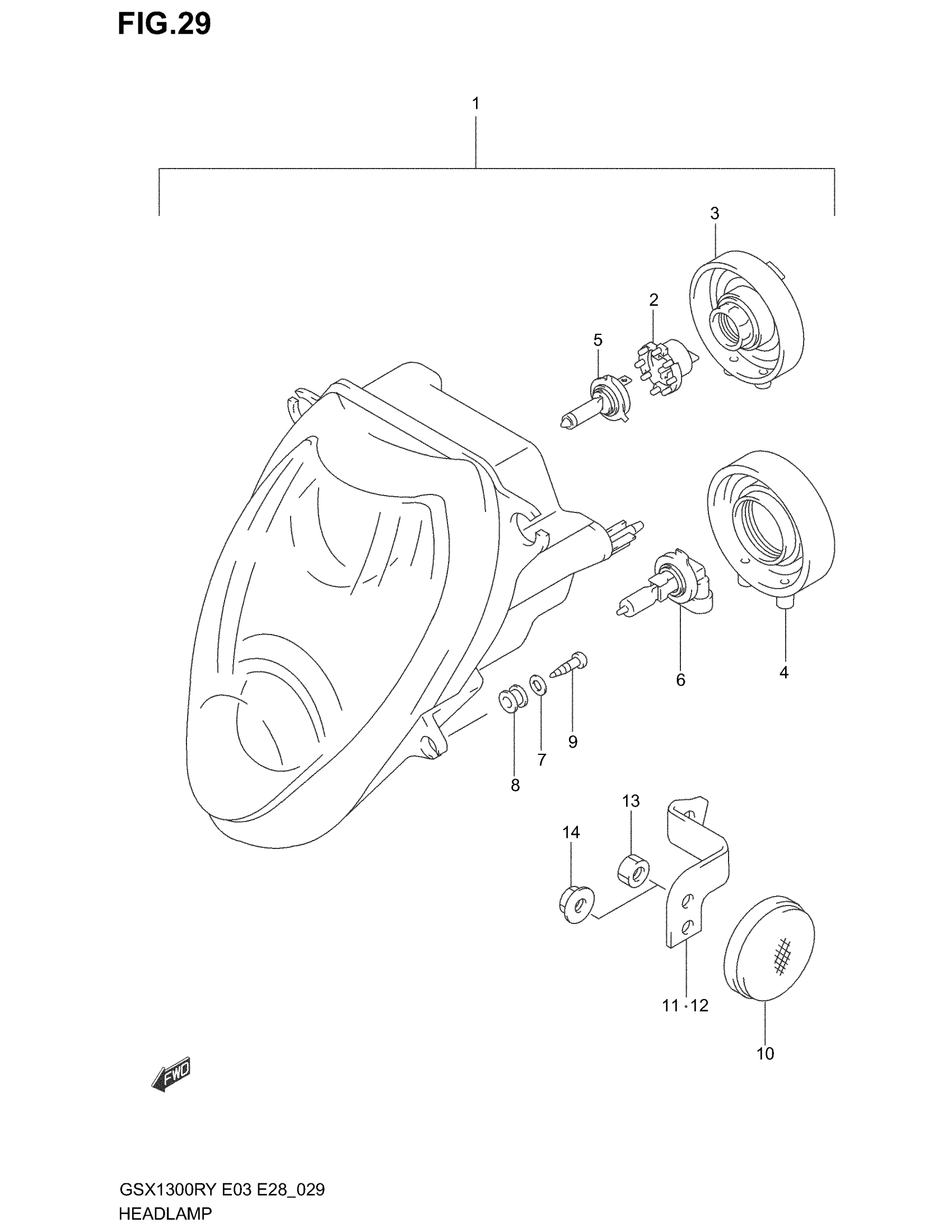

Suzuki GSX1300R (2003) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 4

35100-24F01-999

$641.93

2

ADAPTER ASSY

35175-24F00

$17.70

3

SOCKET, COVER

35125-24F10

$29.57

4

SOCKET, COVER

35125-24F00

$21.92

5

BULB (12V55W H7) | PURCHASE LOCALLY

09471-12188

$21.31

6

BULB (12V,60W,HB3,P20D) | PURCHASE LOCALLY

09471-12151

$52.62

7

WASHER (5.5X18X1.0)

09160-05045

$2.01

8

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.03

9

SCREW This part replaces 03512-05163.

03511-0516A

$1.95

10

REFLEX-REFLECTOR ASSY | MODEL X/Y/K1/K2

35950-14A00

$16.66

10

REFLEX REFLECTOR ASSY, FR SID | MODEL K3 This part replaces 35950-14A10.

35950-14A11

$14.56

11

BRACKET, RH

35956-02F00

Unavailable

12

BRACKET, LH

35957-02F00

Unavailable

13

NUT | MODEL X/Y/K1/K2 This part replaces 08310-00053.

08310-0005A

$1.90

14

NUT | MODEL K3 This part replaces 08316-10053.

08316-1005A

$2.25
