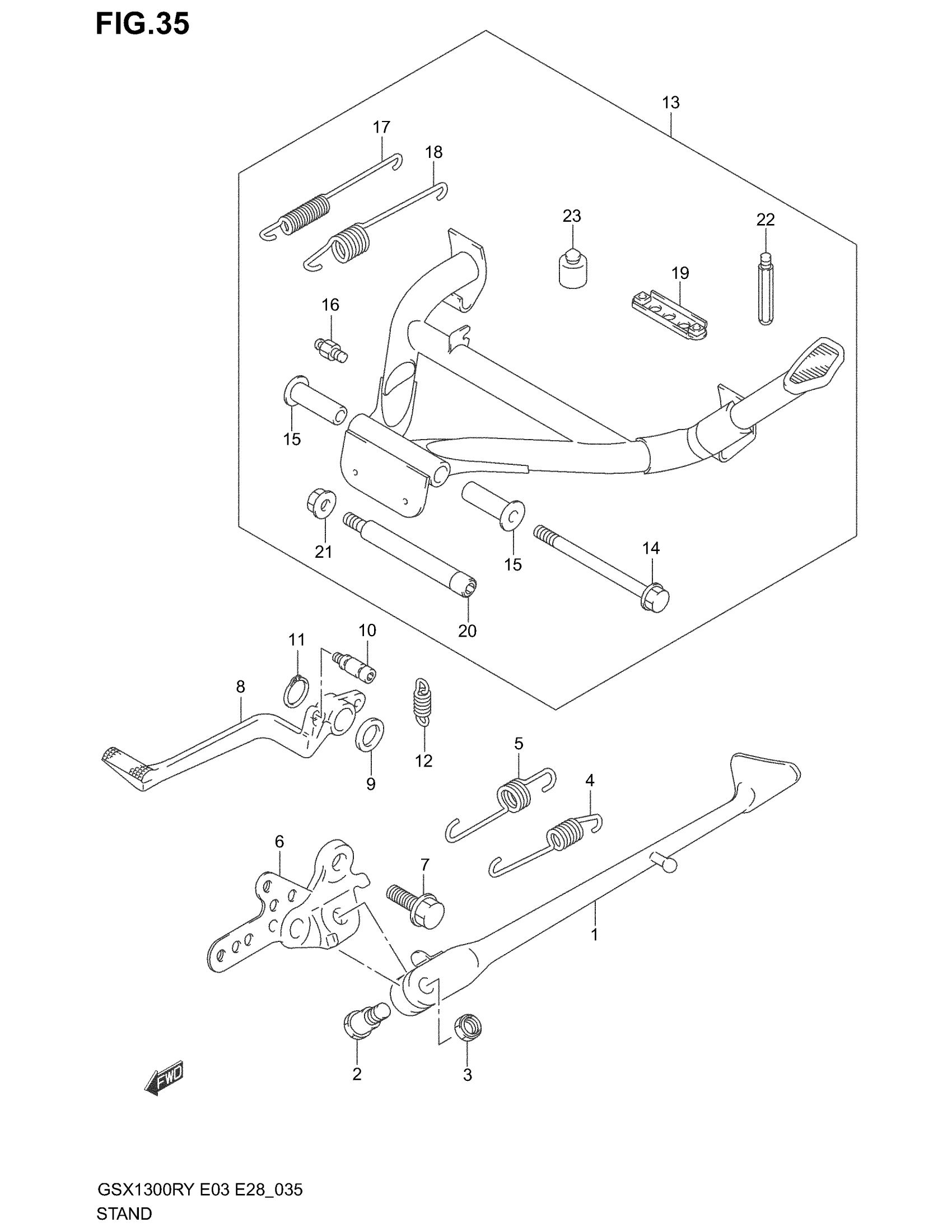

Suzuki GSX1300R (2003) STAND Diagram

#

Description
Price

1

STAND,PROP

42310-24F00

$164.77

2

BOLT, PROP STAND | MODEL X

09111-10058

$6.66

2

BOLT, PROP STAND | MODEL Y/K1/K2/K3

09111-10059

$6.95

3

NUT | MODEL X This part replaces 08319-31103.

08319-3110A

$2.73

3

NUT | MODEL Y/K1/K2/K3

09159-10103

$3.10

4

SPRING, INNER | MODEL X

09443-14066

$5.50

4

SPRING, INNER | MODEL Y/K1/K2/K3

09443-14068

$5.57

5

SPRING, OUTER | MODEL X

09443-19012

$5.89

5

SPRING, OUTER | MODEL Y/K1/K2/K3

09443-19015

$6.02

6

BRACKET,PROP STAND This part replaces 42330-24F00.

42330-24F01

$157.58

7

BOLT | MODEL X This part replaces 01550-12353.

01550-1235A

$3.75

7

BOLT | MODEL Y/K1/K2/K3

09100-12077

$4.56

8

PEDAL, BRAKE This part replaces 43111-24F00.

43111-24F01

$160.07

9

WASHER

09160-18022

$2.92

10

HOOK,RETURN SPRING

43561-24F00

$15.63

11

CLIP This part replaces 08331-31186.

08331-3118A

$2.13

12

SPRING | MODEL X This part replaces 09443-13030.

09443-13030-XC0

$5.00

12

SPRING, RETURN | MODEL Y/K1/K2/K3

09443-13032

$5.42

13

NO DESCRIPTION AVAILABLE | OPT; Includes Item(s) 14 - 23 This part replaces 42100-24820.

42100-24821

Unavailable

14

BOLT | OPT

42254-24F00

Unavailable

15

SPACER | OPT

42253-24F00

Unavailable

16

HOOK, SPRING | OPT

42251-24F00

Unavailable

17

SPRING, INNER | OPT

09443-14067

Unavailable

18

SPRING, OUTER | OPT

09443-22018

Unavailable

19

BRACKET, UNDER COWL | OPT

94590-24F00

Unavailable

20

BOLT, STOPPER | OPT

42252-24F00

Unavailable

21

NUT | OPT This part replaces 08319-31103.

08319-3110A

$2.73

22

BOLT, BANK SENSOR | OPT

43576-48B10

Unavailable

23

CUSHION | OPT

09321-10017

$6.38
