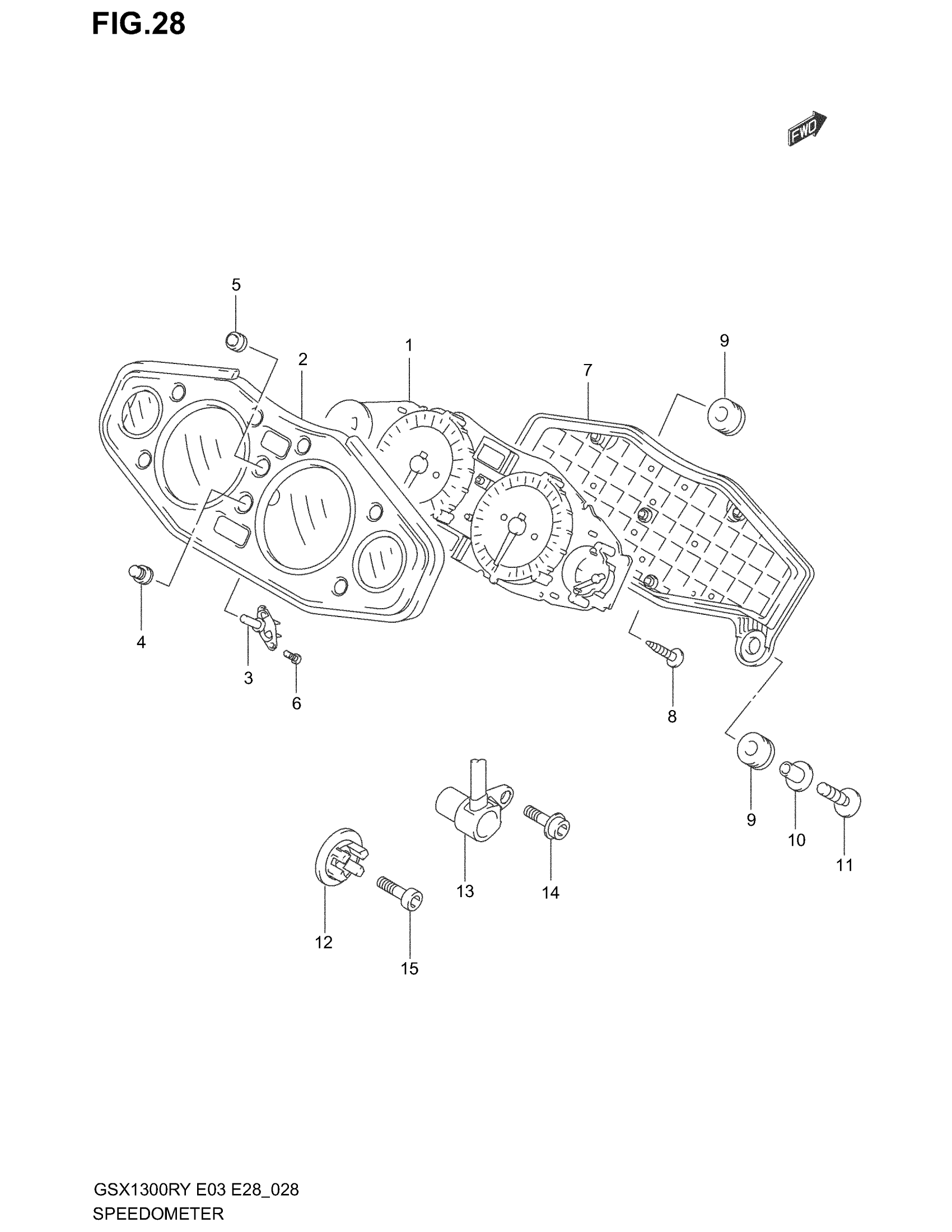

Suzuki GSX1300R (2003) SPEEDOMETER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 34120-24F10.

34120-24F12

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL Y This part replaces 34120-24F11.

34120-24F12

Unavailable

1

SPDOM & TACH AS | MODEL K1 This part replaces 34120-24F40.

34120-24F41

Unavailable

1

SPDOM & TACH ASSY (MILE/KILO) | MODEL K2/K3

34120-24F70

Unavailable

1

SPDOM & TACH ASSY (KILO) | MODEL X E28

34120-24F00

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL Y E28 This part replaces 34120-24F01.

34120-24F02

Unavailable

1

SPDOM & TACH ASSY (KILO) | MODEL K1 E28

34120-24F30

Unavailable

1

SPDOM & TACH ASSY (KILO) | MODEL K2/K3 E28

34120-24F60

Unavailable

2

VISOR ASSY

34150-24F00

Unavailable

3

ATTACHMENT, SWITCH

34123-24F00

Unavailable

4

SWITCH, GUM

34124-33E00

$5.75

5

SWITCH, LEVER

34124-24F00

$8.83

6

SCREW, FAN HEAD (3X10)

09132-03005

Unavailable

7

CASE ASSY | MODEL X This part replaces 34130-24F00.

34130-24F01

$249.02

7

CASE ASSY | MODEL Y/K1/K2/K3

34130-24F01

$249.02

8

SCREW This part replaces 03541-04163.

03541-0416A

$1.49

9

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

10

WASHER

34187-24F00

$7.57

11

BOLT, METER (6X25)

09116-06147

$3.20

12

ROTOR,SPEED | MODEL X/Y This part replaces 34981-42E00.

34981-42E01

$17.42

12

ROTOR,SPEED | MODEL K1/K2/K3 This part replaces 34981-35F00.

34981-38G01

$17.92

13

SENSOR, SPEED | MODEL X/Y This part replaces 34990-33E10.

34990-35F00

$127.72

13

SENSOR, SPEED | MODEL K1/K2/K3

34990-35F00

$127.72

14

BOLT This part replaces 07120-05123.

07120-0512B

$2.61

15

BOLT, SPEED ROTOR (8X25) | MODEL X/Y

09106-08144

Unavailable

15

BOLT | MODEL K1/K2/K3 This part replaces 07130-08253.

07130-0825B

$3.37
