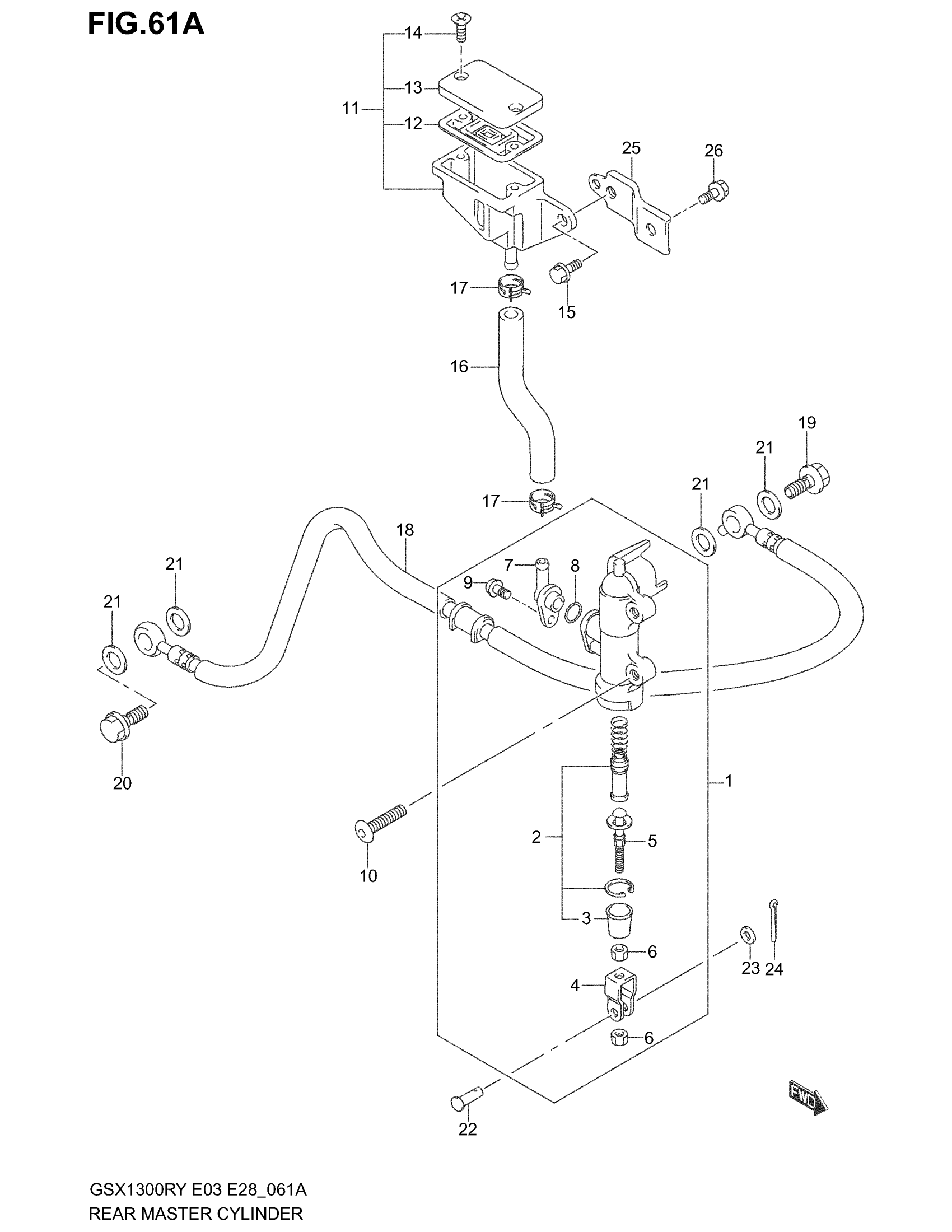

Suzuki GSX1300R (2003) REAR MASTER CYLINDER (MODEL K3) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-33C00

$239.31

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$30.88

3

.BOOT

69691-00A00

$5.22

4

YOKE

69692-27A30

$13.59

5

ROD, PUSH

69670-48B00

$35.80

6

NUT

69693-05A00

$1.86

7

CONNECTOR

69672-05A00

$5.47

8

O RING

69686-34200

$2.80

9

.SCREW This part replaces 02112-74123.

02112-7412A

$2.67

10

BOLT (6X20)

09139-06028

$3.44

11

TANK ASSY,RR RESERVOIR | Includes Item(s) 12 - 14

69740-01D02

$67.43

12

DIAPHRAGM

59667-04700

$9.36

13

CAP

59669-05D00

$16.49

14

SCREW

69689-04A00

$2.15

15

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

16

HOSE, RESERVOIR TANK

69731-24F00

$21.32

17

CLAMP

09401-13417

$2.31

18

HOSE,RR BRAKE This part replaces 69480-24F01.

69480-24F03

Unavailable

19

UNION This part replaces 09360-10041.

09360-10061

$6.07

20

UNION This part replaces 09360-10042.

09360-10062

$5.99

21

WASHER (10X15X1.5)

09161-10009

$1.89

22

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$3.82

23

.WASHER This part replaces 08322-01063.

08322-0106B

$2.31

24

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.25

25

BRACKET, RESERVOIR TANK

69750-24F00

Unavailable

26

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01
