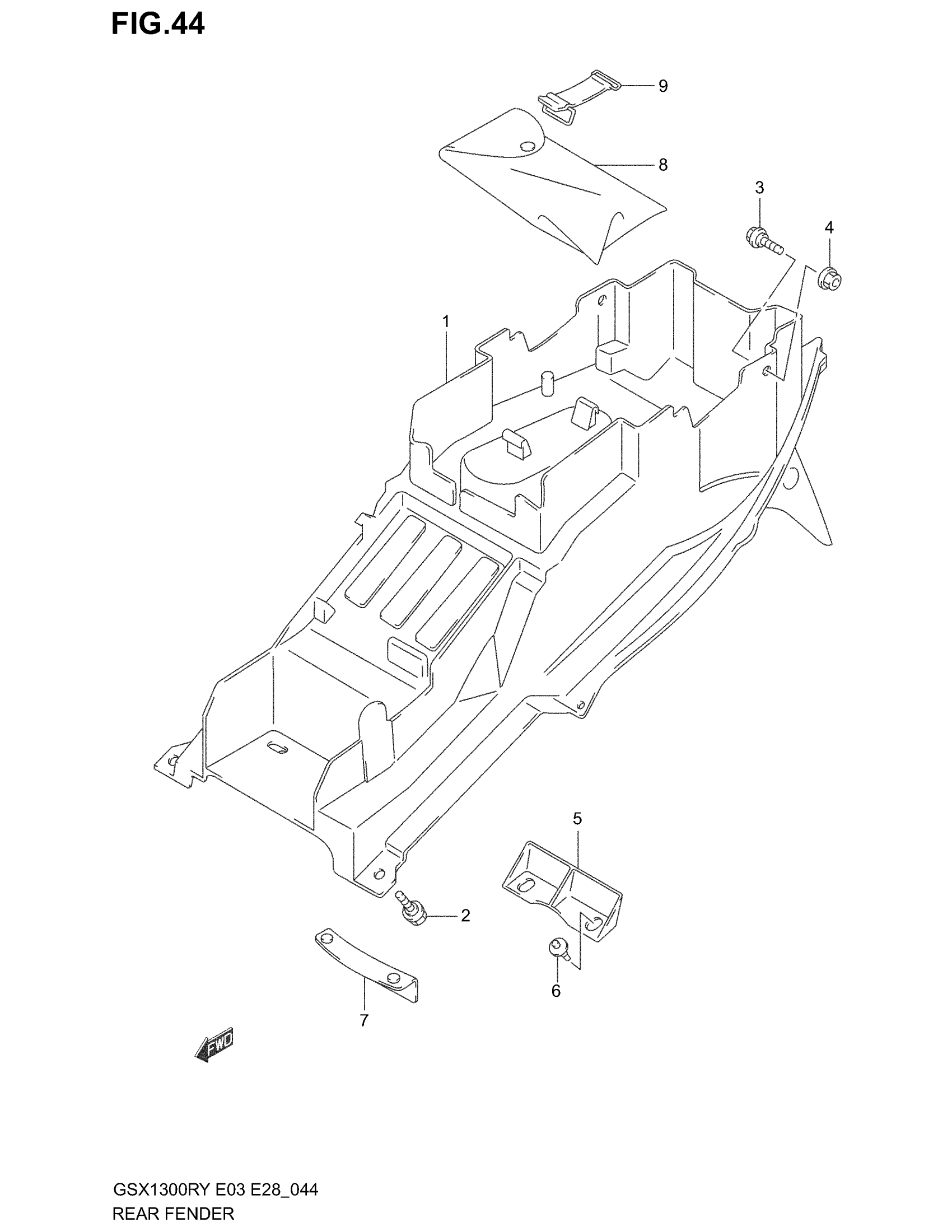

Suzuki GSX1300R (2003) REAR FENDER Diagram

#

Description

Price

1

FENDER, REAR | MODEL X/Y/K1/K2 This part replaces 63111-24F20.

63111-24F21

$196.66

1

FENDER, REAR | MODEL K3

63111-24F21

$196.66

2

BOLT, FRONT

09113-06001

$2.73

3

BOLT, REAR

09113-06001

$2.73

4

NUT This part replaces 08316-10063.

08316-1006B

$2.50

5

MUDGUARD, REAR

63411-24F00

$13.53

6

CLIP

09409-07333

$2.31

7

MUDGUARD, REAR UPPER

63421-24F00

$15.55

8

TOOL ASSY This part replaces 09800-21039.

09800-21089

$69.16

9

BAND, TOOL

09462-00093

$9.24
