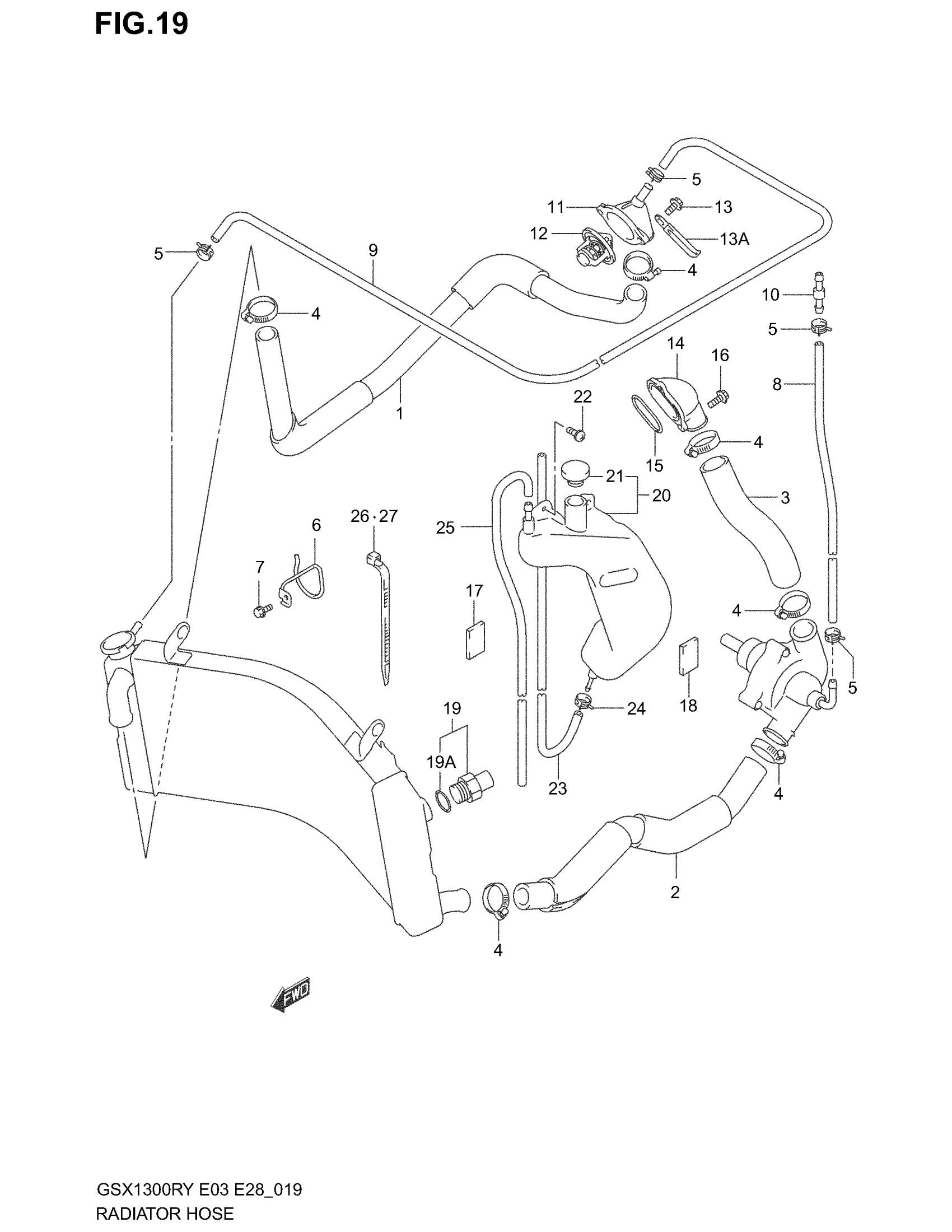

Suzuki GSX1300R (2003) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET | MODEL X/Y/K1 This part replaces 17851-24F00.

17851-24F01

$72.37

1

HOSE, RADIATOR INLET | MODEL K2/K3

17851-24F01

$72.37

2

HOSE, RADIATOR OUTLET

17852-24F00

$56.70

3

HOSE, CYLINDER INLET

17853-24F00

$20.25

4

CLAMP

09402-38511

$11.67

5

CLIP This part replaces 09401-12409.

09401-12414

$3.26

6

CLAMP, RADIATOR INLET HOSE

17859-24F00

Unavailable

7

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

8

HOSE, WATER BYPASS NO.1

17854-24F00

$22.92

9

HOSE, WATER BYPASS NO.2

17855-24F00

$42.85

10

UNION, BYPASS

09362-09011

$8.28

11

COVER, THERMOSTAT

17661-24F00

$43.68

12

THERMOSTAT,WTR, This part replaces 17670-50F00.

17670-50F01

$33.71

13

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

13A

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

14

CONNECTOR | MODEL X/Y/K1 This part replaces 17861-33E00.

17861-33E20

$22.56

14

CONNECTOR | MODEL K2/K3 This part replaces 17861-33E10.

17861-33E20

$22.56

15

O RING

17863-33E00

$4.03

16

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

17

CUSHION This part replaces 51827-12E00.

51827-01A00

$6.17

18

CUSHION, RESERVOIR TANK LH

53145-48B00

$3.30

19

SWITCH,RDTR FAN | Includes Item(s) 19A This part replaces 17680-33E00.

17680-33E01

$48.44

19A

O RING

17689-50F00

$2.53

20

TANK ASSY, RESERVOIR | Includes Item(s) 21

17910-24F00

$71.12

21

CAP

17932-12C00

$4.48

22

SCREW (6X20)

09136-06022

$2.21

23

HOSE, RESERVOIR TANK INLET

17981-21810

$42.85

24

CLIP

09401-08411

$1.78

25

HOSE, OVER FLOW

17982-38810

$17.37

26

CLAMP, RESERVOIR TANK HOSE

09407-18402

$2.19

27

CLAMP, RADIATOR OUTLET HOSE

09407-18402

$2.19
