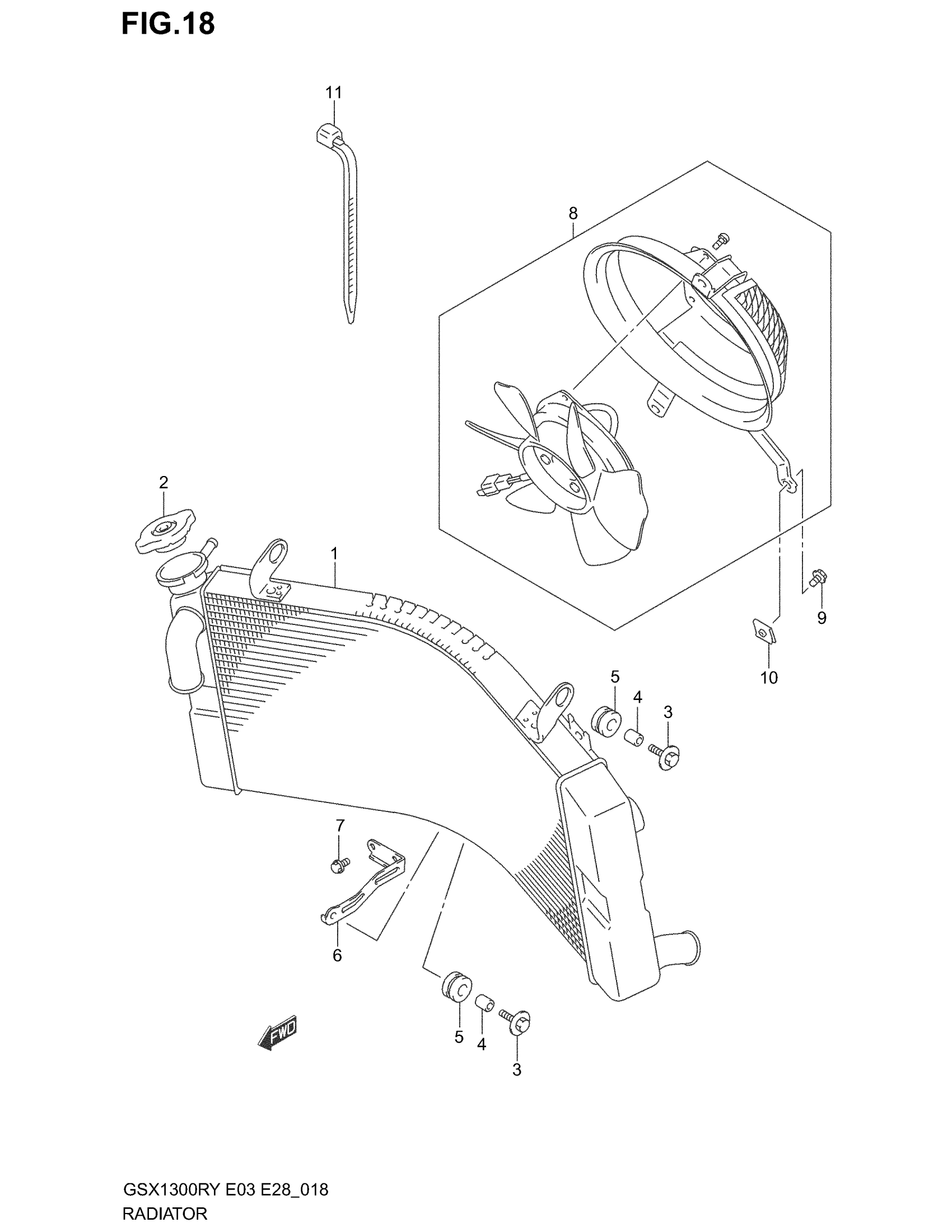

Suzuki GSX1300R (2003) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER | MODEL X/Y This part replaces 17710-24F00.

17710-24F01

Unavailable

1

RADIATOR ASSY, WATER | MODEL K1

17710-24F01

Unavailable

1

RADIATOR ASSY, WATER | MODEL K2/K3

17710-24F10

Unavailable

2

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$42.50

3

BOLT (6X25) | MODEL X/Y/K1

09116-06147

$3.20

3

BOLT (6X25) | MODEL K2/K3

09118-06097

$2.50

4

SPACER

09180-06290

$2.35

5

CUSHION

09320-10042

$3.12

6

BRACKET, RADIATOR LOWER

17750-24F00

$10.95

7

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

8

FAN ASSY, RADIATOR | MODEL X/Y This part replaces 17800-24F00.

17800-24F01

$698.62

8

FAN ASSY, RADIATOR | MODEL K1/K2/K3

17800-24F01

$698.62

9

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

10

NUT

09148-06015

$3.04

11

CLAMP, RADIATOR FAN LEAD

09407-18402

$2.19
