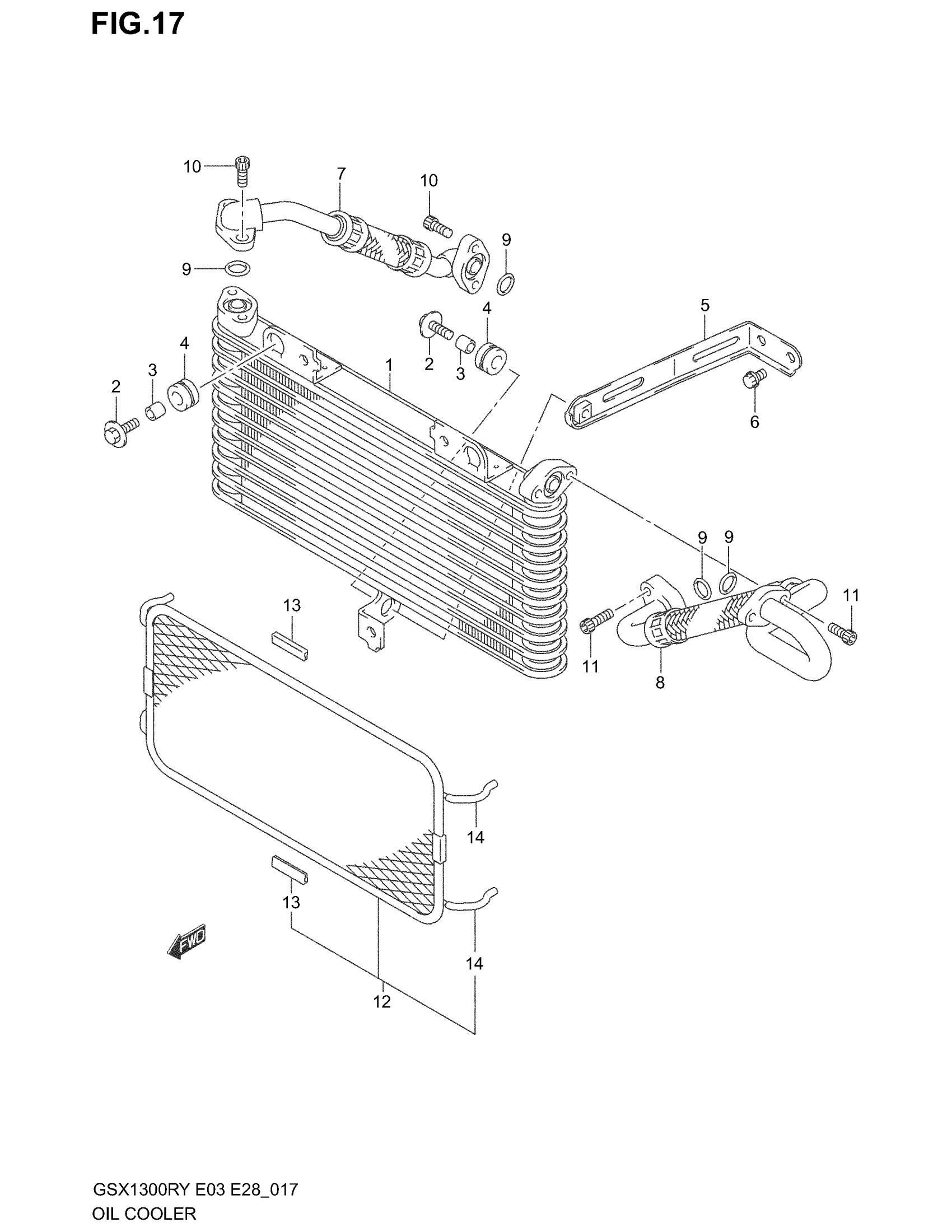

Suzuki GSX1300R (2003) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL | MODEL X/Y/K1 This part replaces 16600-24F01.

16600-24F10

Unavailable

1

COOLER ASSY, OIL | MODEL K2/K3 This part replaces 16600-24F02.

16600-24F10

Unavailable

2

BOLT (6X20) | MODEL X/Y/K1

09116-06115

$1.97

2

BOLT (6X20) | MODEL K2/K3

09116-06167

$2.19

3

SPACER

09180-06310

$1.91

4

CUSHION

09320-10501

$6.23

5

BRACKET, OIL COOLER

16640-24F00

$11.18

6

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

7

HOSE, OIL COOLER RH

16460-24F01

$179.12

8

HOSE, OIL COOLER LH

16470-24F02

$179.12

9

O RING (D:2.4,ID:11.8)

09280-12012

$4.64

10

BOLT | MODEL X This part replaces 07130-06163.

07130-0616B

$2.39

10

BOLT, RH (6X16) | MODEL Y/K1/K2/K3

09106-06096

$3.20

11

BOLT, FRONT BRG HOUSING | MODEL X This part replaces 07130-06203.

07130-0620B

$3.05

11

BOLT, LH (6X20) | MODEL Y/K1/K2/K3

09106-06097

$3.20

12

GUARD, OIL COOLER | MODEL X/Y/K1 This part replaces 16650-24F00.

16650-24F01

Unavailable

12

GUARD, OIL COOLER | MODEL K2/K3; Includes Item(s) 13 - 14

16650-24F01

Unavailable

13

PROTECTOR | MODEL X/Y/K1

16654-27E00

Unavailable

13

.PROTECTOR, CTR | MODEL K2/K3 This part replaces 17765-09F00.

17765-09F01

$2.92

14

.HOSE (3X5X600) | L:600!40 This part replaces 09352-30503-600.

09352-30504-600

$4.91
