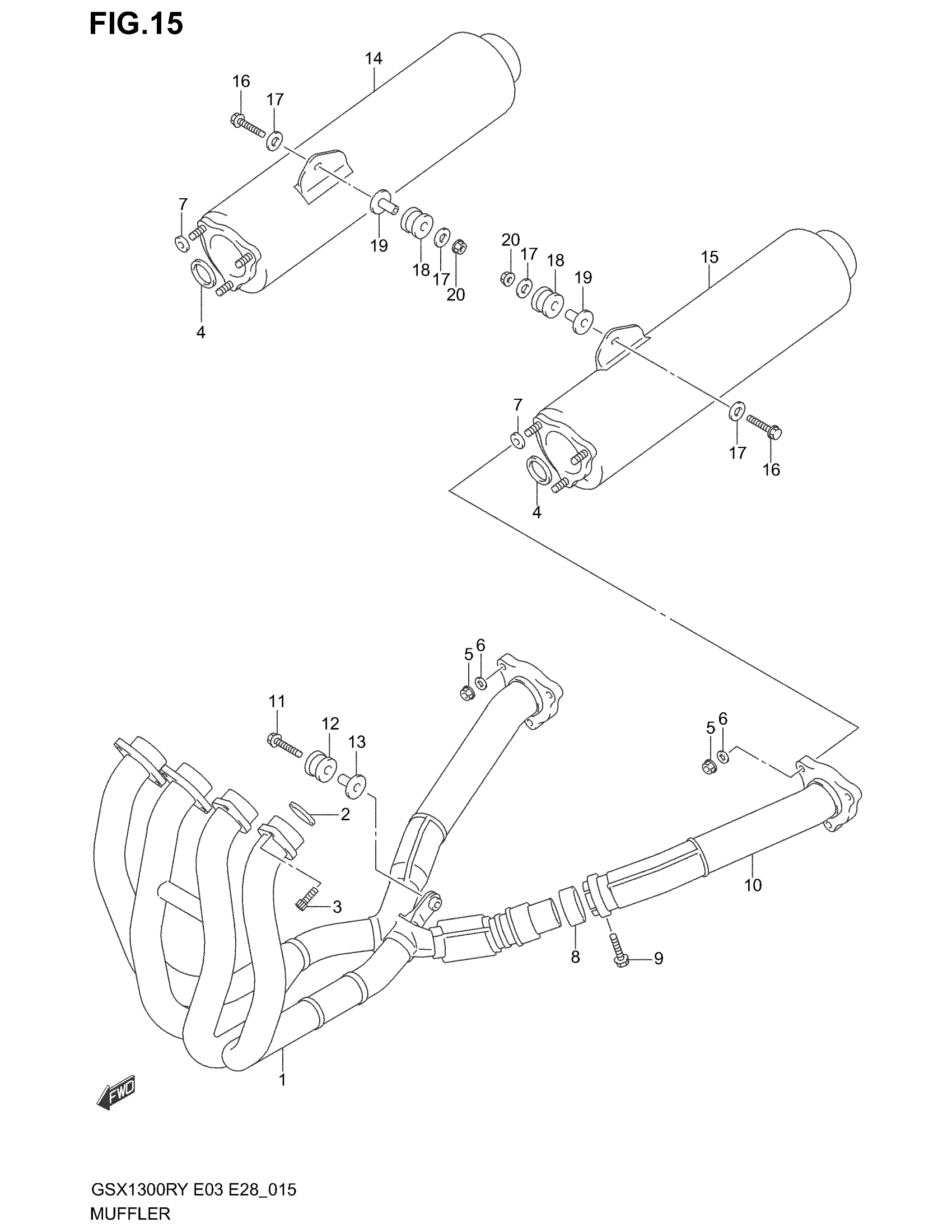

Suzuki GSX1300R (2003) MUFFLER (MODEL X/Y/K1) Diagram

#

Description
Price

1

PIPE, EXHAUST

14100-24F10

Unavailable

2

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

3

BOLT This part replaces 07130-08253.

07130-0825B

$3.37

4

GASKET

14181-33E00

$8.17

5

NUT | MODEL X This part replaces 09159-08115.

09159-08116

$9.00

5

NUT | MODEL Y/K1

09159-08116

$9.00

6

WASHER (8.5X18X2.0) | MODEL X This part replaces 09160-08114.

09160-08120

$2.19

6

WASHER (8.5X18X1.6) | MODEL Y/K1

09160-08059

$1.68

7

O RING (D:1.9,ID:7.8)

09280-08012

$3.68

8

CONNECTOR,MUFFLER This part replaces 14771-24F00.

14771-24F01

$31.05

9

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

10

PIPE, JOINT LH

14240-24F00

Unavailable

11

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$5.24

12

CUSHION

09320-12067

$15.83

13

SPACER

09180-08152

$5.83

14

BODY, MUFFLER RH

14310-24F00-H01

Unavailable

15

BODY, MUFFLER LH

14340-24F00-H01

$957.27

16

BOLT | MODEL X

01550-08457

$4.00

16

BOLT | MODEL Y/K1

09103-08358

$3.42

17

WASHER (8.5X28X1.6) | MODEL X

09160-08136

$2.50

17

WASHER (8.5X28X1.5) | MODEL Y/K1

09160-08142

$2.76

18

CUSHION

09320-12049

$10.68

19

SPACER

09180-08156

$6.70

20

NUT

09159-08034

$1.62
