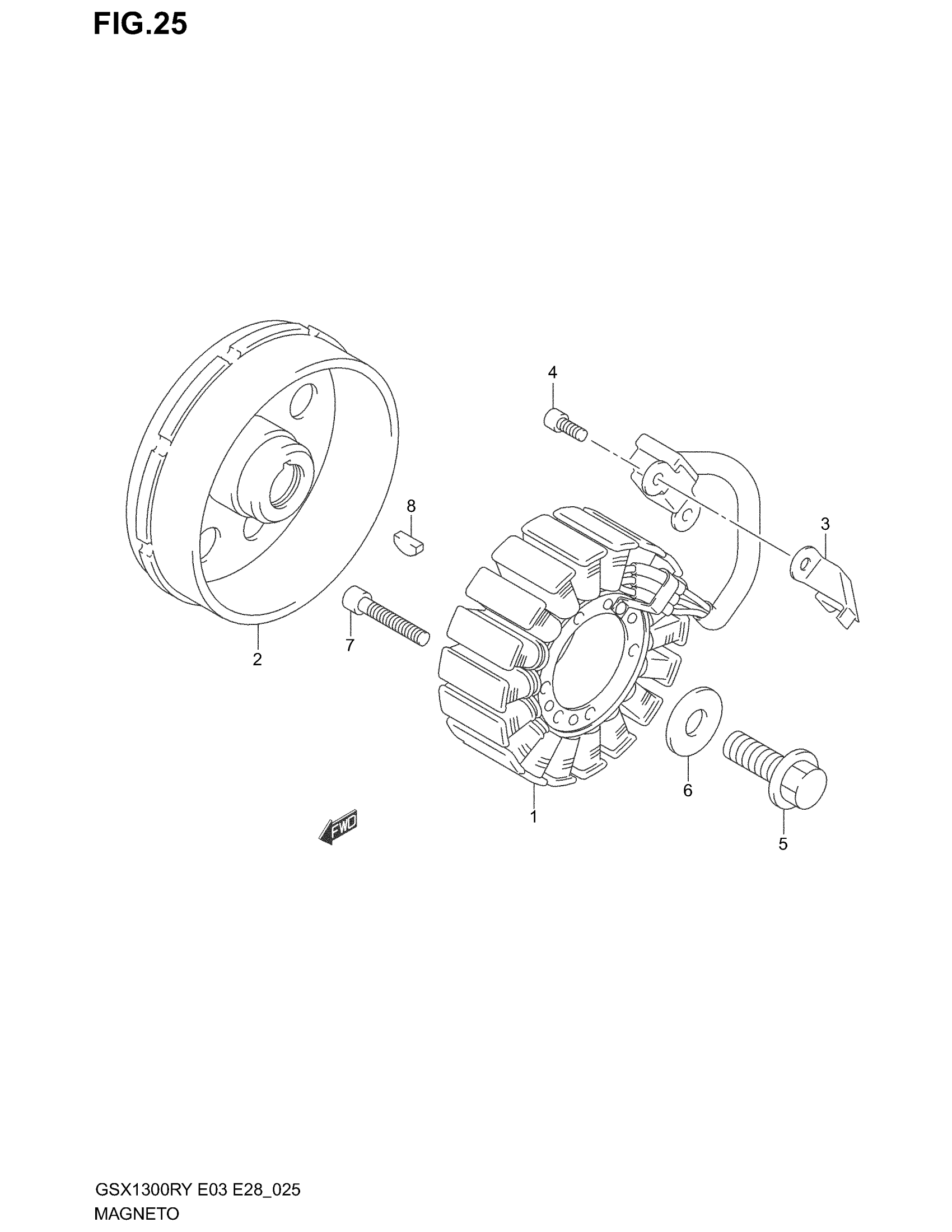

Suzuki GSX1300R (2003) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY | MODEL X/Y/K1

32101-24F00

Unavailable

1

STATOR ASSY | MODEL K2/K3

32101-24F10

$413.93

2

ROTOR ASSY | MODEL X/Y/K1

32102-24F00

Unavailable

2

ROTOR ASSY | MODEL K2/K3

32102-24F10

Unavailable

3

CLAMP, MAGNETO

32371-24F00

$6.30

4

BOLT This part replaces 07130-05123.

07130-0512B

$2.50

5

BOLT, MAGNETO ROTOR | 12X30

09103-12028

$6.70

6

WASHER (12X30X3.0) | 12X30X3

09160-12036

$3.93

7

BOLT This part replaces 07130-06353.

07130-0635B

$3.37

8

KEY

09420-04008

$3.42
