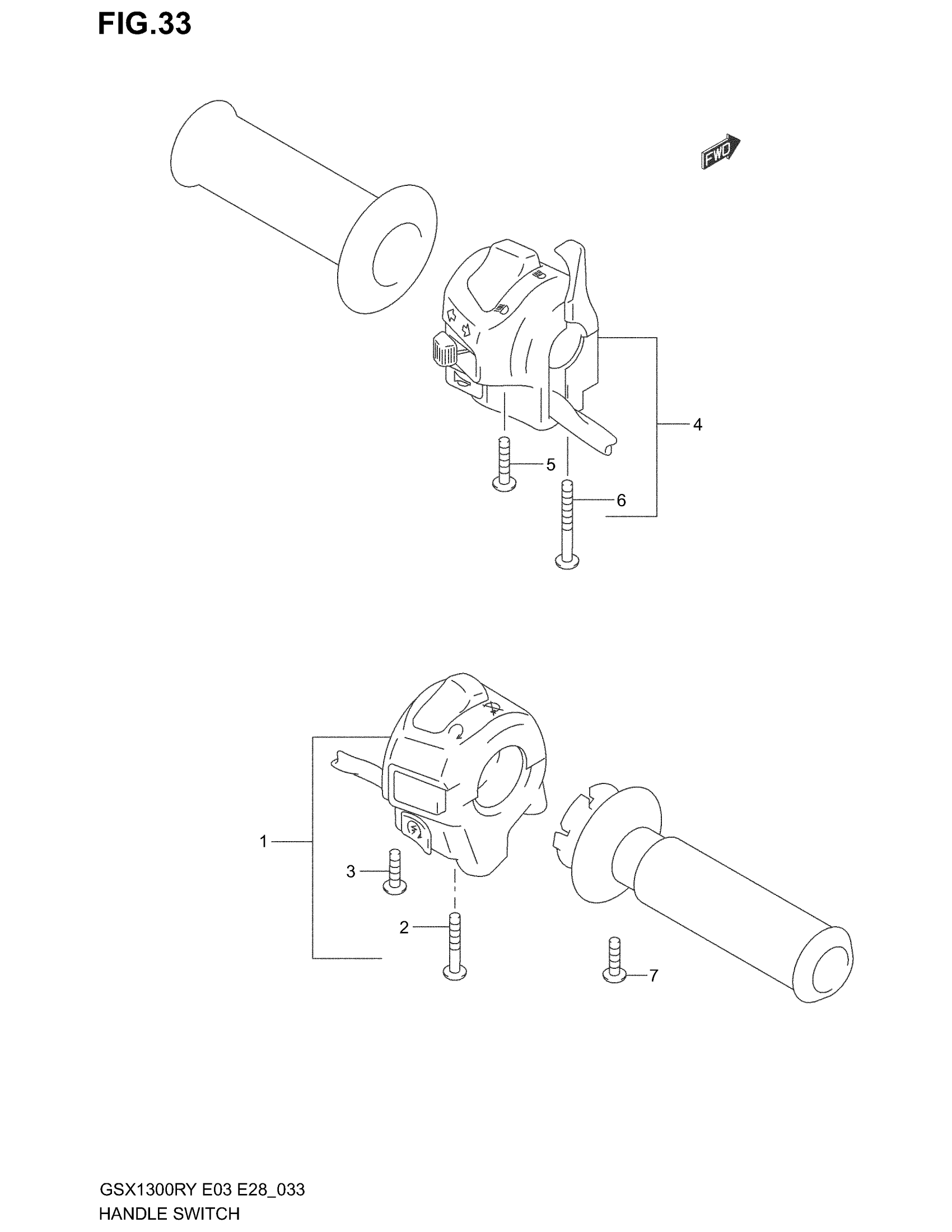

Suzuki GSX1300R (2003) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | Includes Item(s) 2 - 3

37200-33E31

Unavailable

2

.SCREW This part replaces 02112-05305.

02112-0530B

$1.49

3

SCREW This part replaces 02112-05505.

02112-0550B

$2.39

4

SWITCH ASSY, HANDLE LH | Includes Item(s) 5 - 6

37400-24F30

Unavailable

5

SCREW, PIVOT This part replaces 02112-05253.

02112-0525A

$1.49

6

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

7

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.49
