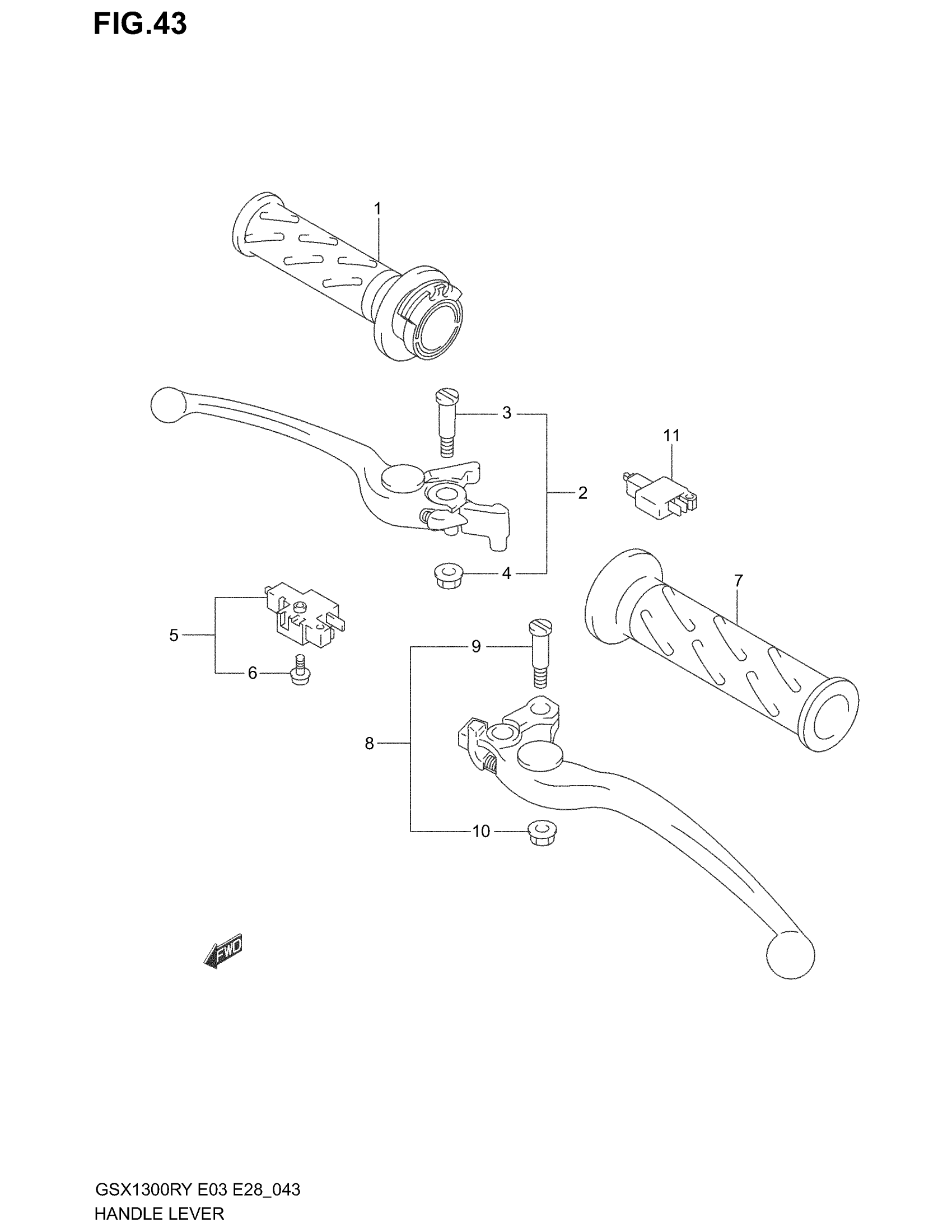

Suzuki GSX1300R (2003) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE This part replaces 57110-46E01.

57110-46E02

$27.81

2

LEVER ASSY, BRAKE | Includes Item(s) 3 - 4

57300-33E01

$44.31

3

BOLT, KNOCKER

57431-17C00

$6.80

4

NUT This part replaces 08316-10063.

08316-1006B

$2.57

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C00.

57460-14J02

$36.79

6

SCREW

57465-17C00

$2.37

7

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$13.93

8

LEVER ASSY,CLUT | Includes Item(s) 9 - 10 This part replaces 57500-24F00.

57500-24F01

$49.42

9

BOLT

57431-17C00

$6.80

10

NUT This part replaces 08316-10063.

08316-1006B

$2.57

11

SWITCH ASSY,CLUTCH

57560-02FA0

$22.55
