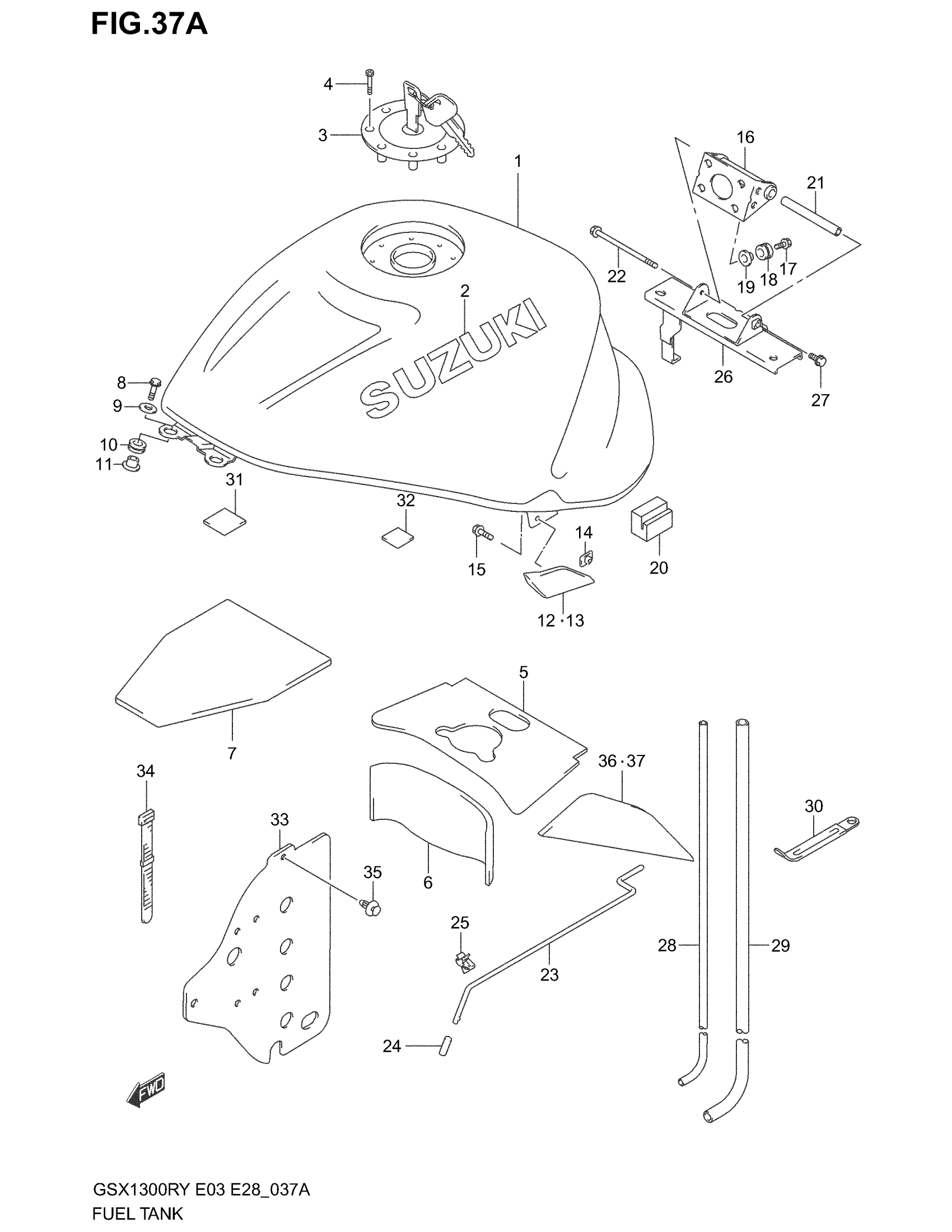

Suzuki GSX1300R (2003) FUEL TANK (MODEL Y) Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-24F02-CN4

Unavailable

1

TANK ASSY, FUEL

44100-24F02-CN5

Unavailable

1

TANK ASSY, FUEL | E33

44100-24F12-CN4

Unavailable

1

TANK ASSY, FUEL | E33

44100-24F12-CN5

Unavailable

1

TANK ASSY, FUEL | E28; Includes Item(s) 2 - 2

44100-24F02-M9T

Unavailable

2

EMBLEM (SILVER) | FOR CN4

68111-32B10-Y2D

Unavailable

2

EMBLEM (GRAY) | FOR CN5

68111-32B10-17U

Unavailable

2

EMBLEM (BLACK) | FOR M9T

68111-32B10-Y7L

Unavailable

3

CAP SET,FUEL TA This part replaces 44201-33810.

44201-33812

$254.92

3

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

4

BOLT

09106-05017

$2.83

5

SHIELD, HEAT NO.1

44191-24F01

Unavailable

6

SHIELD, HEAT NO.2

44192-24F00

Unavailable

7

SHIELD, HEAT NO.3

44193-24F00

Unavailable

8

BOLT, FRONT

09139-06029

$5.36

9

WASHER

09160-06036

$2.28

10

CUSHION

09320-09009

$4.64

11

SPACER

09169-06062

$2.50

12

COVER, SIDE RH

44533-24F00

$18.50

13

COVER, SIDE LH

44543-24F00

$18.50

14

PLATE, SIDE

44540-24F10

$12.40

15

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

16

BRACKET, TANK This part replaces 44560-24F00.

44560-24F01

Unavailable

17

BOLT

09116-06152

$2.36

18

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

19

SPACER

09169-06062

$2.50

20

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.87

21

SPACER

44561-33E10

Unavailable

22

BOLT This part replaces 01550-08953.

01550-0895A

$4.60

23

STAY

44574-33E01

$15.45

24

PLUG

09251-07003

$2.53

25

CLIP

09403-05310

$2.66

26

BRACKET, REAR

44550-24F00

Unavailable

27

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

28

HOSE,FUEL TANK This part replaces 44423-24F00.

44423-24F01

$10.22

29

HOSE(7X11X600) | L:600!500 This part replaces 09352-70113-600.

09352-70119-600

$10.40

30

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

31

CUSHION, FRONT

44534-24F00

$3.78

32

CUSHION This part replaces 44535-24F00.

44534-24F00

$3.78

33

SHEET, HEAT SHIELD RUBBER

44271-24F00

Unavailable

34

CLAMP

09407-18402

$2.19

35

CLIP (BLACK)

09409-06322-5PK

$3.10

36

SHIELD, TANK HEAT RH

44194-24F00

Unavailable

37

SHIELD, TANK HEAT LH

44195-24F00

Unavailable
