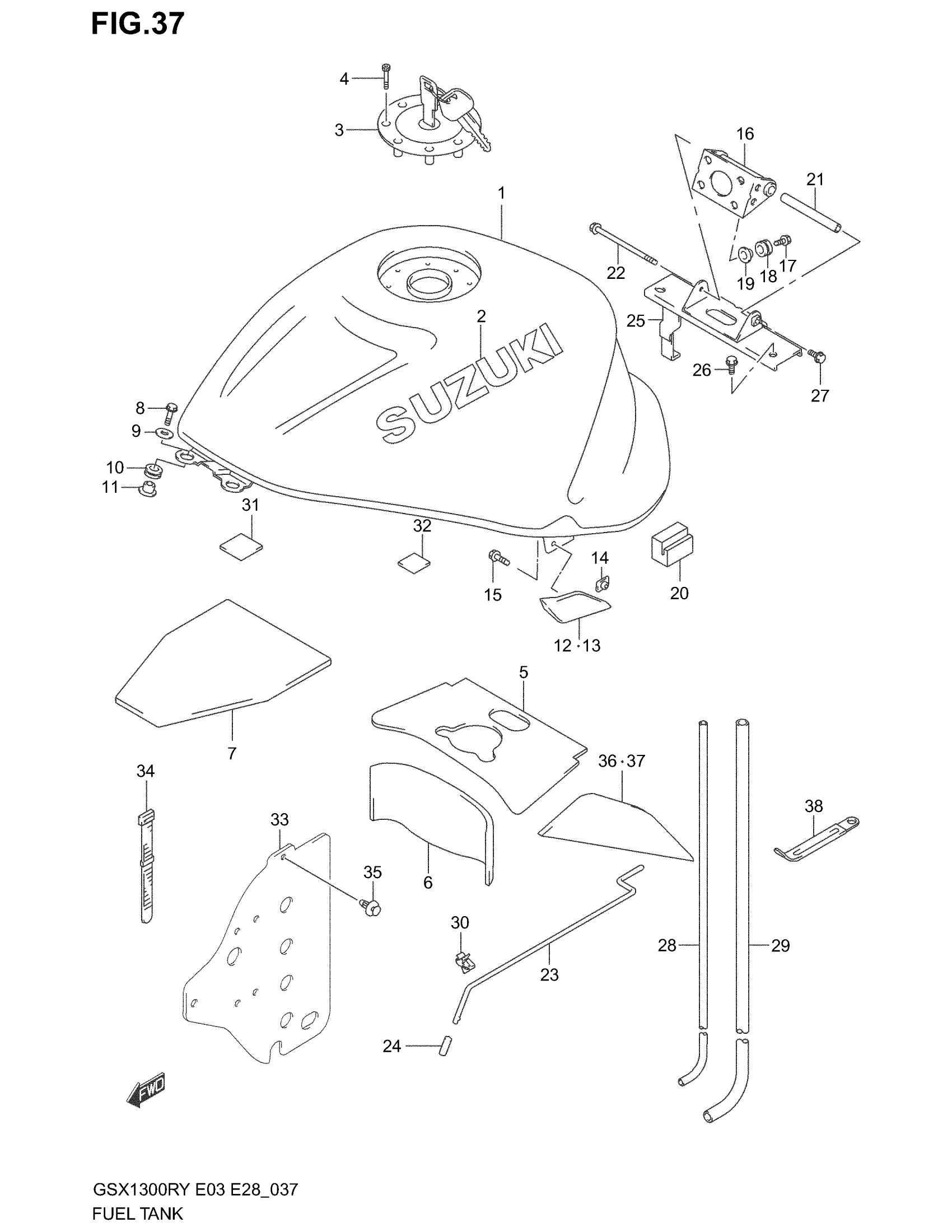

Suzuki GSX1300R (2003) FUEL TANK (MODEL X) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44100-24F00-M9S.

44100-24F02-M9S

Unavailable

1

TANK ASSY, FUEL This part replaces 44100-24F00-M9T.

44100-24F02-M9T

Unavailable

1

NO DESCRIPTION AVAILABLE | E33 This part replaces 44100-24F10-M9S.

44100-24F12-M9S

Unavailable

1

TANK ASSY,FUEL | E33; Includes Item(s) 2 - 2 This part replaces 44100-24F10-M9T.

44100-24F12-M9T

Unavailable

2

EMBLEM (BROWN) | FOR M9S

68111-32B10-29F

Unavailable

2

EMBLEM (BLACK) | FOR M9T

68111-32B10-Y7L

Unavailable

3

CAP SET,FUEL TA This part replaces 44201-33810.

44201-33812

$254.92

3

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

4

BOLT

09106-05017

$2.83

5

SHIELD, HEAT NO.1

44191-24F01

Unavailable

6

SHIELD, HEAT NO.2

44192-24F00

Unavailable

7

SHIELD, HEAT NO.3

44193-24F00

Unavailable

8

BOLT, FRONT

09139-06029

$5.36

9

WASHER

09160-06084

$1.78

10

CUSHION

09320-09009

$4.64

11

SPACER

09169-06062

$2.50

12

COVER, SIDE RH

44533-24F00

$18.50

13

COVER, SIDE LH

44543-24F00

$18.50

14

PLATE, SIDE

44540-24F10

$12.40

15

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

16

BRACKET, TANK This part replaces 44560-24F00.

44560-24F01

Unavailable

17

BOLT

09116-06152

$2.36

18

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

19

SPACER

09169-06062

$2.50

20

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.87

21

SPACER

44561-33E10

Unavailable

22

BOLT This part replaces 01550-08953.

01550-0895A

$4.60

23

STAY

44574-33E01

$15.45

24

PLUG

09251-07003

$2.53

25

BRACKET, REAR

44550-24F00

Unavailable

26

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

27

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

28

HOSE,FUEL TANK This part replaces 44423-24F00.

44423-24F01

$10.22

29

HOSE(7X11X600) | L:600!500 This part replaces 09352-70113-600.

09352-70119-600

$10.40

30

CLIP

09403-05310

$2.66

31

CUSHION, FRONT

44534-24F00

$3.78

32

CUSHION This part replaces 44535-24F00.

44534-24F00

$3.78

33

SHEET, HEAT SHIELD RUBBER

44271-24F00

Unavailable

34

CLAMP

09407-18402

$2.19

35

CLIP (BLACK)

09409-06322-5PK

$3.10

36

SHIELD, TANK HEAT RH

44194-24F00

Unavailable

37

SHIELD, TANK HEAT LH

44195-24F00

Unavailable

38

CLAMP This part replaces 09404-06432.

09404-06039

$1.74
