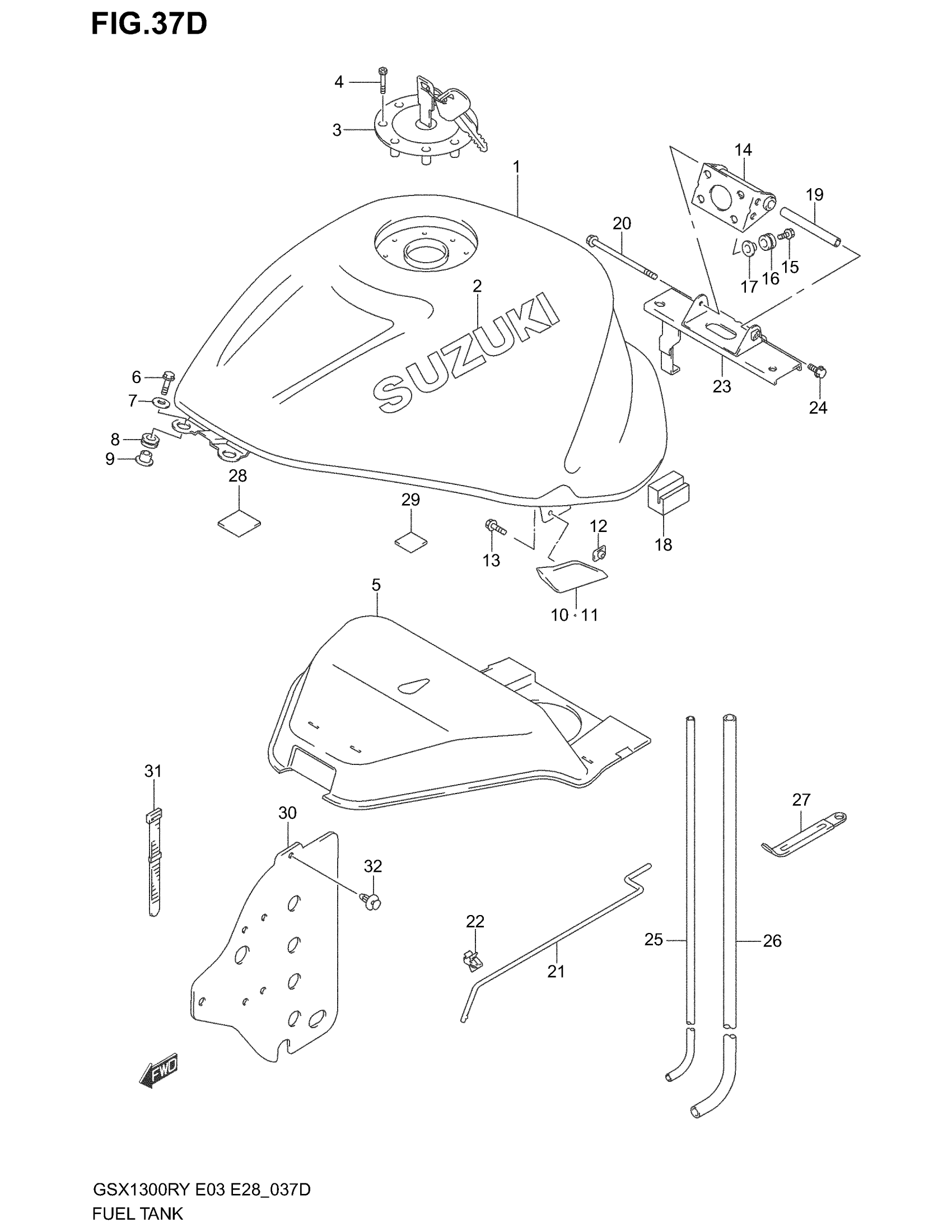

Suzuki GSX1300R (2003) FUEL TANK (MODEL K3) Diagram

#

Description
Price

1

TANK ASSY, FUEL | GSX1300RK3 E3,E28

44100-24FC0-CN5

Unavailable

1

TANK ASSY,FUEL( | GSX1300RK3 E3,E28 This part replaces 44100-24FC0-KT7.

44110-24F30-13L

Unavailable

1

TANK ASSY,FUEL( | GSX1300RK3 E3,E28 This part replaces 44100-24FC0-LA1.

44110-24F30-13L

Unavailable

1

TANK ASSY,FUEL( | GSX1300RZK3 E28 This part replaces 44100-24FA0-019.

44110-24F30-13L

Unavailable

1

TANK ASSY, FUEL | GSX1300RK3 E33

44100-24FD0-CN5

Unavailable

1

TANK ASSY, FUEL | GSX1300RK3 E33

44100-24FD0-KT7

Unavailable

1

TANK ASSY, FUEL | GSX1300RK3 E33

44100-24FD0-LA1

Unavailable

1

TANK ASSY, FUEL (ORANGE) | GSX1300RZK3 E3

44100-24FA0-YAV

Unavailable

1

TANK ASSY, FUEL (ORANGE) | GSX1300RZK3 E33; Includes Item(s) 2 - 2

44100-24FH0-YAV

Unavailable

2

EMBLEM (CHROME) | GSX1300RK2 FOR CN5,KT7

68111-24F00-0AT

$33.65

2

EMBLEM (BLACK) | GSX1300RK2 FOR LA1

68111-24F00-YN7

Unavailable

2

EMBLEM (BLACK) | GSX1300RZK3 E28

68111-24F00-YS7

Unavailable

2

EMBLEM (BLACK) | GSX1300RZK3 E3,E33

68111-24F00-YC8

Unavailable

3

CAP SET,FUEL TA | E3,E28 This part replaces 44201-33810.

44201-33812

$254.92

3

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

4

BOLT

09106-05017

$2.83

5

SHIELD, HEAT

44191-24F10

Unavailable

6

BOLT, FRONT

09139-06029

$5.36

7

WASHER

09160-06036

$2.28

8

CUSHION

09320-09009

$4.64

9

SPACER

09169-06062

$2.50

10

COVER, SIDE RH

44533-24F00

$18.50

11

COVER, SIDE LH

44543-24F00

$18.50

12

PLATE, SIDE

44540-24F10

$12.40

13

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

14

BRACKET, TANK This part replaces 44560-24F00.

44560-24F01

Unavailable

15

BOLT

09116-06152

$2.36

16

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

17

SPACER

09169-06062

$2.50

18

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.87

19

SPACER

44561-33E10

Unavailable

20

BOLT This part replaces 01550-08953.

01550-0895A

$4.60

21

STAY

44574-33E01

$15.45

22

CLIP

09403-05310

$2.66

23

BRACKET, REAR

44550-24F00

Unavailable

24

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

25

HOSE,FUEL TANK This part replaces 44423-24F00.

44423-24F01

$10.22

26

HOSE(7X11X600) | L:600!500 This part replaces 09352-70113-600.

09352-70119-600

$10.40

27

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

28

CUSHION, FRONT

44534-24F00

$3.78

29

CUSHION This part replaces 44535-24F00.

44534-24F00

$3.78

30

SHEET, HEAT SHIELD RUBBER

44271-24F00

Unavailable

31

CLAMP

09407-18402

$2.19

32

CLIP (BLACK)

09409-06322-5PK

$3.10
