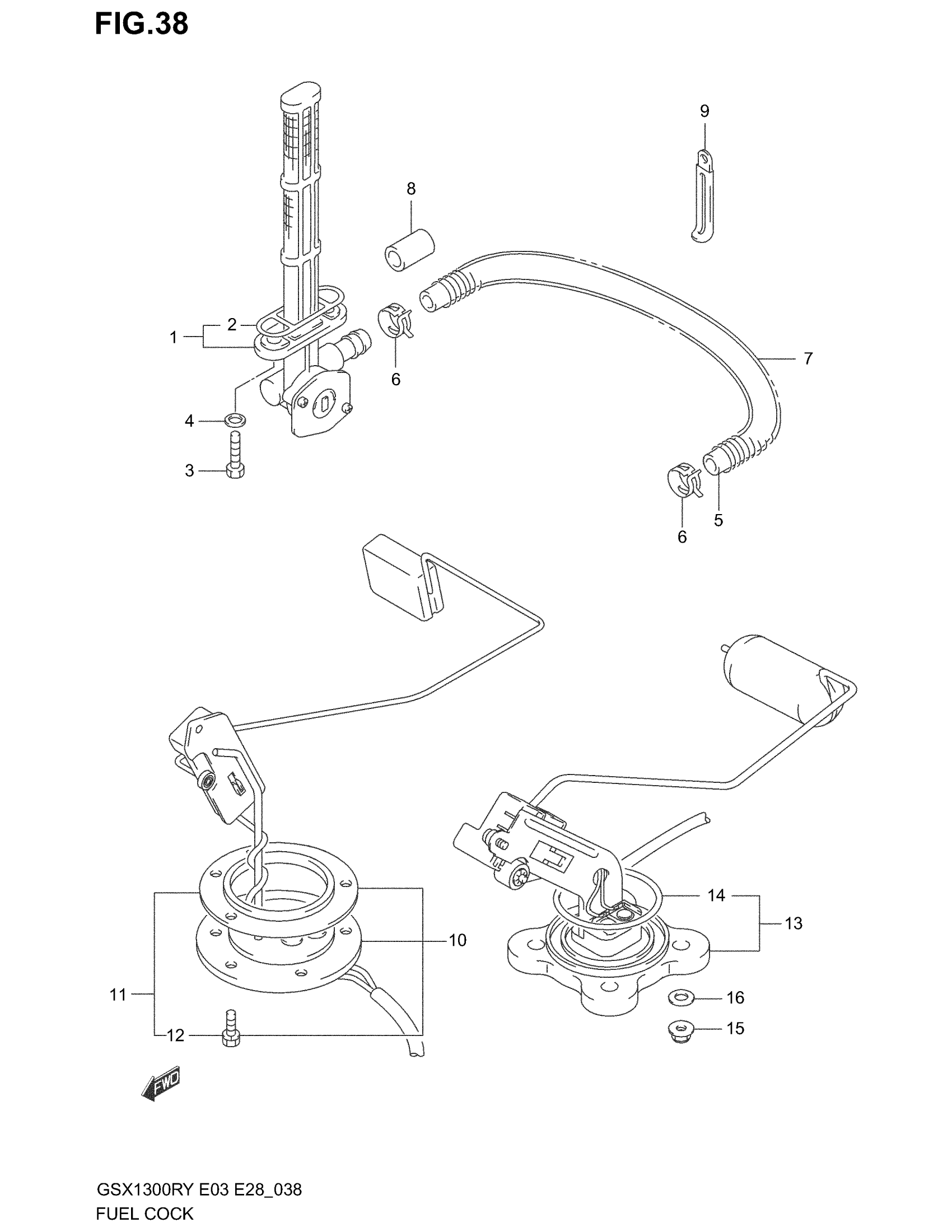

Suzuki GSX1300R (2003) FUEL COCK (MODEL X/Y) Diagram

#

Description
Price

1

COCK ASSY,FUEL | Includes Item(s) 2 This part replaces 44300-24F03.

44300-24F04

$85.16

2

O RING,JOINT This part replaces 44351-33E00.

44351-33E01

$3.88

3

BOLT

09128-06057

$1.65

4

GASKET

09168-06026

$3.10

5

HOSE, FUEL | MODEL X

44433-24F00

$14.65

5

HOSE, FUEL | MODEL Y This part replaces 44433-24F10.

44433-24F00

$14.65

6

CLIP

09401-13417

$2.26

7

SPRING This part replaces 09440-17020.

09440-17020-XC0

$8.01

8

PLUG This part replaces 09251-09005.

09251-09009

$3.93

9

CLAMP(L:80) | MODEL X This part replaces 09404-06434.

09404-06036

$1.74

10

GAUGE SET, FUEL LEVEL | MODEL X; Includes Item(s) 11 - 12

34800-24810

Unavailable

11

GASKET SET | MODEL X

34820-24810

Unavailable

12

BOLT,5X8 | MODEL X This part replaces 34826-24F01.

09106-05024-XC0

Unavailable

13

GAUGE SET, FUEL LEVEL | MODEL Y; Includes Item(s) 14

34800-24820

Unavailable

14

O RING | MODEL Y

34825-31F00

$4.09

15

.NUT | MODEL Y This part replaces 08319-21063.

08319-2106B

$2.32

16

WASHER | MODEL Y

09160-06128

$1.99
