Description

Price

1

NO DESCRIPTION AVAILABLE | GSX1300RX/Y/K1/K2 This part replaces 54111-33E10-35W.

54111-33E11-35W

Unavailable

1

WHEEL, FRONT (17XMT3.50) (BLACK) | GSX1300RZK2 GSX1300RK3 This part replaces 54111-33E10-019.

54111-33E11-019

$1,015.88

2

SPACER, HUB BEARING

54731-33E10

$41.11

3

BEARING (25X52X15)

09262-25061

$33.12

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5

AXLE, FRONT | MODEL X/Y/K1

54711-33E00

$156.07

5

AXLE, FRONT | MODEL K2/K3

54711-42F00

$156.07

6

NUT, AXLE

54712-33E00

$58.96

7

DISC, FRONT BRAKE (GOLD/BLACK) | GSX1300RX/Y/K1/K2

59210-33E50

$623.70

7

DISC,FRONT BRAK | GSX1300RZK2/RK3 This part replaces 59210-33EA0.

59210-33EA1

$601.23

8

BOLT (8X33) | MODEL X This part replaces 09106-08125.

09106-08148

$4.80

8

BOLT (8X33) | MODEL Y/K1/K2/K3

09106-08148

$4.80

9

TIRE, FRONT 120/70 ZR17(58W),BRIDGESTONE

55110-24F00

Unavailable

10

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

11

BALANCER (10G)

55411-00A00

$1.49

11

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05

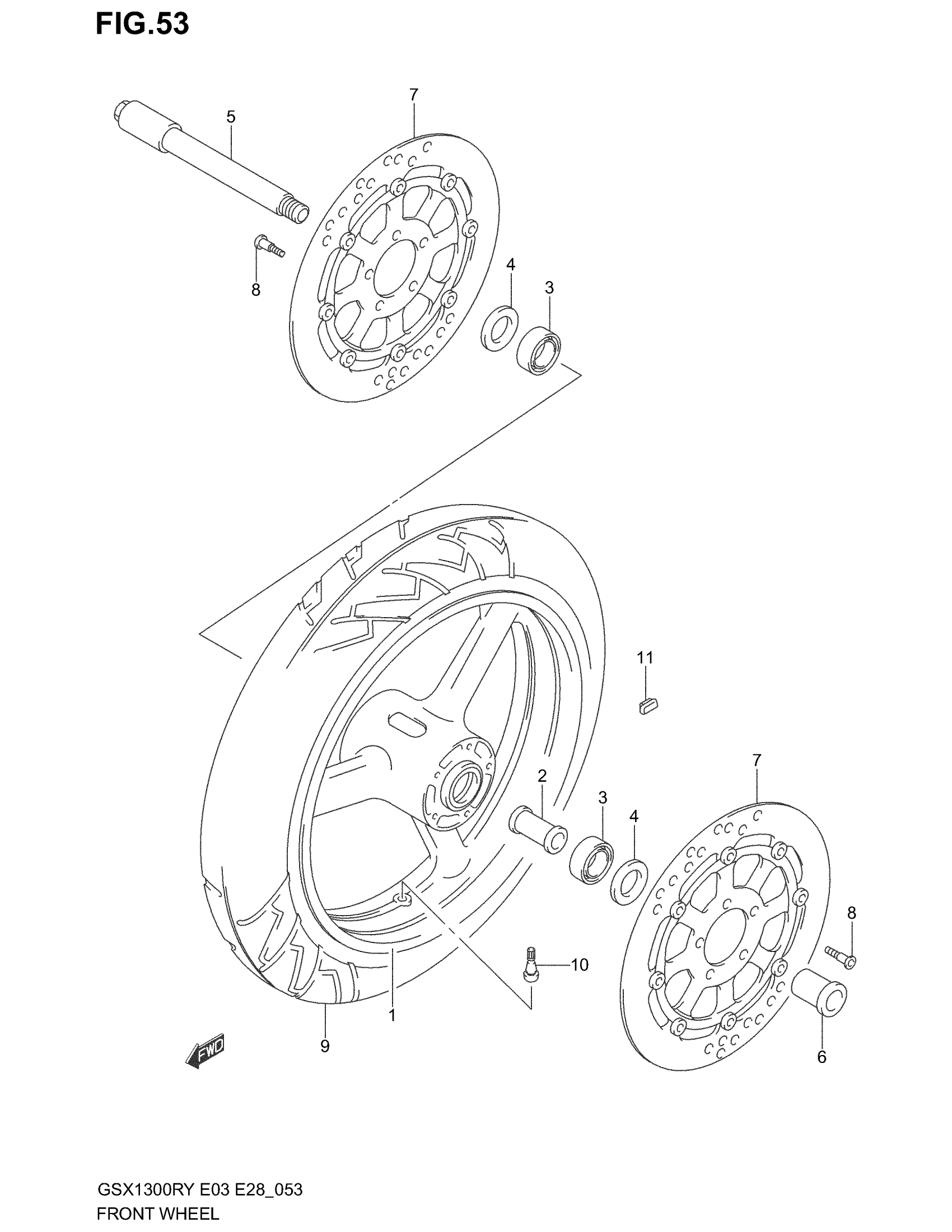

Suzuki GSX1300R (2003) FRONT WHEEL Diagram
