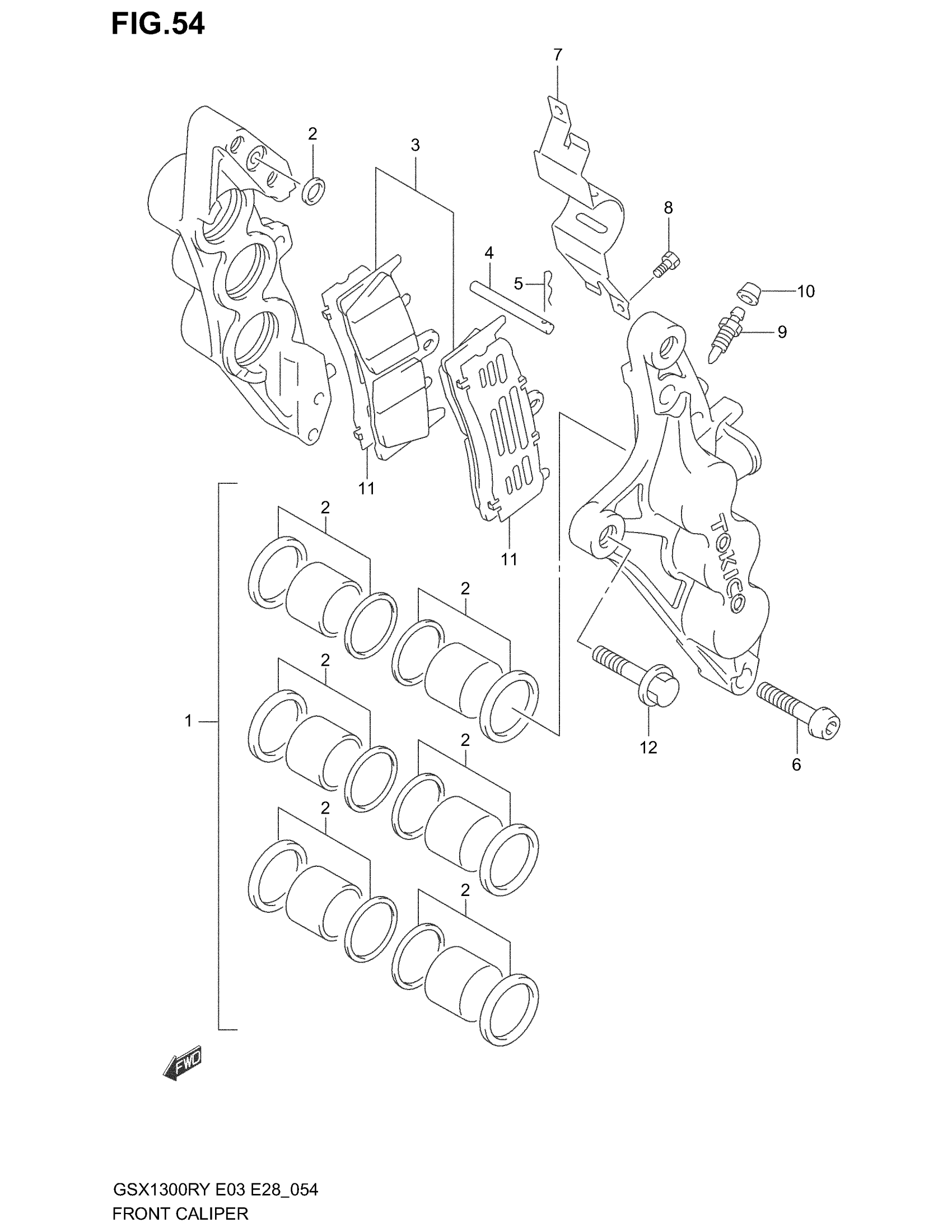

Suzuki GSX1300R (2003) FRONT CALIPERS (MODEL X/Y/K1/K2) Diagram

#

Description
Price

CALIPER ASSY, F | MODEL X This part replaces 59100-33E10.

59100-33E11-999

Unavailable

CALIPER ASSY,FR | MODEL X This part replaces 59300-33E10.

59300-33E11-999

Unavailable

CALIPER ASSY, F | MODEL Y/K1/K2 This part replaces 59100-33E11.

59100-33E11-999

Unavailable

CALIPER ASSY,FR | MODEL Y/K1/K2; Includes Item(s) 1 - 11 This part replaces 59300-33E11.

59300-33E11-999

Unavailable

1

PISTON SET This part replaces 59301-33860.

59301-33861

$142.58

2

SEAL SET, PISTON This part replaces 59300-33880.

59300-33881

$54.12

3

PAD SET

59301-33870

$67.57

4

PIN

69141-46E01

$8.73

5

.CLIP, PAD PIN

69142-45000

$4.34

6

BOLT | MODEL X

59145-33E00

$9.37

6

BOLT | MODEL Y/K1/K2 This part replaces 59145-33E10.

59145-33E00

$9.37

7

COVER

59151-46E00

$30.05

8

.SCREW

59153-22D00

$6.30

9

BLEEDER

59121-18410

$8.73

10

CAP

55156-66310

$5.17

11

SHIM

59171-33E00

Unavailable

12

BOLT (10X30) | MODEL X

09103-10296

$6.44

12

BOLT (10X30) | MODEL Y/K1/K2

09103-10320

$7.62
