2003 Suzuki GSX1300R Front Calipers Diagram

← All diagrams

Find the part on the Front Calipers diagram for your 2003 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

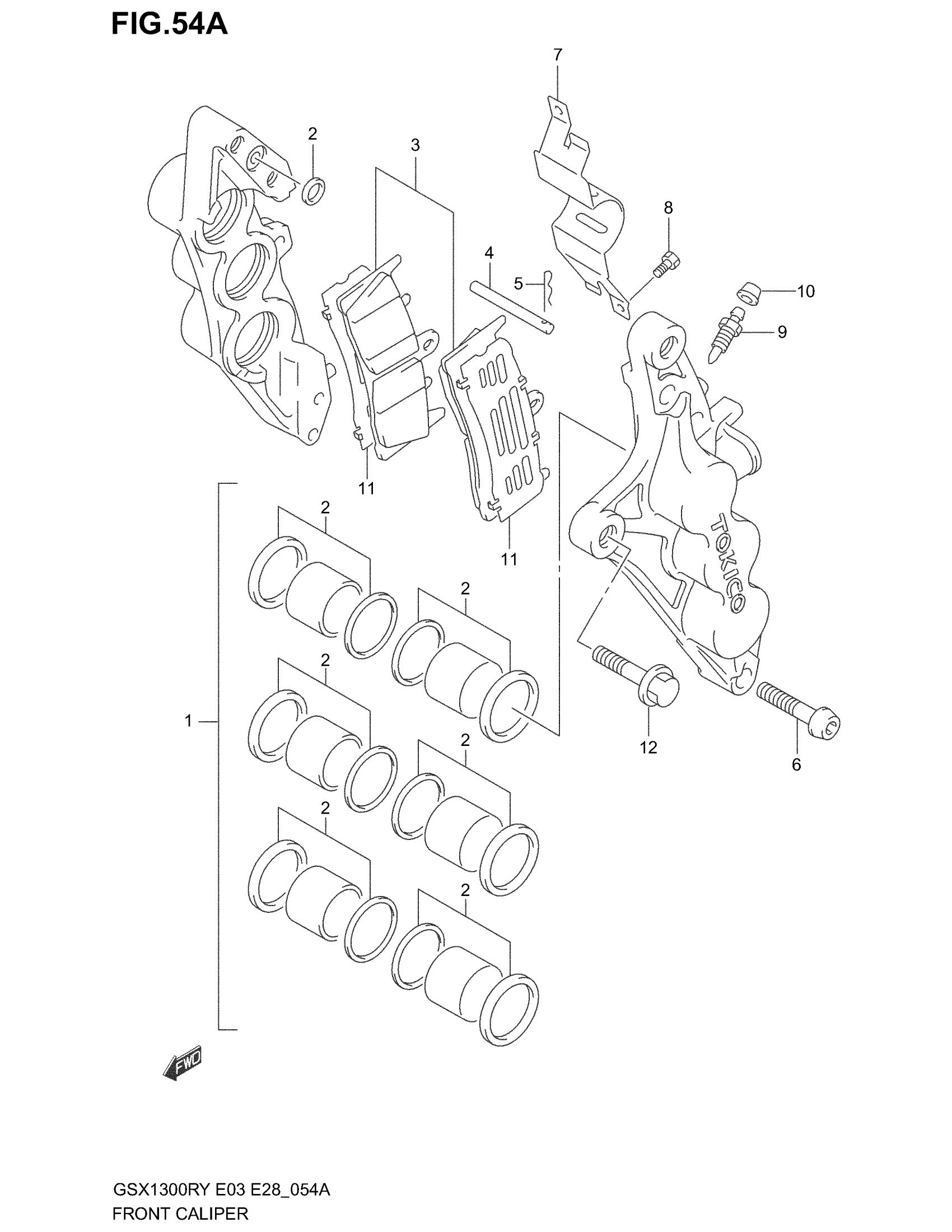

2003 Suzuki GSX1300R Front Calipers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY, FRONT LH | GSX1300RK3 This part replaces 59300-33E40.

59300-33E40-999

1
Out of stock

CALIPER ASSY, F | GSX1300RZK3 This part replaces 59100-33E11.

59100-33E11-999

1
Out of stock

CALIPER ASSY,FR | GSX1300RZK3; Includes Item(s) 1 - 11 This part replaces 59300-33E11.

59300-33E11-999

1
Out of stock

1

PISTON SET

59301-33861

2

$158.67

In stock

2

SEAL SET, PISTON

59300-33881

2

$53.96

In stock

3

PAD SET

59301-33870

2

$73.07

In stock

4

PIN

69141-46E01

2

$8.70

In stock

5

.CLIP, PAD PIN

69142-45000

2

$4.33

In stock

6

8

$10.58

In stock

7

COVER

59151-46E00

2

$33.92

In stock

8

.SCREW

59153-22D00

4

$7.12

In stock

9

BLEEDER

59121-18410

2

$8.70

In stock

10

CAP

55156-66310

2

$5.15

In stock

11

SHIM

59171-33E00

4
Out of stock

12

BOLT (10X30)

09103-10320

4

$7.52

In stock
