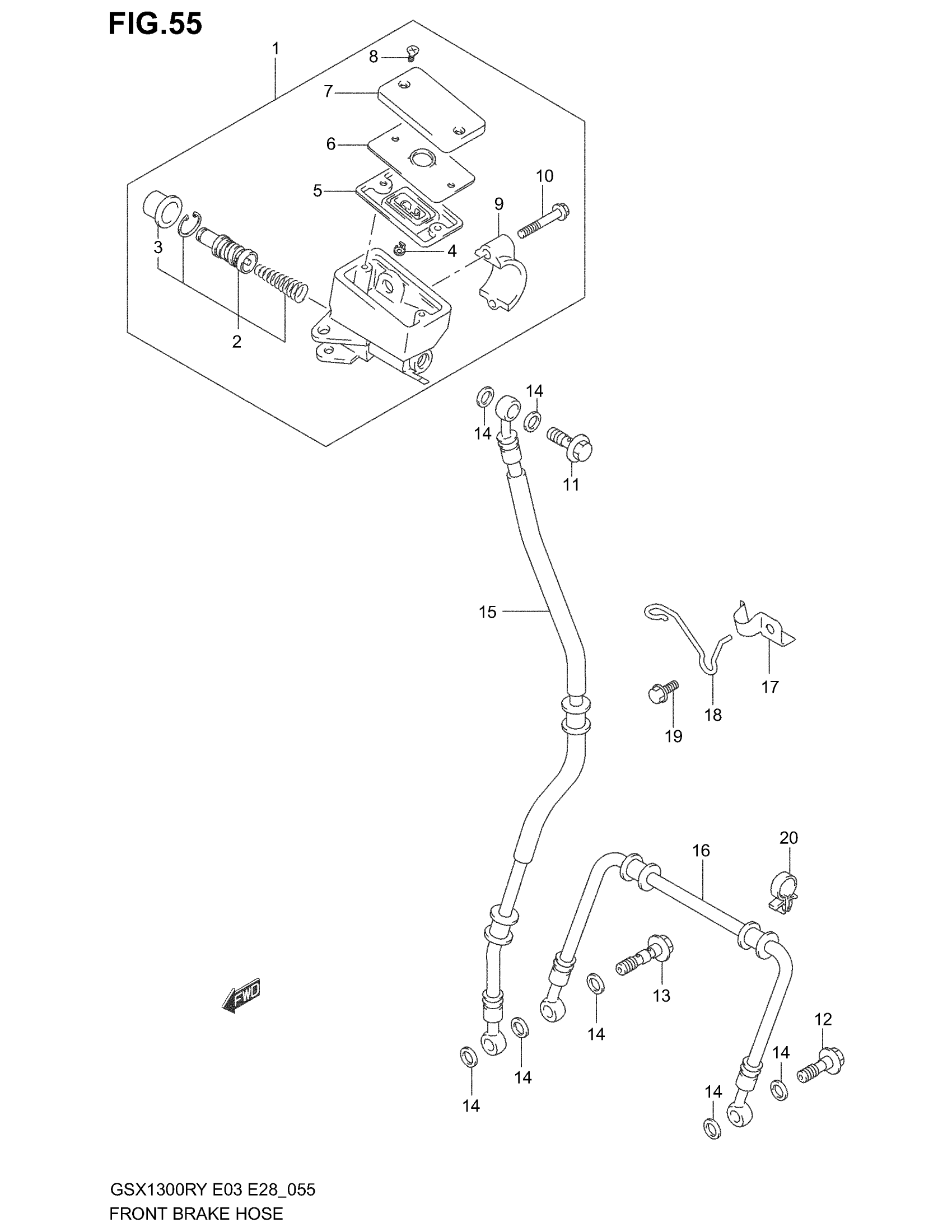

Suzuki GSX1300R (2003) FRONT BRAKE HOSE Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10

59600-24F00

$305.40

2

PISTON/CUP SET

59600-45860

$39.48

3

BOOT

59666-44300

$5.80

4

PROTECTOR

59664-48B00

$11.02

5

DIAPHRAGM

59667-49460

$9.78

6

PLATE

59668-41C00

$9.32

7

CAP

59669-41C00

$32.56

8

SCREW

69689-49300

$1.91

9

.HOLDER

59671-36500

$12.21

10

BOLT (6X22)

59675-02FA0

$3.82

11

UNION This part replaces 09360-10042.

09360-10062

$6.43

12

UNION This part replaces 09360-10042.

09360-10062

$6.43

13

UNION This part replaces 09360-10044.

09360-10064

$6.43

14

WASHER (10X15X1.5)

09161-10009

$1.84

15

HOSE,FR BRAKE N | MODEL X This part replaces 59480-24F00.

59480-24F03

$65.88

15

HOSE,FR BRAKE N | MODEL Y/K1/K2/K3 This part replaces 59480-24F01.

59480-24F03

$65.88

16

HOSE COMP,FRONT | MODEL X This part replaces 59240-24F00.

59240-24F02

$70.68

16

HOSE COMP,FRONT | MODEL Y/K1/K2/K3 This part replaces 59240-24F01.

59240-24F02

$70.68

17

CLAMP, BRAKE HOSE NO.1

59266-38D00

$14.02

18

GUIDE, BRAKE HOSE NO.1

59268-33E01

$12.97

19

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

20

CLAMP, BRAKE HOSE NO.2

09403-14304

$3.21
