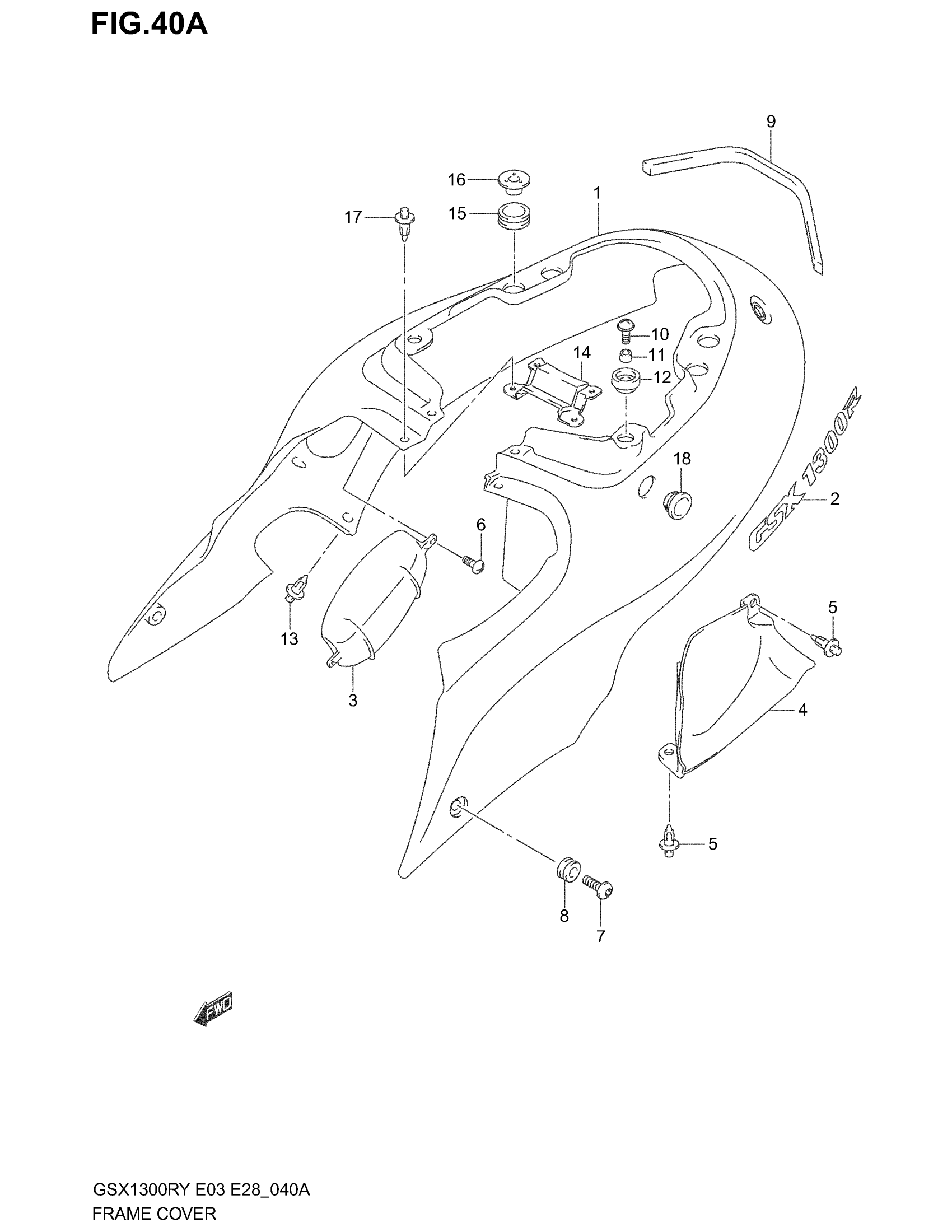

Suzuki GSX1300R (2003) FRAME COVER (MODEL Y) Diagram

#

Description
Price

1

COVER, FRAME (RED) | FOR CN4

47110-24F10-YC6

Unavailable

1

COVER, FRAME (BLUE) | FOR CN5

47110-24F10-1LF

Unavailable

1

COVER, FRAME (BLACK) | E28 FOR M9T; Includes Item(s) 2 - 2

47110-24F10-Y7L

Unavailable

2

EMBLEM | FOR YC6

68131-24F10-CN7

Unavailable

2

EMBLEM | FOR 1LF

68131-24F10-CN8

Unavailable

2

EMBLEM | FOR Y7L

68131-24F10-CN6

Unavailable

3

CAP, RH

47511-24F10

Unavailable

4

CAP, LH

47521-24F00

$38.72

5

CLIP, LH (BLACK)

09409-06314-5PK

$2.78

6

SCREW (4x12) This part replaces 03541-04123.

03541-0412A

$1.49

7

SCREW This part replaces 09139-06087.

09139-06126

$4.04

8

CUSHION

09320-09016

$1.97

9

CUSHION, REAR

47161-27E00

$10.32

10

SCREW, UPPER

09136-06105

$1.97

11

SPACER

09180-06288

$2.06

12

CUSHION

09320-10045

$3.76

13

CLIP, LOWER (BLACK)

09409-06314-5PK

$2.78

14

COVER, CENTER (RED) | FOR CN4

47311-24F00-YC6

Unavailable

14

COVER, CENTER (BLUE) | FOR CN5

47311-24F00-1LF

Unavailable

14

COVER, CENTER (BLACK) | E28 FOR M9T

47311-24F00-Y7L

Unavailable

15

CUSHION, UPPER REAR

47191-24F00

$5.17

16

.WASHER,FRAME COVER This part replaces 47190-24F00.

47190-24F01

$9.92

17

CLIP (BLACK)

09409-06314-5PK

$2.78

18

CUSHION, CENTER

47191-24F20

$7.22
