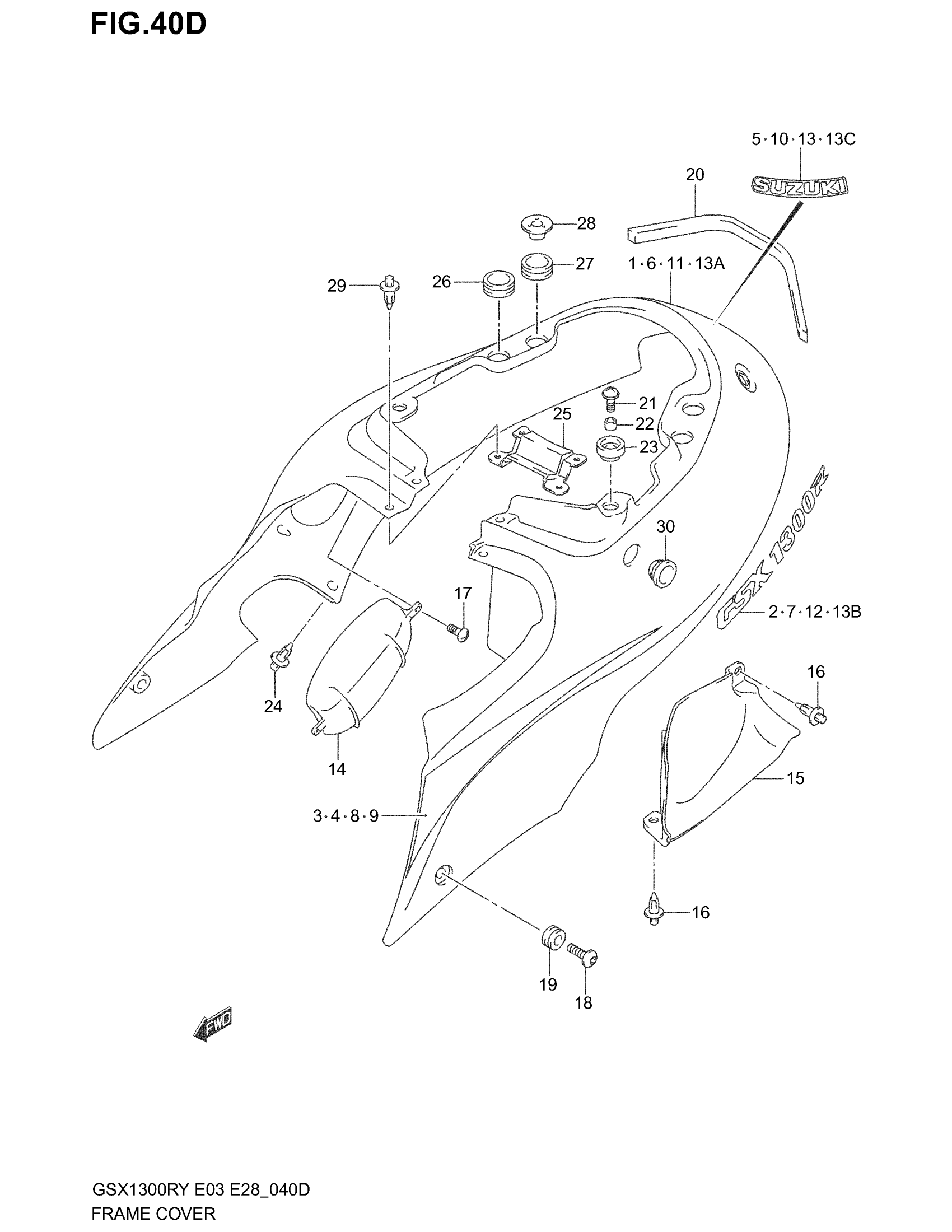

Suzuki GSX1300R (2003) FRAME COVER (MODEL K3) Diagram

#

Description
Price

1

COVER, FRAME (SILVER) | GSX1300RK3 FOR CN5

47110-24F60-YD8

Unavailable

1

COVER, FRAME (GRAY) | GSX1300RK3 FOR KT7; Includes Item(s) 2 - 5

47110-24F60-YU8

Unavailable

2

EMBLEM | FOR YD8

68131-24F30-LK7

Unavailable

2

EMBLEM | FOR YU8

68131-24F30-LK8

Unavailable

3

TAPE, RH (BLUE) | FOR YD8

68135-24F00-1LF

Unavailable

3

TAPE, RH (BLACK) | FOR YU8

68135-24F00-33J

Unavailable

4

TAPE, LH (BLUE) | FOR YD8

65145-24F00-1LF

Unavailable

4

TAPE, LH (BLACK) | FOR YU8

68145-24F00-33J

Unavailable

5

EMBLEM, REAR (BLUE) | FOR YD8

68641-19F00-1LF

Unavailable

5

.EMBLEM,"SUZUKI" (BLACK) | FOR YU8 This part replaces 68641-19F00-33J.

68281-24F11-019

$10.89

6

COVER, FRAME (SILVER) | GSX1300RK3 FOR LA1; Includes Item(s) 7 - 10

47110-24F70-YD8

Unavailable

7

EMBLEM

68131-24F30-LK9

Unavailable

8

TAPE, RH (GRAY)

68135-24F00-YU8

Unavailable

9

TAPE, LH (GRAY)

68145-24F00-YU8

Unavailable

10

EMBLEM, REAR

68641-14F30-GW5

Unavailable

11

COVER, FRAME (BLACK) | GSX1300RZK3 E28 FOR 019; Includes Item(s) 12 - 13

47110-24F40-019

Unavailable

12

EMBLEM | GSX1300RZK3 E28

68131-24F20-JB6

Unavailable

13

EMBLEM, REAR | GSX1300RZK3 E28

68641-24F00-JB5

$16.48

13A

COVER, FRAME (ORANGE) | GSX1300RZK3 E3,E33 FOR YAV; Includes Item(s) 13B - 13C

47110-24F20-YAV

Unavailable

13B

EMBLEM | GSX1300RZK3 E3,E33

68131-24F10-NH3

Unavailable

13C

EMBLEM, REAR | GSX1300RZK3 E3,E33

68641-14F30-MZ6

Unavailable

14

COVER, FRAME HEAD RH

47511-24F10

Unavailable

15

COVER, FRAME HEAD LH

47521-24F00

$38.72

16

CLIP, LH (BLACK)

09409-06314-5PK

$2.78

17

SCREW (4x12) This part replaces 03541-04123.

03541-0412A

$1.49

18

SCREW This part replaces 09139-06087.

09139-06126

$4.04

19

CUSHION

09320-09016

$1.97

20

CUSHION, REAR

47161-27E00

$10.32

21

SCREW, UPPER

09136-06105

$1.97

22

SPACER

09180-06288

$2.06

23

CUSHION

09320-10045

$3.76

24

CLIP, LOWER (BLACK)

09409-06314-5PK

$2.78

25

COVER,FRAME CEN | GSX1300RK3 FOR CN5,LA1 This part replaces 47311-24F00-YD8.

47311-24F00

$43.78

25

COVER, CENTER (GRAY) | GSX1300RK3 FOR KT7

47311-24F00-YU8

Unavailable

25

COVER, CENTER (BLACK) | GSX1300RZK3 E28 FOR 019

47311-24F10-019

Unavailable

25

COVER, CENTER (ORANGE) | GSX1300RZK3 E3,E33 FOR YAV

47311-24F00-YAV

Unavailable

26

CUSHION, UPPER FRONT

47191-24F00

$5.17

27

CUSHION, PILLION HANDLE REAR

47191-24F30

$5.36

28

WASHER,FRAME COVER This part replaces 47190-24F20.

47190-24F21

$9.94

29

CLIP (BLACK)

09409-06314-5PK

$2.78

30

CUSHION, CENTER

47191-24F20

$7.22
