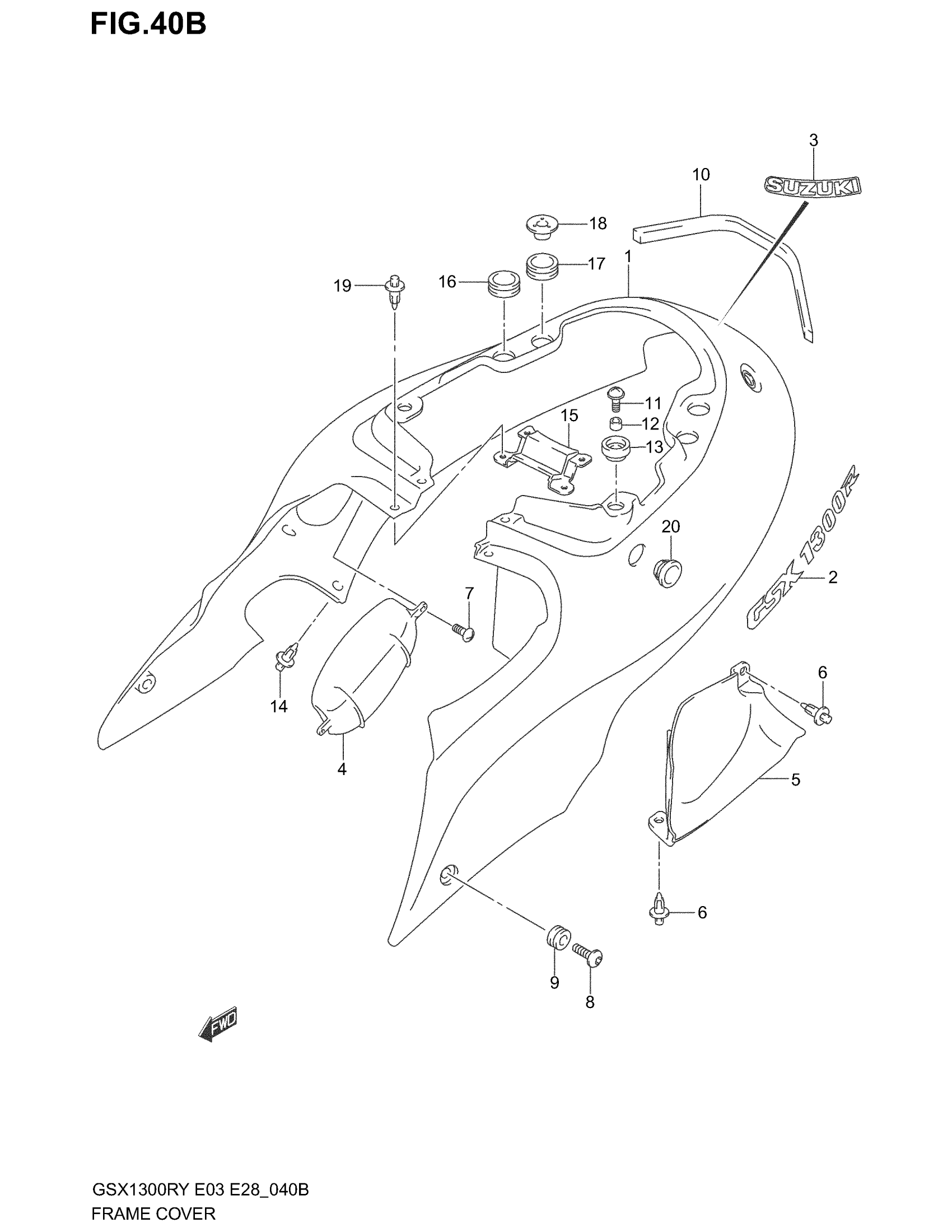

Suzuki GSX1300R (2003) FRAME COVER (MODEL K1) Diagram

#

Description
Price

1

COVER, FRAME (BLUE) | FOR CN5

47110-24F20-1LF

Unavailable

1

COVER,FRAME PRI | FOR FH5 This part replaces 47110-24F20-33J.

47111-24F01

Unavailable

1

COVER, FRAME (RED) | FOR FH6; Includes Item(s) 2 - 3

47110-24F20-YC6

Unavailable

2

EMBLEM | FOR 1LF

68131-24F10-CN8

Unavailable

2

EMBLEM | FOR 33J

68131-24F10-FJ7

Unavailable

2

EMBLEM | FOR YC6

68131-24F10-FJ8

Unavailable

3

EMBLEM, "SUZUKI" | FOR 1LF

68641-14F30-M5P

Unavailable

3

EMBLEM, "SUZUKI" | FOR 33J

68641-14F30-F3H

Unavailable

3

EMBLEM, "SUZUKI" | FOR YC6

68641-14F30-FJ6

Unavailable

4

CAP, RH

47511-24F10

Unavailable

5

CAP, LH

47521-24F00

$38.72

6

CLIP, LH (BLACK)

09409-06314-5PK

$2.78

7

SCREW (4x12) This part replaces 03541-04123.

03541-0412A

$1.49

8

SCREW This part replaces 09139-06087.

09139-06126

$4.04

9

CUSHION

09320-09016

$1.97

10

CUSHION, REAR

47161-27E00

$10.32

11

SCREW, UPPER

09136-06105

$1.97

12

SPACER

09180-06288

$2.06

13

CUSHION

09320-10045

$3.76

14

CLIP, LOWER (BLACK)

09409-06314-5PK

$2.78

15

COVER, CENTER (BLUE) | FOR CN5

47311-24F00-1LF

Unavailable

15

COVER, CENTER (BLACK) | FOR FH5

47311-24F00-33J

Unavailable

15

COVER, CENTER (RED) | FOR FH6

47311-24F00-YC6

Unavailable

16

CUSHION, UPPER FRONT

47191-24F00

$5.17

17

CUSHION, PILLION RIDER HDL, RR

47191-24F30

$5.36

18

WASHER,FRAME COVER This part replaces 47190-24F20.

47190-24F21

$9.94

19

CLIP (BLACK)

09409-06314-5PK

$2.78

20

CUSHION, CENTER

47191-24F20

$7.22
