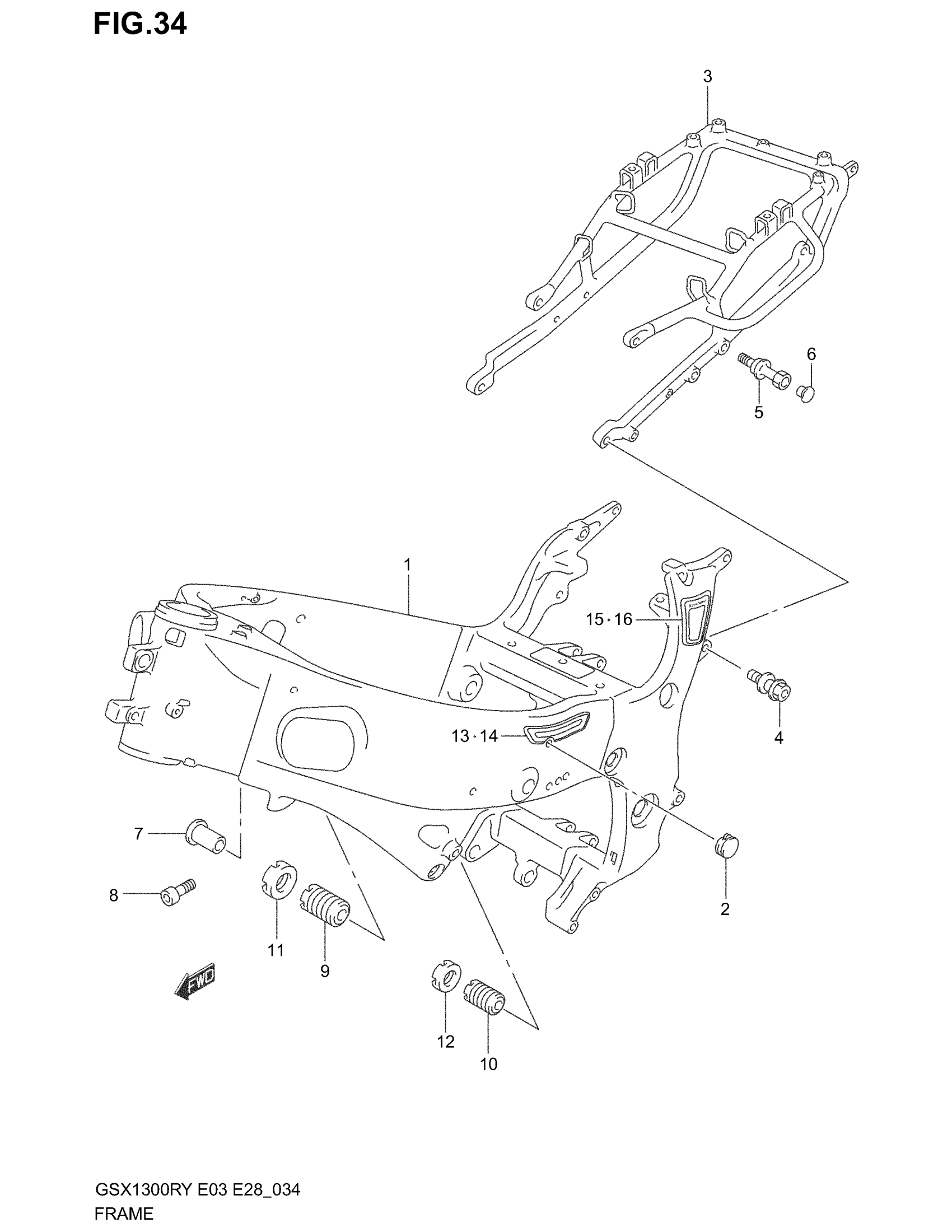

Suzuki GSX1300R (2003) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 41100-24F00.

41100-24F04

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL Y This part replaces 41100-24F01.

41100-24F04

Unavailable

1

NO DESCRIPTION AVAILABLE | GSX1300R K1/K2/K3 This part replaces 41100-24F02.

41100-24F04

Unavailable

1

FRAME (BLACK) | GSX1300RZK2 E3,E33

41100-24F12-291

Unavailable

1

NO DESCRIPTION AVAILABLE | GSX1300RZK3 E3,E28,E33 This part replaces 41100-24F20-291.

41100-24F21-291

Unavailable

2

CAP,TANK RAIL This part replaces 43585-33E00.

43585-33E01

$4.25

3

RAIL, SEAT | MODEL X/Y

41200-24F00

Unavailable

3

RAIL,SEAT | MODEL K1/K2/K3 This part replaces 41200-24F10.

41200-24F11

$1,070.07

4

BOLT, SEAT RAIL

09103-10296

$6.44

5

HOOK, SEAT RAIL | MODEL X This part replaces 46315-24F00.

46315-24F01

$47.00

5

HOOK, SEAT RAIL | MODEL Y/K1/K2/K3

46315-24F01

$47.00

6

CAP

09250-05009

$2.19

7

SPACER, ENGINE MOUNT

41911-33E10

$26.20

8

BOLT, SPACER

09106-08105

$3.78

9

BOLT, CRANKCASE ADJUST | MODEL X This part replaces 41921-19F10.

41921-19F11

$56.32

9

BOLT, CRANKCASE ADJUST | MODEL Y/K1/K2/K3

41921-19F11

$56.32

10

BOLT, CRANKCASE ADJUST

41921-33E11

$49.42

11

NUT,CRANK CASE ADJUST | MODEL X This part replaces 41922-19F10.

41922-19F12

$29.75

11

NUT,CRANK CASE ADJUST | MODEL Y/K1/K2/K3 This part replaces 41922-19F11.

41922-19F12

$29.75

12

NUT,CRANK CASE ADJUST This part replaces 41922-33E10.

41922-33E30

$21.97

13

PAD, TANK RAIL RH

41860-24F00

$43.93

14

PAD, TANK RAIL LH

41960-24F00

Unavailable

15

EMBLEM, FRAME BODY RH | OPT

41850-24F00

Unavailable

16

EMBLEM, FRAME BODY LH | OPT

41950-24F00

Unavailable
