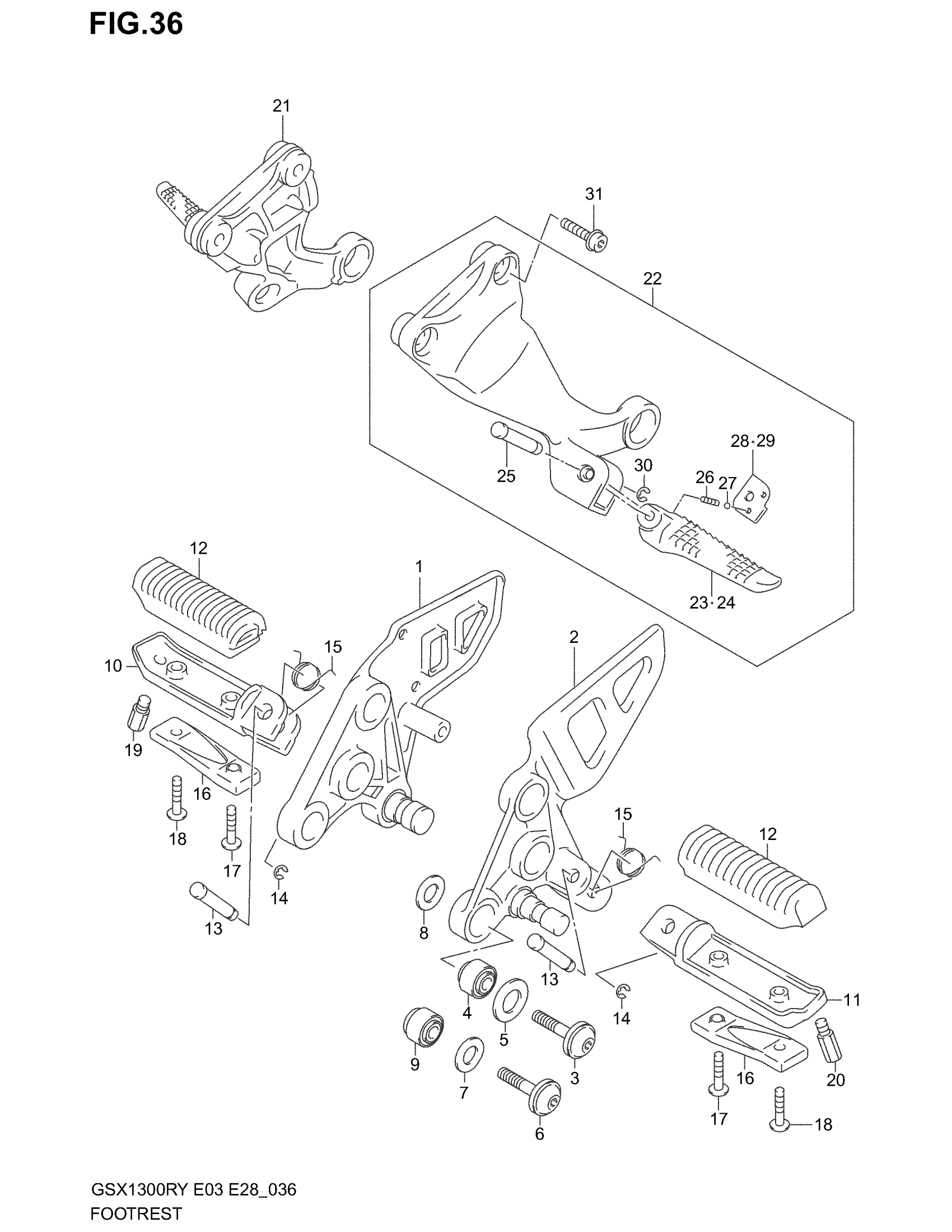

Suzuki GSX1300R (2003) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43510-24F00

$211.72

2

BRACKET, FRONT FOOTREST LH

43521-24F00

Unavailable

3

BOLT, MUFFLER SUPPORT FRONT | MODEL X This part replaces 09106-08145.

09106-08147

$6.25

4

BUSH | MODEL X

09319-08036

$25.12

5

WASHER | MODEL X

09161-12010

$4.50

6

BOLT, BRACKET | MODEL Y/K1/K2/K3

09106-08147

$6.25

7

WASHER, OUTER | MODEL Y/K1/K2/K3

09161-13004

$3.91

8

WASHER, INNER | MODEL Y/K1/K2/K3

09161-17002

$4.60

9

BUSH | MODEL Y/K1/K2/K3

09319-08045

$19.90

10

BAR, FRONT FOOTREST RH

43531-24F00

$61.85

11

BAR, FRONT FOOTREST LH

43541-24F00

$61.85

12

RUBBER

43550-24F00

$21.49

13

PIN

09208-08016

$3.61

14

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

15

SPRING

09448-18022

$3.79

16

BALANCER | MODEL X/Y

43536-31E01

$35.83

16

BALANCER | MODEL K1/K2/K3

43536-31E20

$44.07

17

SCREW | MODEL X/Y This part replaces 02142-05253.

02142-0525B

$2.34

17

SCREW | MODEL K1/K2/K3 This part replaces 02142-05353.

02142-0535B

$2.17

18

SCREW, REAR | MODEL X/Y This part replaces 02142-05203.

02142-0520B

$1.78

18

SCREW | MODEL K1/K2/K3 This part replaces 02142-05253.

02142-0525B

$2.34

19

BOLT, BANK SENS0R RH

43576-48B02

$7.48

20

BOLT, BANK SENSOR LH

43576-48B20

$12.50

21

FOOTREST ASSY, PILLION RH

43600-24F00

$251.24

22

FOOTREST ASSY, PILLION LH | Includes Item(s) 23 - 30

43700-24F00

$278.10

23

BAR, PILLION RH | MODEL X/Y This part replaces 43610-33E10.

43610-33E11

$72.75

23

BAR, PILLION RH | MODEL K1/K2/K3

43610-33E11

$72.75

24

BAR, PILLION LH | MODEL X/Y This part replaces 43620-33E10.

43620-33E11

$74.08

24

BAR, PILLION LH | MODEL K1/K2/K3

43620-33E11

$74.08

25

PIN

09208-06007

$3.29

26

SPRING

09440-05005

$1.58

27

BALL

06111-07004

$1.49

28

PLATE, RH

43816-33E21

$10.41

29

PLATE, LH | MODEL X/Y/K1 This part replaces 43826-33E21.

43826-33E22

$10.41

29

PLATE, LH | MODEL K2/K3

43826-33E22

$10.41

30

E RING This part replaces 08332-11043.

08332-1104A

$1.49

31

BOLT, BRACKET

09106-08121

$3.16
