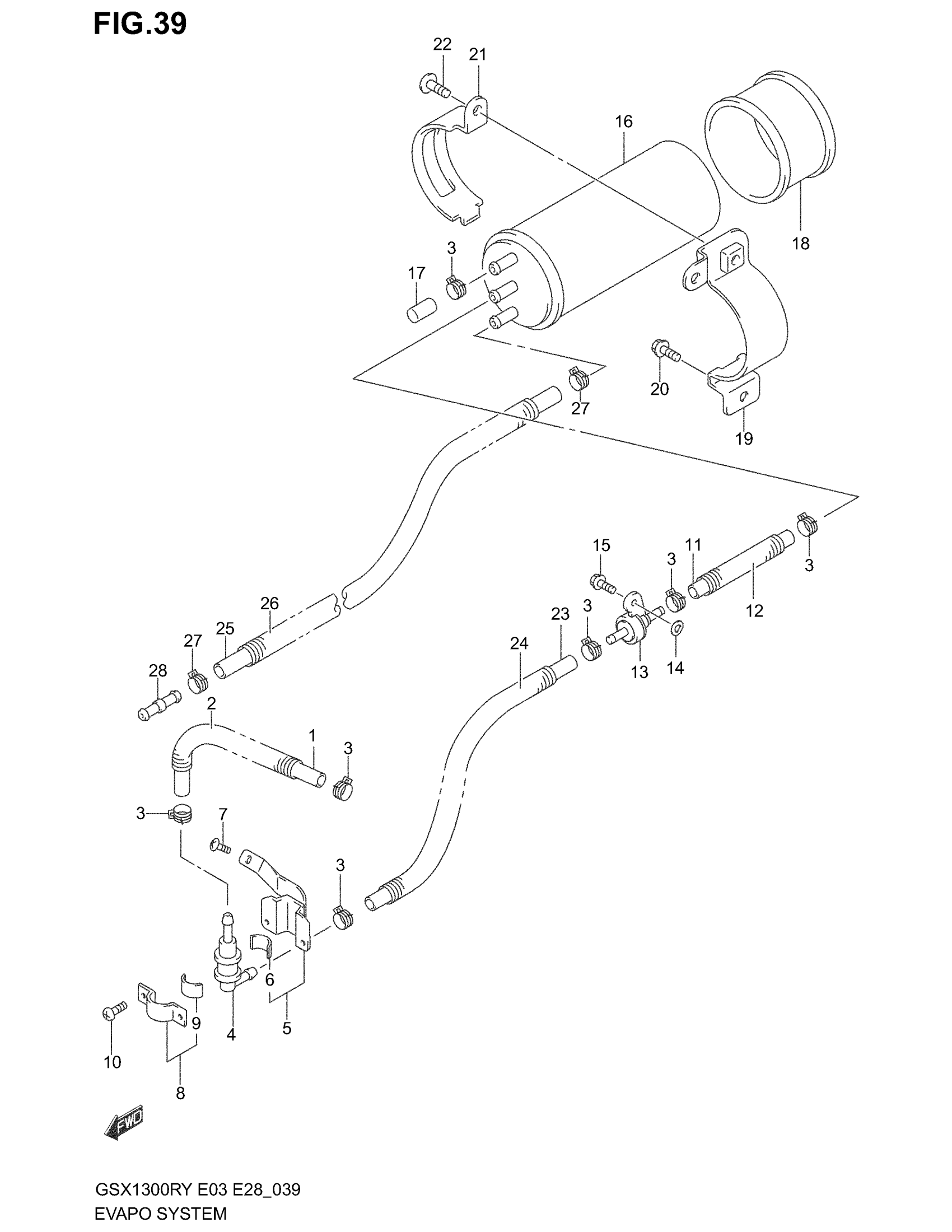

Suzuki GSX1300R (2003) EVAP SYSTEM (E33) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44434-24F00.

44400-19810

Unavailable

2

SPRING

09440-13041

$3.89

3

CLIP

09401-11413

$2.26

4

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

5

PLATE, BREATHER VALVE | Includes Item(s) 6

44890-24F00

Unavailable

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

8

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 9

44892-24A00

$4.52

9

CUSHION (10X30X2)

44894-24A00

$1.72

10

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

11

HOSE, 2 WAY VALVE & BREATHER VALVE | L:600!320

09355-54116-600

$12.06

12

SPRING

09440-13051

$10.76

13

VALVE, 2 WAY & CANISTER

44240-24F00

$64.68

14

WASHER

09160-06077

$1.91

15

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

16

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

17

CAP

09251-07003

$2.53

18

CUSHION CANISTER

44883-26E00

Unavailable

19

BRACKET, CANISTER

44880-24F00

Unavailable

20

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

21

HOLDER, CANISTER

44882-26E00

Unavailable

22

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

23

HOSE, CANISTER & 2 WAY VALVE | L:600!130

09355-54116-600

$12.06

24

SPRING

09440-13041

$3.89

25

HOSE, CANISTER & CARB

09359-54111-600

$25.80

26

SPRING

09440-13053

Unavailable

27

CLIP

09401-12404

$2.34

28

UNION

09364-06005

$5.72
