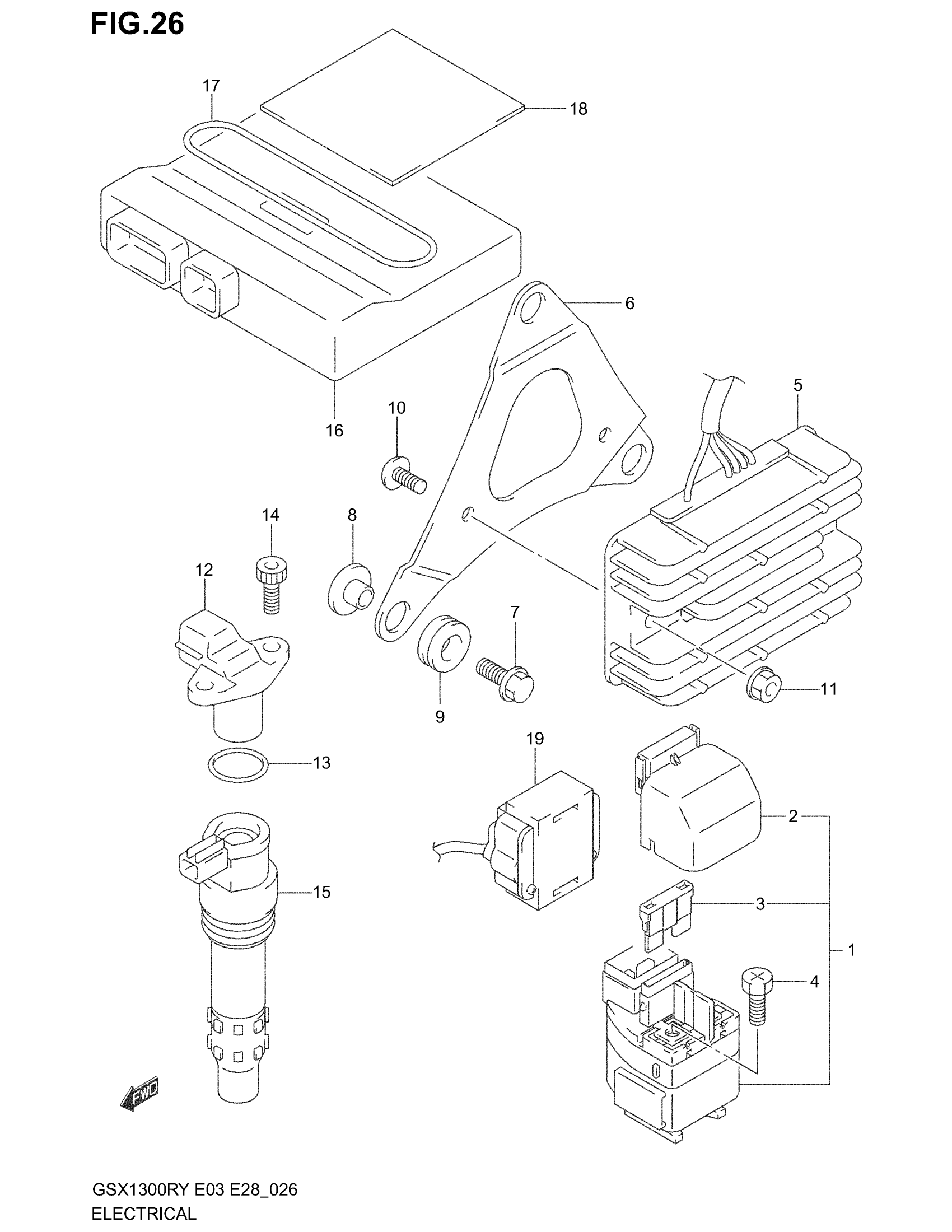

Suzuki GSX1300R (2003) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING | Includes Item(s) 2 - 3

31800-26E00

$97.31

2

COVER, RELAY ASSY

31861-26E00

$4.16

3

FUSE, 30A

09481-30101

$2.26

4

BOLT (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY | MODEL X/Y/K1 This part replaces 32800-33E10.

32800-33E21

$263.17

5

RECTIFIER ASSY | MODEL K2/K3 This part replaces 32800-33E20.

32800-33E21

$263.17

6

BRACKET, RECTIFIER

32811-24F00

Unavailable

7

SCREW (6X25)

09116-06025

$2.44

8

SPACER

09169-06064

$3.61

9

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

$8.24

10

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

11

NUT This part replaces 08316-10063.

08316-1006B

$2.50

12

SENSOR ASSY, CAM POSITION | MODEL X/Y/K1

32160-02F00

Unavailable

12

SENSOR ASSY, CAM POSITION | MODEL K2/K3; Includes Item(s) 13

32160-02F10

$150.35

13

PACKING

32161-02F00

$9.72

14

BOLT This part replaces 07130-06163.

07130-0616B

$2.39

15

COIL ASSY, IGNITION | MODEL X/Y/K1

33410-24F00

$192.75

15

COIL ASSY,IGNIT | MODEL K2/K3 This part replaces 33410-24F10.

33410-24F11

$116.13

16

CONTROL UNIT, FI | MODEL X/Y ?32920-24F20

32920-24F21

Unavailable

16

CONTROL UNIT, FI | MODEL K1

32920-24FD0

Unavailable

16

CONTROL UNIT, FI | MODEL K2/K3

32920-24FK0

$2,404.90

17

BAND, EPI CONT

33651-12910

$5.24

18

CUSHION (40X40X16) | CUT AS REQUIRED PROFILE (20X40)

33652-05300

$4.45

19

SENSOR ASSY,FUE This part replaces 33960-02F00.

33960-02F01

$90.36
