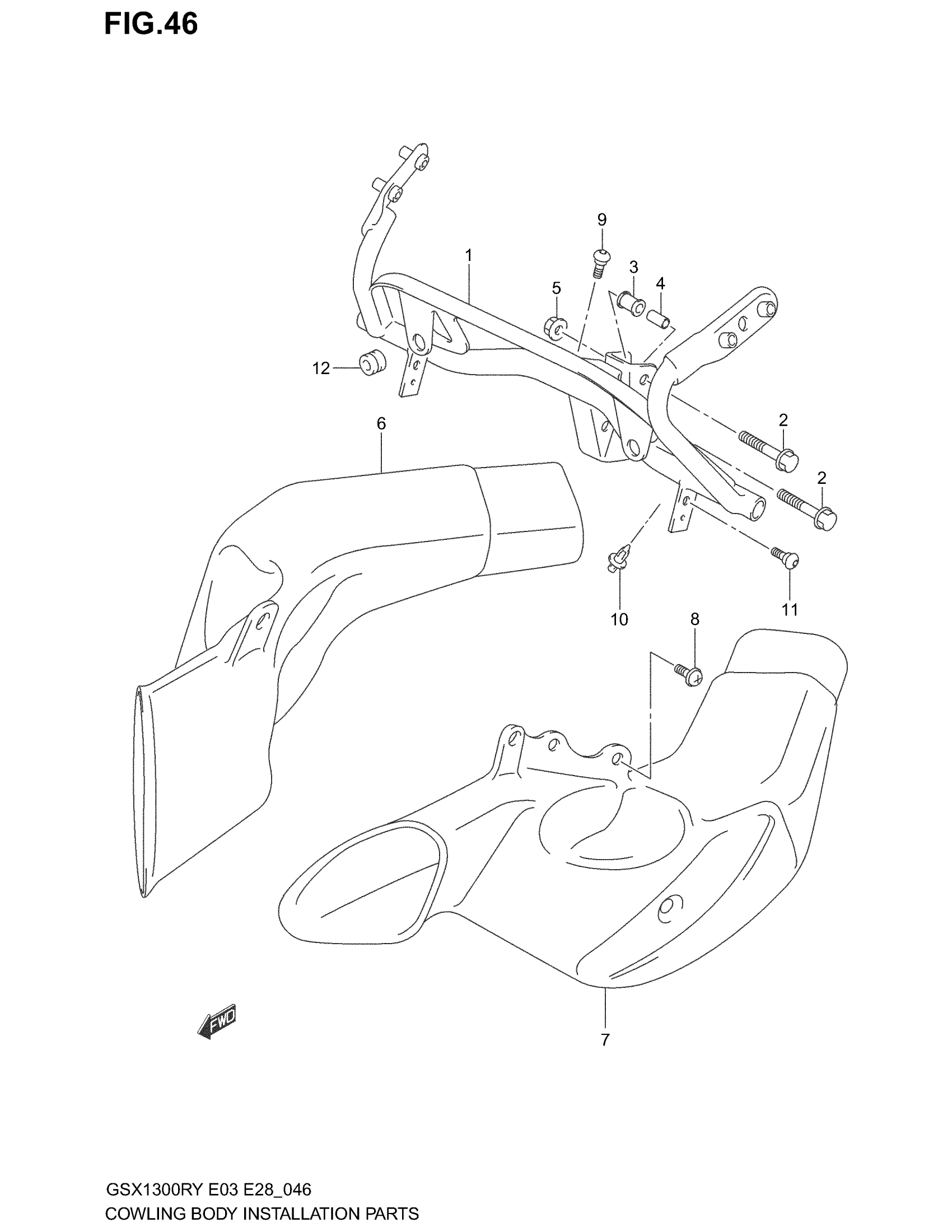

Suzuki GSX1300R (2003) COWL BODY INSTALLATION PARTS Diagram

#

Description
Price

1

BRACE, COWLING | MODEL X/Y This part replaces 94510-24F00.

94510-24F01

$535.15

1

BRACE, COWLING | MODEL K1/K2/K3

94510-24F01

$535.15

2

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

3

CUSHION, BRACE

94541-41C00

$5.18

4

SPACER This part replaces 09180-08166.

09180-08215

$4.19

5

NUT This part replaces 08313-20083.

08313-2008B

$2.88

6

PIPE, AIR INTAKE RH | MODEL X/Y/K1 This part replaces 94421-24F00.

94421-24F01

Unavailable

6

PIPE, AIR INTAKE RH | MODEL K2/K3

94421-24F01

Unavailable

7

PIPE, AIR INTAKE LH | MODEL X/Y/K1 This part replaces 94431-24F00.

94431-24F02

Unavailable

7

PIPE, AIR INTAKE LH | MODEL K2/K3

94431-24F02

Unavailable

8

SCREW, INTAKE PIPE | MODEL X

09136-05054

Unavailable

8

SCREW, INTAKE PIPE | MODEL Y/K1/K2/K3

09139-05054

$4.24

9

SCREW, UPPER PANEL

09139-05055

$4.26

10

CLIP (BLACK)

09409-06314-5PK

$2.78

11

SCREW

09139-05054

$4.24

12

CUSHION

09320-08028

$3.04
