Description

Price

1

GEAR ASSY, PRIMARY DRIVEN This part replaces 21200-24830.

21200-24810

$548.43

2

WASHER (25X54X2.5)

09160-25037

$8.85

3

BEARING (35X40X39.8)

09263-35013

$35.56

4

HUB, CLUTCH SLEEVE

21410-24F00

$165.58

5

CAM SET, CLUTCH

21610-02F12

$239.88

6

BOLT, SPRING SUPPORT This part replaces 21481-02F11.

21481-02F12

$7.69

7

SPRING, CLUTCH

21413-24F10

$6.20

8

BOLT, CLUTCH SPRING This part replaces 21482-02F11.

21482-02F12

$2.92

9

PLATE, CLUTCH DRIVE | T:3.0 This part replaces 21441-24F20.

21441-24F00

$22.90

10

PLATE, CLUTCH DRIVE, NO.2 | T:3.8

21441-24F10

$24.03

11

.PLATE,CLUTCH DRIVEN NO.1 (T: | T:2.0

21451-24F00

$11.59

12

PLATE, CLUTCH DRIVEN NO.2 | T:2.3

21451-24F10

$11.59

13

PLATE, CLUTCH DRIVE NO.3 | T:3.8

21442-24F00

$24.15

14

.SEAT,WAVE WASHER

21471-24F00

$14.26

15

.WASHER,CLUTCH PLATE WAVE

21472-24F00

$15.50

16

DISK, CLUTCH PRESSURE

21462-24F00

$52.44

17

NUT, CLUTCH SLEEVE HUB

09159-24010

$13.22

18

.WASHER (25X50X2.5)

09160-25056

$11.61

19

WASHER (24.2X35X2)

09164-24006

$3.76

20

ROD, CLUTCH PUSH, RH

23110-24F00

$22.23

21

ROD, CLUTCH PUSH, LH

23111-26D00

$15.88

22

PIECE, CLUTCH PUSH

23121-31E00

$23.92

23

CYLINDER,CLUTCH | Includes Item(s) 24 - 27 This part replaces 23160-06B02.

23160-06B03

$101.68

24

CUP

23163-06B00

$7.22

25

SPRING

23164-05A00

$4.34

26

BLEEDER

59121-01A00

$8.73

27

CAP, BLEEDER

59122-01A00

$4.34

28

PIN, CL RLSE CYL

04211-09129

$1.65

29

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

30

WASHER, CLUTCH PUSH | 15.5X28X1

09160-15045

$3.89

31

BEARING (15X28X2)

09263-15003

$8.29

32

SEAL (6X34X5.5)

09285-06015

$7.98

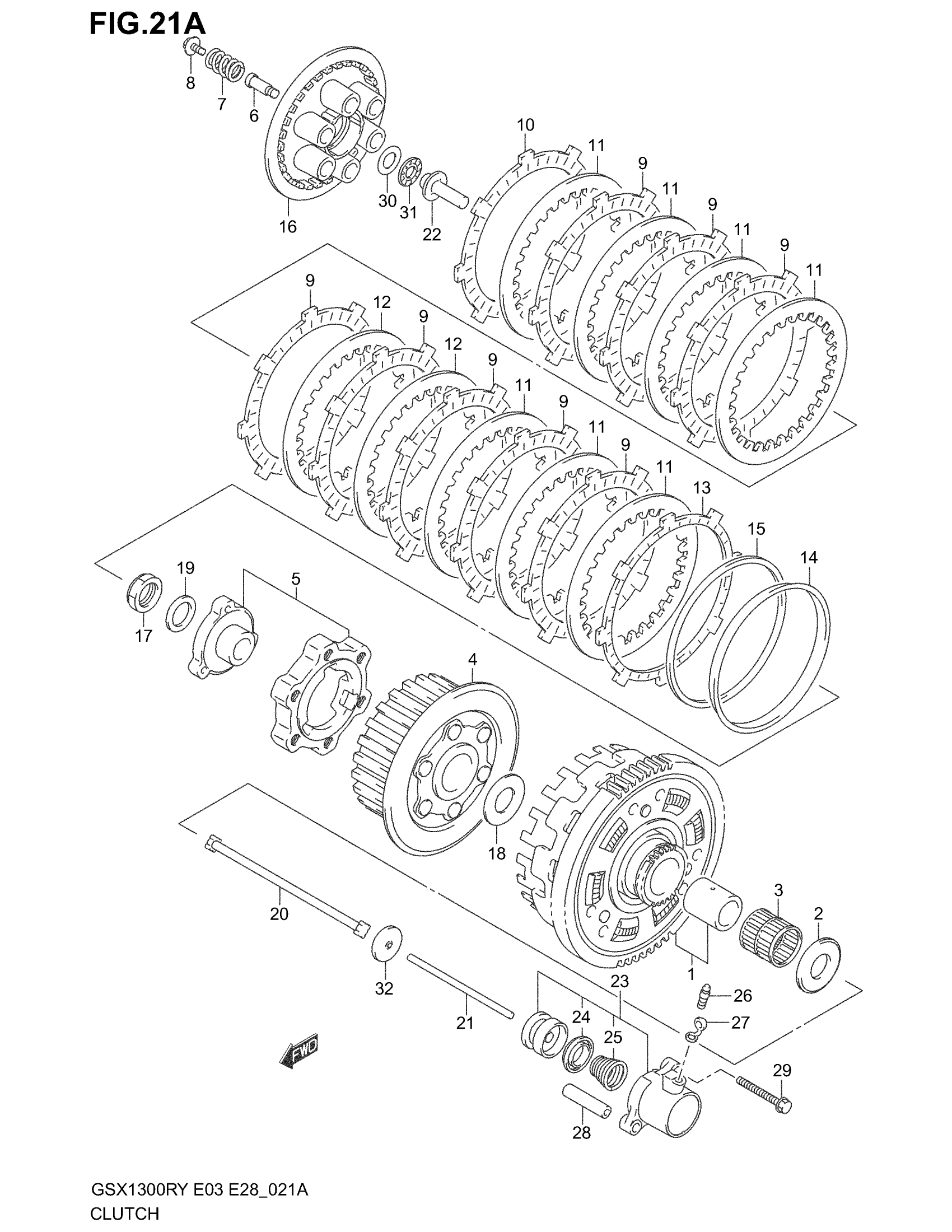

Suzuki GSX1300R (2003) CLUTCH (MODEL K2/K3) Diagram
