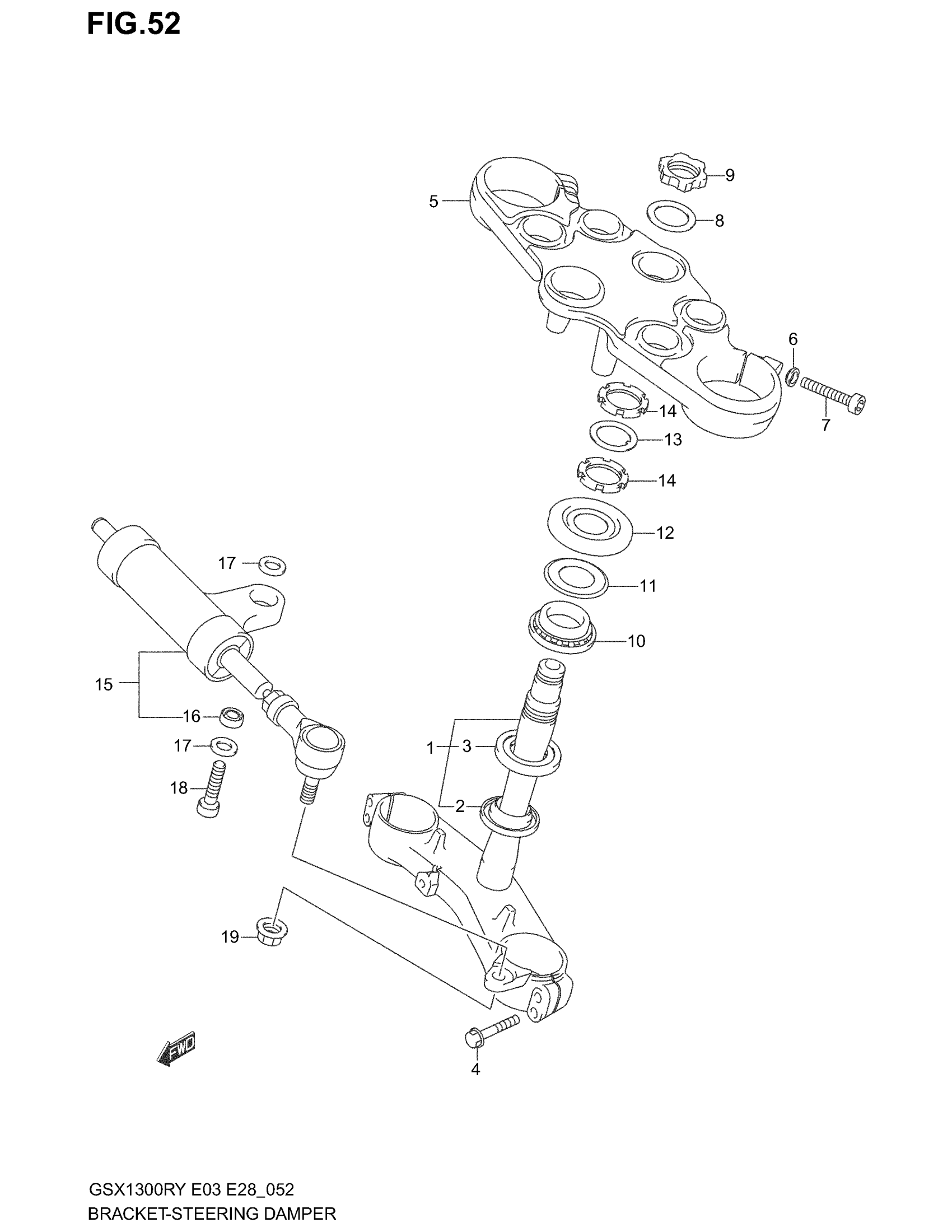

Suzuki GSX1300R (2003) BRACKET - STEERING DAMPER Diagram

#

Description
Price

1

BRACKET, LOWER | MODEL X/Y/K1/K2 This part replaces 51410-24F00.

51410-24F30

Unavailable

1

BRACKET, LOWER | MODEL K3; Includes Item(s) 2 - 3

51410-24F30

Unavailable

2

SEAL, LOWER

51644-12C00

$9.44

3

BEARING (30X55X17)

09267-30010

$48.11

4

BOLT

01550-08407

$3.42

5

BRACKET, UPPER

51311-24F00

Unavailable

6

WASHER

09164-08015

$3.21

7

BOLT

07130-08357

$3.18

8

WASHER

51356-27C00

$6.75

9

NUT

51353-24F00

$43.68

10

BEARING (30X55X17)

09267-30010

$48.11

11

SEAL, DUST UPPER (30.1X56X4)

51644-12C00

$9.44

12

SEAL, STEERING (30.1X75X6) | MODEL X/Y/K1 This part replaces 51643-24F00.

51643-24F10

$15.20

12

SEAL, STEERING (30.1X75X6) | MODEL K2/K3

51643-24F10

$15.20

13

WASHER, STEM

51641-33E00

$6.20

14

NUT, STEM

51631-33E00

$23.64

15

DAMPER ASSY, STEERING | Includes Item(s) 16

51750-24F00

Unavailable

16

BEARING (8X17.5X11)

09269-08003

$51.13

17

SEAL, DUST

64339-14101

$7.95

18

BOLT

07130-08307

$3.89

19

NUT

08319-31107

$2.73
