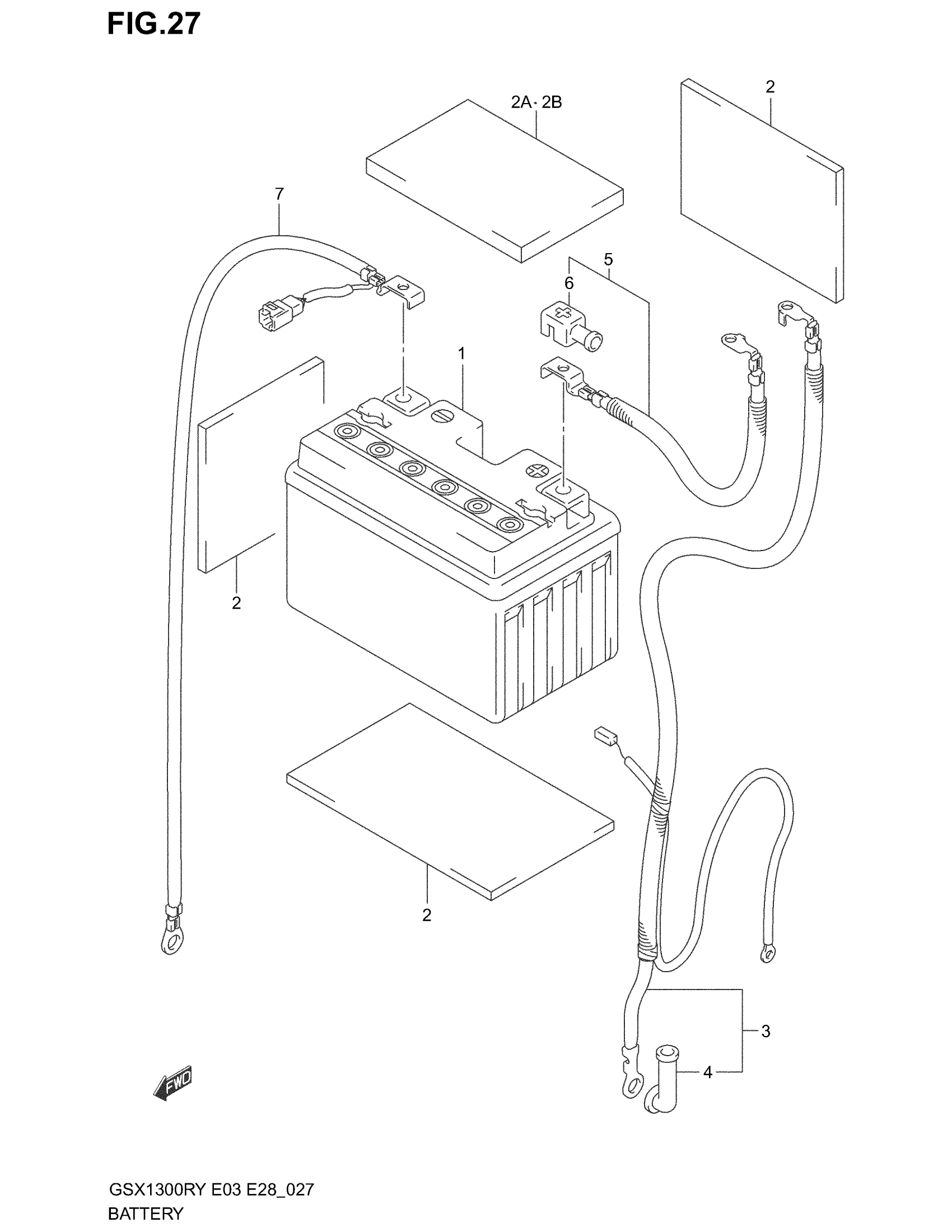

Suzuki GSX1300R (2003) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (FT12A-BS,12V10AH) | MODEL X/Y/K1 YT12A-BS,12V,10AH This part replaces 33610-02F00.

33610-14G11

$120.22

1

BATTERY ASSY (FT12A-BS,12V10AH) | MODEL K2/K3 YT12A-BS,12V,10AH This part replaces 33610-02F01.

33610-14G11

$120.22

2

PROTECTOR (170X95X3.0) | CUT AS REQUIRED PROFILE (20X90)(115X50)

33651-37000

$4.48

2A

PROTECTOR (40X85X5) | MODEL X/Y/K1

33652-19F00

$4.37

2B

CUSHION, REAR FENDER REAR | MODEL K2/K3 This part replaces 33652-28010.

33651-37000

$4.48

3

WIRE, STARTER MOTOR LEAD | Includes Item(s) 4

33810-24F00

Unavailable

4

CAP, STARTER MOTOR

31861-48B10

$6.55

5

WIRE, BATTERY PLUS LEAD | Includes Item(s) 6

33820-24F00

$57.77

6

CAP, BATTERY PLUS

33624-35B00

$6.40

7

WIRE, BATTERY MINUS

33860-24F00

$64.68
