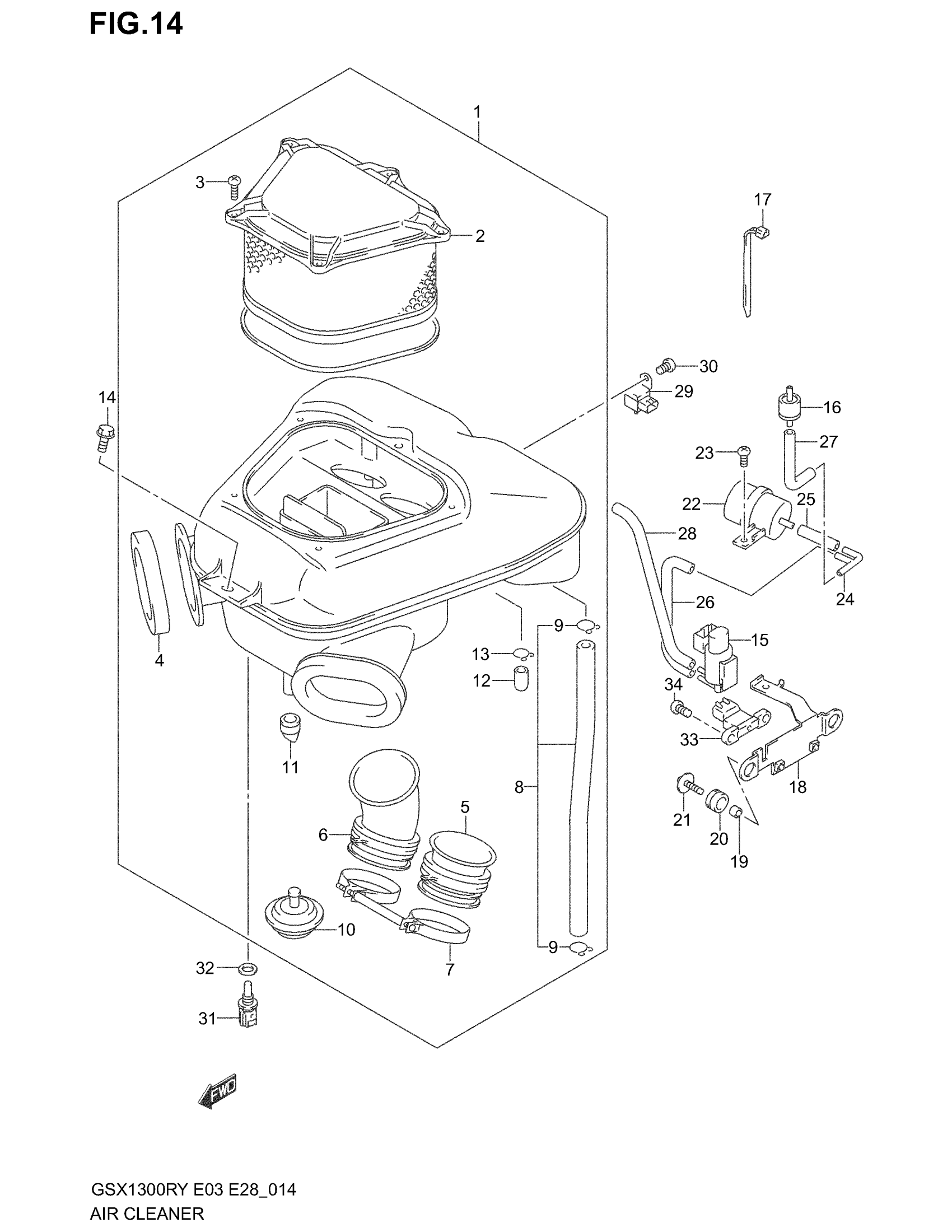

Suzuki GSX1300R (2003) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AI | MODEL X This part replaces 13700-24F00.

13700-24F05

Unavailable

1

CLEANER ASSY,AI | MODEL Y This part replaces 13700-24F01.

13700-24F05

Unavailable

1

CLEANER ASSY,AI | MODEL K1/K2/K3; Includes Item(s) 2 - 13 This part replaces 13700-24F03.

13700-24F05

Unavailable

2

FILTER ASSY | MODEL X/Y This part replaces 13780-24F00.

13780-24F02

$54.26

2

FILTER ASSY | MODEL K1 This part replaces 13780-24F01.

13780-24F02

$54.26

2

FILTER ASSY | MODEL K2/K3

13780-24F02

$54.26

3

SCREW

13831-21F00

$3.17

4

.CUSHION, DUCT | MODEL X/Y/K1 This part replaces 13736-24F00.

13736-01H00

$9.78

4

.CUSHION, DUCT | MODEL K2/K3 This part replaces 13736-24F01.

13736-01H00

$9.78

5

TUBE, OUTLET

13881-33E50

$19.49

6

TUBE, OUTLET

13881-24F00

$56.93

7

CLAMP This part replaces 13826-33E50.

13826-33E52

$26.36

8

TUBE, BREATHER | MODEL X

13850-24F00

Unavailable

8

TUBE,BREATHER | MODEL Y This part replaces 13850-24F01.

13850-24F11

$14.65

8

TUBE,BREATHER | MODEL K1 This part replaces 13850-24F02.

13850-24F11

$14.65

8

TUBE,BREATHER | MODEL K2/K3 This part replaces 13850-24F10.

13850-24F11

$14.65

9

CLIP

09401-14301

$2.35

10

DIAPHRAGM, CONT VALVE

13895-24F00

Unavailable

11

CAP,DRAIN | MODEL X/Y This part replaces 13872-00110.

13872-00111

$4.48

12

.PLUG

13859-41B10

$7.38

13

CLIP

09401-14301

$2.35

14

BOLT (6X16)

09116-06130

$2.28

15

VALVE ASSY, SOLENOID

18115-70G10

$123.07

16

VALVE, CHECK

95569-78040

$44.97

17

CLAMP, CHECK VALVE

09407-14403

$2.26

18

BRACKET, SOLENOID VALVE

18119-33E00

Unavailable

19

SPACER

09180-06257

$2.83

20

CUSHION

09320-09036

$4.32

21

BOLT

09116-06115

$1.97

22

CHAMBER, VACUUM

13715-02F00

Unavailable

23

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

24

3 WAY

09367-04009

$4.73

25

HOSE, VACUUM CHAMBER TO 3 WAY (4X8X600) | L:600!40

09355-40805-600

$11.33

26

HOSE, 3 WAY TO SOLENOID (4X8X600) | L:600!150

09355-40805-600

$11.33

27

HOSE, CHECK VALVE TO 3 WAY (4X8X600) | L:600!100

09355-40805-600

$11.33

28

HOSE, SOLENOID TO CLEANER (4X8X600) | L:600!400

09355-40805-600

$11.33

29

SENSOR, BOOST

15620-02F00

$233.13

30

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

31

SENSOR, AIR TEMPERATURE

13650-61B00

$109.08

32

GASKET | MODEL X/Y/K1

09168-12016

$2.17

32

GASKET | MODEL K2/K3

09168-12017

$1.95

33

SENSOR, AIR PRESSURE

18590-81A00

$382.13

34

SCREW This part replaces 02142-06123.

02142-0612A

$1.49
