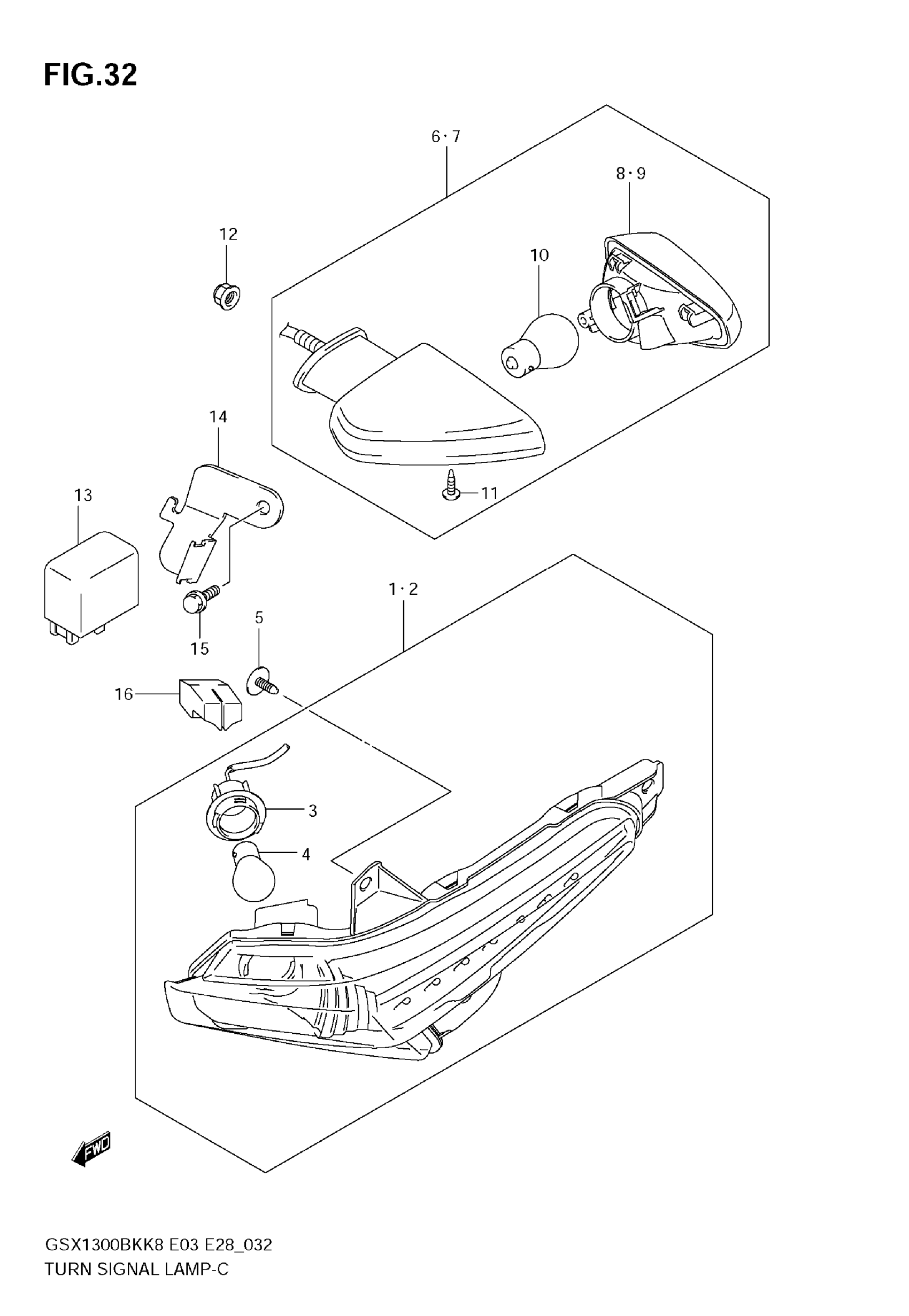

Suzuki GSX1300BK (2009) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL, R

35601-23H00

$220.83

2

LAMP ASSY, FRONT TURNSIGNAL, L | Includes Item(s) 3 - 4

35602-23H00

$220.83

3

SOCKET & CORD

35618-23H00

Unavailable

4

BULB (12V21W) | FOR AMBER

09471-12186

$12.66

5

SCREW,5X20 This part replaces 09136-05057.

09136-05068

$3.15

6

LAMP ASSY, REAR TURNSIGNAL, R

35603-23H00

$150.57

7

LAMP ASSY, REAR TURNSIGNAL, L | Includes Item(s) 8 - 11

35604-23H00

$147.78

8

LAMP UNIT, R

35650-23H00

Unavailable

9

LAMP UNIT, L

35670-23H00

Unavailable

10

BULB (12V21W) | FOR AMBER

09471-12186

$12.66

11

SCREW

03241-0412A

Unavailable

12

NUT, REAR TURNSIGNAL

08316-1010B

$2.66

13

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08

14

BRACKET, TURNSIGNAL RELAY

38615-23H00

Unavailable

15

BOLT, TURNSIGNAL RLY BRKT

01547-0610A

$2.45

16

GUIDE, FUEL TANK

44168-23H00

$7.95
