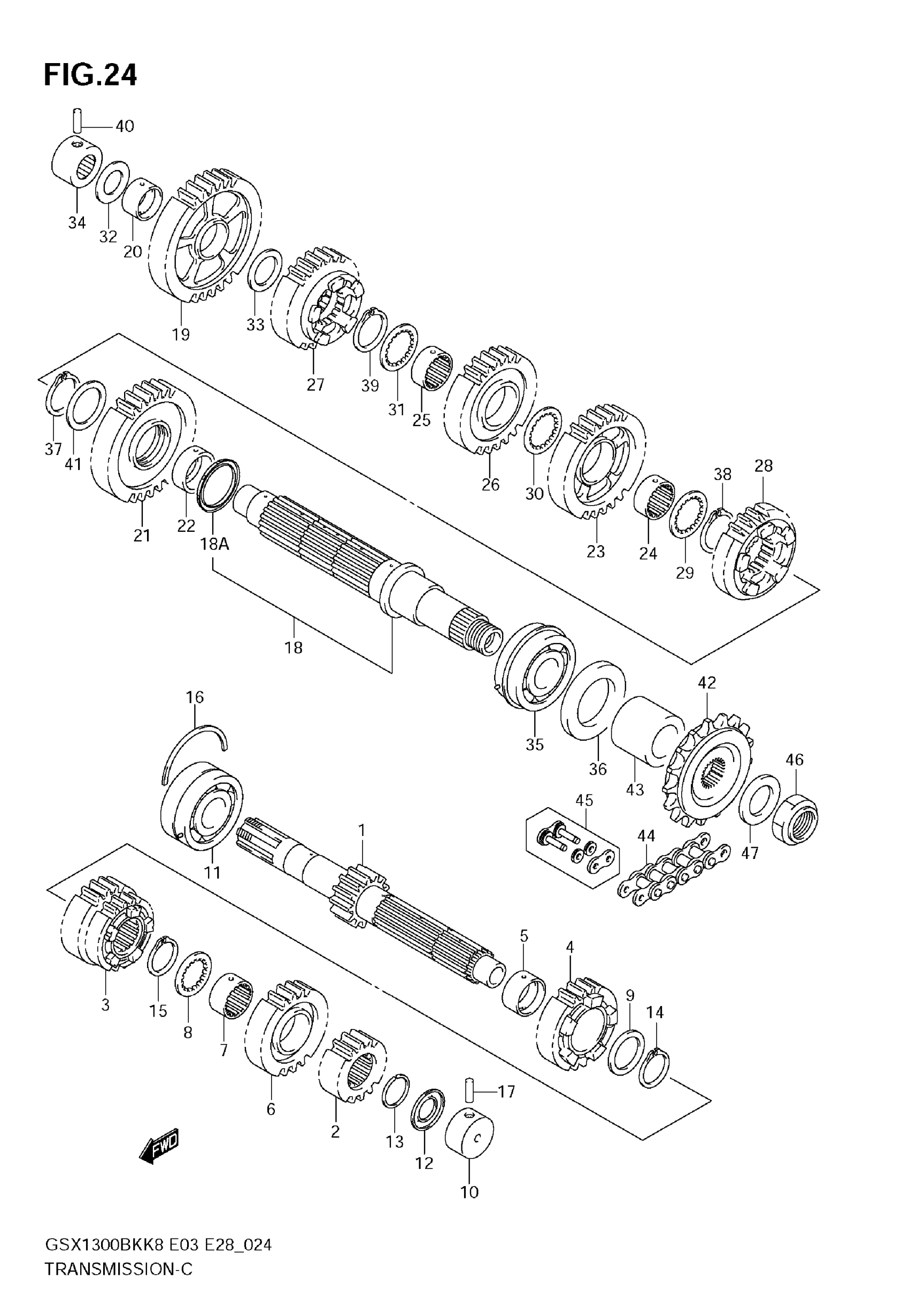

Suzuki GSX1300BK (2009) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, CNTR (NT:13)

24120-24F00

$332.65

2

GEAR,2ND DRIVE (NT:16)

24221-15H00

$130.87

3

GEAR, 3RD & 4TH DRIVE | NT:19/21

24231-15H00

$197.02

4

GEAR,5TH DRIVE (NT:22) This part replaces 24251-15H00.

24251-15H01

$188.73

5

BUSH, 5TH DRIVE GEAR

24252-24F10

$35.47

6

GEAR, 6TH DRIVE (NT:23)

24261-15H00

$188.73

7

BUSH, 6TH DRIVE GEAR

24262-24F10

$35.47

8

WASHER, 6TH DRIVE GEAR

09167-27003

$6.80

9

WASHER, 5TH DRIVE GEAR | 27X36X2.5

09181-27014

$6.32

10

BEARING, CNTR SHAFT, L | 20X34X17.5

09263-20085

$76.72

11

BEARING, CNTR SHAFT, R | 25X62X25.4

09267-25012

$156.13

12

SEAL, OIL | 20X31.2X2.7

09285-20006

$6.51

13

CIRCLIP, 2ND DRIVE GEAR

09380-27004

$3.70

14

CIRCLIP, 5TH DRIVE GEAR

09380-27006

$2.73

15

CIRCLIP, 6TH DRIVE GEAR

09380-27006

$2.73

16

C RING, CNTR SHAFT BRG, R

09390-62012

$7.31

17

PIN, CNTR SHAFT BRG, L

04221-07209

$2.30

18

SHAFT, DRIVE | Includes Item(s) 18A

24130-15H00

$303.38

18A

RING, DRIVE SHAFT FRICTION

24136-48G01

$39.68

19

GEAR, 1ST DRIVEN (NT:34)

24311-15H00

$192.75

20

BUSH, 1ST DRIVEN GEAR

24312-24F10

$35.47

21

GEAR,2ND DRIVEN (NT:31)

24321-15H00

$192.75

22

BUSH, 2ND DRIVEN GEAR

24322-48G00

$32.12

23

GEAR,3RD DRIVEN (NT:29)

24331-15H00

$192.75

24

BUSH, 3RD DRIVEN GEAR

24332-24F10

$34.15

25

BUSH, 4TH DRIVEN GEAR

24332-24F10

$34.15

26

GEAR,4TH DRIVEN (NT:27)

24341-15H00

$192.75

27

GEAR, 5TH DRIVEN (NT:25) This part replaces 24351-15H00.

24351-15H01

$197.58

28

GEAR,6TH DRIVEN (NT:24)

24361-15H00

$197.58

29

WASHER, 3RD DRIVEN GEAR, L

09167-30008

$6.12

30

WASHER, 3RD & 4TH DRIVE

09167-30008

$6.12

31

WASHER, 4TH DRIVEN GEAR, R

09167-30008

$6.12

32

WASHER, 1ST DRIVEN GEAR, R | 20X34X1.0

09181-20251

$2.79

33

WASHER, 1ST DRIVEN GEAR, L | 24X34X1.0

09181-24005

$3.55

34

BEARING, DRIVE SHAFT, R | 20X34X20

09263-20040

$55.20

35

BEARING, DRIVE SHAFT, L | 30X62X23.8

09267-30011

$167.22

36

SEAL, DRIVE AHAFT OIL | 42X62X7

09283-42018

$36.39

37

CIRCLIP, 2ND DRIVEN GEAR

09380-30009

$3.49

38

CIRCLIP, 3RD DRIVEN GEAR

09380-30009

$3.49

39

CIRCLIP, 4TH DRIVEN GEAR

09380-30009

$3.49

40

PIN, DRIVE SHAFT BRG, R

04221-07209

$2.30

41

WASHER, 2ND DRIVEN GEAR, R

08211-30405

$4.17

42

SPROCKET, ENGINE (NT:18)

27510-15H00

$148.73

43

SPACER, ENGINE SPROCKET | 27X42X35.7

27531-23H00

Unavailable

44

CHAIN ASSY, DRIVE | RK GB50GSVZ4,118L

27600-24F60-118

$600.32

45

JOINT SET, DRIVEN | OPT

27620-24F60

$21.10

46

NUT, ENGINE SPROCKET

09159-22008

$30.18

47

WASHER, ENGINE SPROCKET | 27X42X1.5

09181-27016

$5.70
