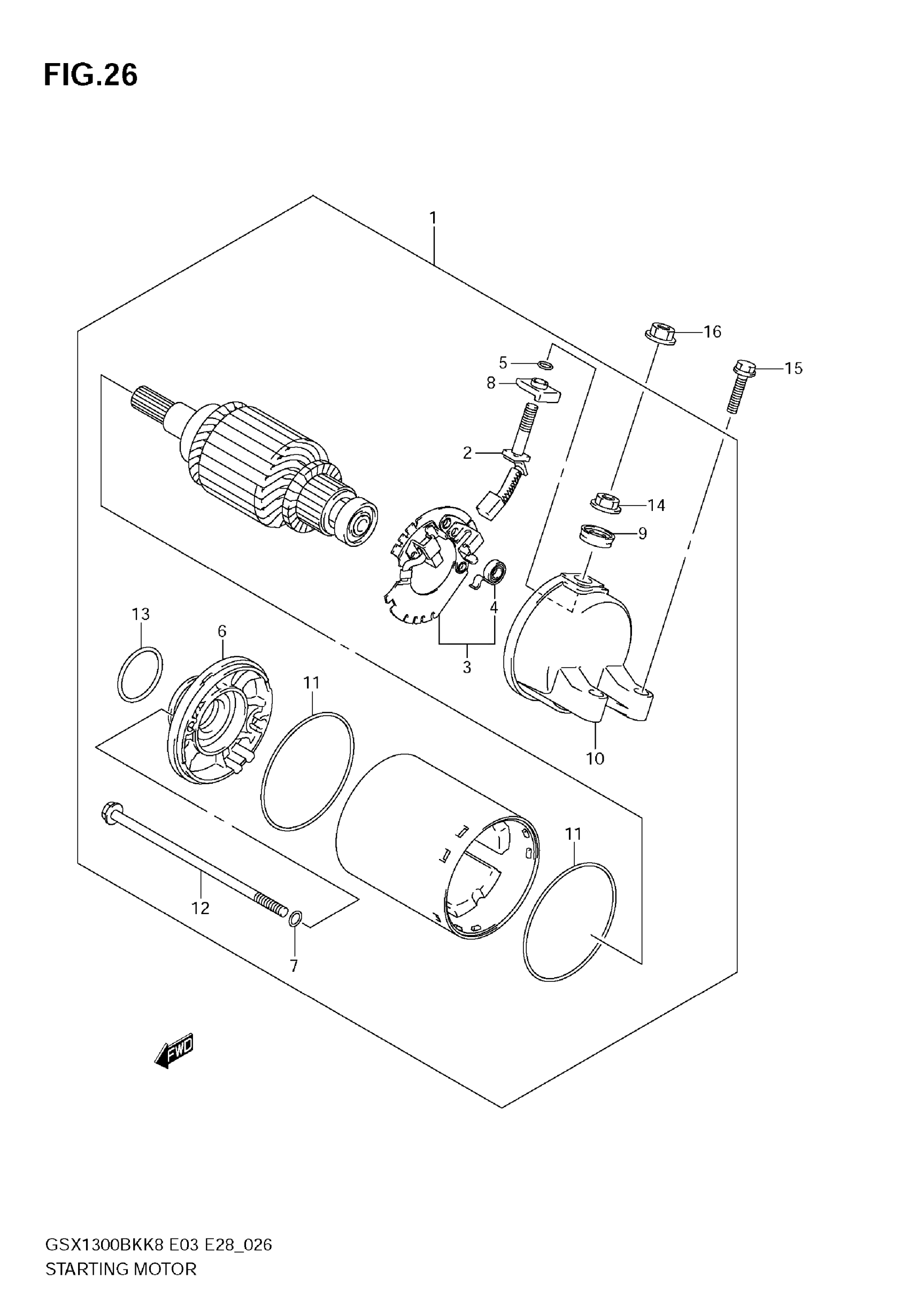

Suzuki GSX1300BK (2009) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STARTING | Includes Item(s) 2 - 14 This part replaces 31100-15H00.

31100-15H21

$625.30

2

BRUSH (+)

31130-38300

$20.82

3

HOLDER, BRUSH

31132-27A01

$83.02

4

SPRING

31135-65010

$5.10

5

O RING

31143-38300

$5.75

6

HOUSING ASSY, STARTING

31150-49500

Unavailable

7

O RING

31156-38300

$5.10

8

BUSH, B

31171-38300

$10.08

9

BUSHING

31172-38300

$5.24

10

FRAME, STARTER END

31175-15H00

Unavailable

11

O RING

31264-44110

$13.40

12

BOLT, THROUGH

31281-88C00

Unavailable

13

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

14

.NUT

08310-00067

$1.83

15

BOLT, STARTING MOTOR (6X25)

09103-06212

$2.53

16

NUT

08361-3506A

$1.81
