2009 Suzuki GSX1300BK Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2009 Suzuki GSX1300BK, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

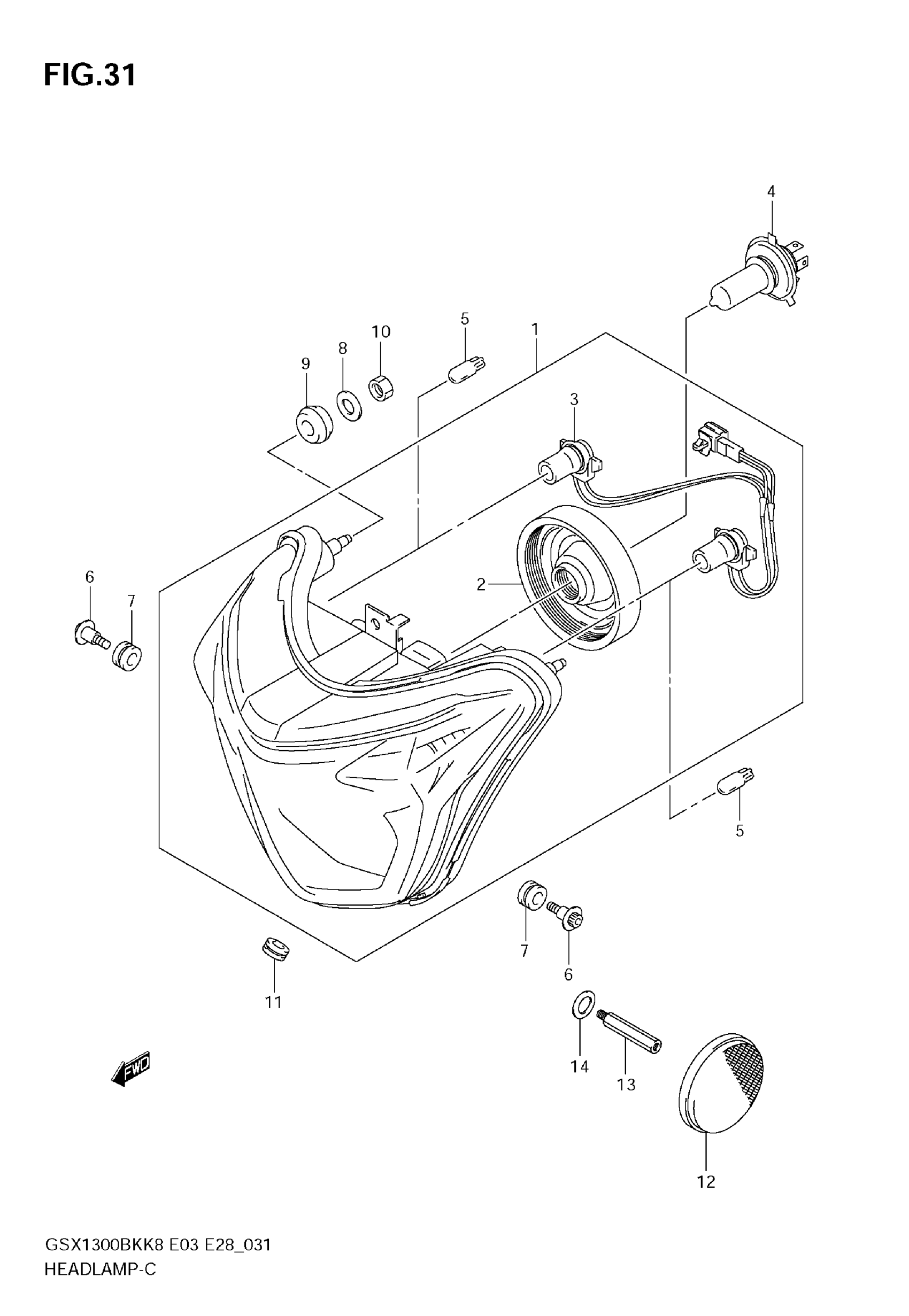

2009 Suzuki GSX1300BK Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 3 This part replaces 35100-23H00-999.

35100-23H01-999

1
Out of stock

2

SOCKET, COVER

35179-64G00

1
Out of stock

3

CORD ASSY

36118-23H00

1
Out of stock

4

BULB (12V60/55W,H4)

09471-12182

1
Out of stock

5

.BULB (12V5W)

09471-12216

2
Out of stock

6

SCREW, HEADLAMP

34149-18G00

2
Out of stock

7

CUSHION, HEADLAMP

34955-33E00

2
Out of stock

8

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

9

CUSHION, HEADLAMP

09320-09010

2

$2.92

In stock

10

NUT, HEADLAMP

08310-0006B

2
Out of stock

11

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

1
Out of stock

12

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-14A10.

35950-14A11

2
Out of stock

13

BOLT

09119-06112

2
Out of stock

14

WASHER (9X19X1.0)

09160-09015

2
Out of stock
