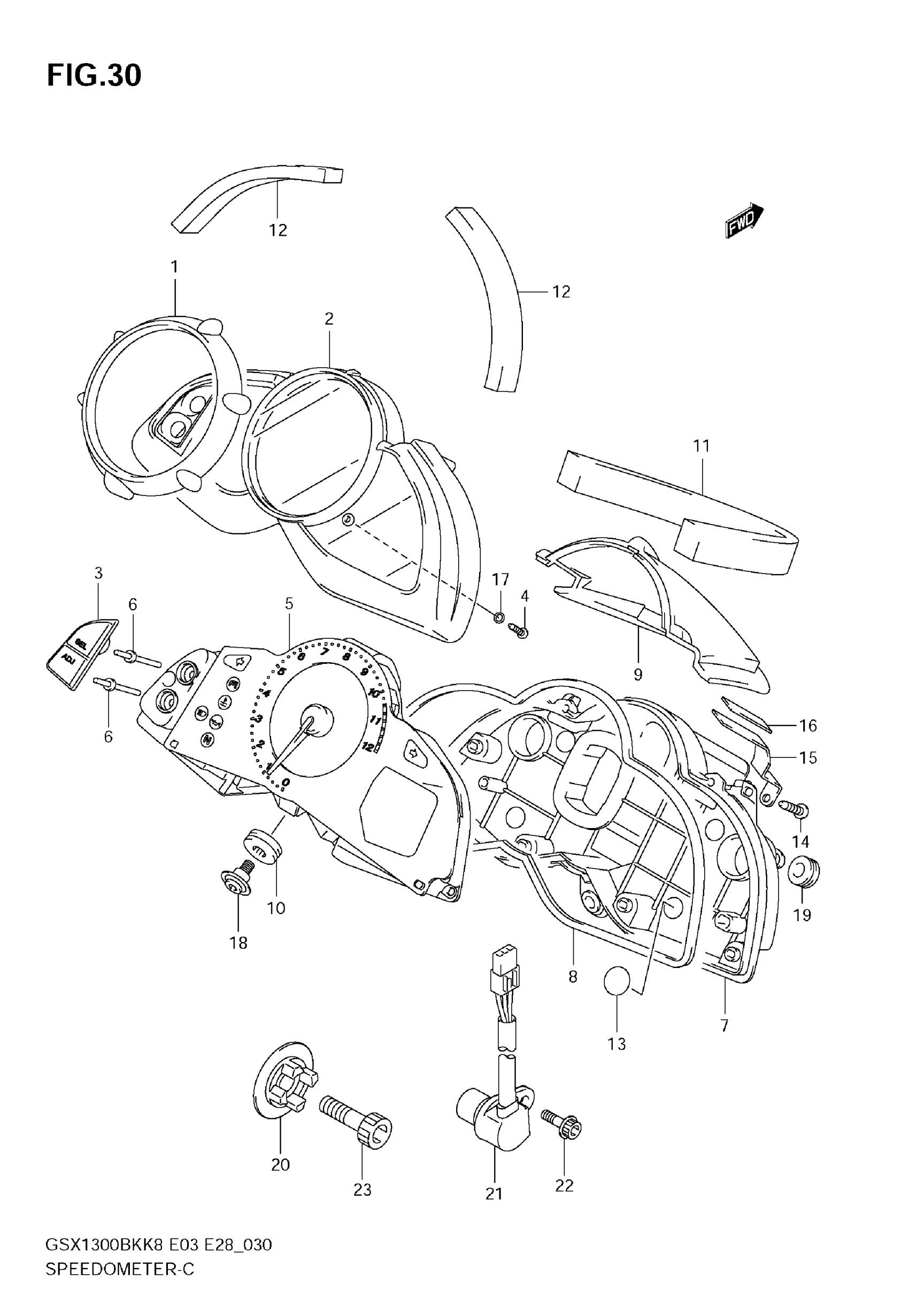

Suzuki GSX1300BK (2009) SPEEDOMETER Diagram

#

Description
Price

1

RING

34193-23H00

Unavailable

2

CASE, UPPER

34151-23H00

Unavailable

3

COVER

34126-23H00

Unavailable

4

SCREW (3X10)

34183-14F00

$3.03

5

SPEEDOMETER | GSX1300BKK8 E3/E33

34120-23H30

Unavailable

5

SPEEDOMETER | GSX1300BKK9 E3/E33

34120-23HB0

Unavailable

5

SPEEDOMETER | GSX1300BKK8 E28

34120-23H10

Unavailable

5

SPEEDOMETER | GSX1300BKK9 E28

34120-23H90

Unavailable

5

SPEEDOMETER | GSX1300BKAK8 E3/E33

34120-23H70

Unavailable

5

SPEEDOMETER | GSX1300BKAK9 E33

34120-23HE0

Unavailable

5

SPEEDOMETER | GSX1300BKAK8 E28

34120-23H50

Unavailable

5

SPEEDOMETER | GSX1300BKAK9 E28

34120-23HC0

Unavailable

6

KNOB

34124-16G00

$9.42

7

CASE, LOWER

34152-23H00

Unavailable

8

PACKING

34153-23H00

Unavailable

9

COVER, SPEEDOMETER

34156-23H00

Unavailable

10

CUSHION

34955-44G00

Unavailable

11

CUSHION, NO.1

34191-23H00

Unavailable

12

CUSHION, NO.2

34192-23H00

Unavailable

13

SEAL, WATER

34167-13E00

Unavailable

14

SCREW

34183-29F00

$3.84

15

HOLDER, SPEEDOMETER

34162-23H00

Unavailable

16

CUSHION, HOLDER

34188-23H00

Unavailable

17

SEAL, WASHER

34188-23H10

Unavailable

18

SCREW, SPEEDOMETER

34149-18G00

$2.53

19

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

20

ROTOR, SPEED This part replaces 34981-15H00.

34981-47H01

$25.18

21

SENSOR, SPEED

34990-35F00

$127.72

22

BOLT, SPEED SENSOR

07120-0512B

$2.61

23

BOLT, SPEED ROTOR

07130-0825B

$3.37
