2009 Suzuki GSX1300BK Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2009 Suzuki GSX1300BK, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

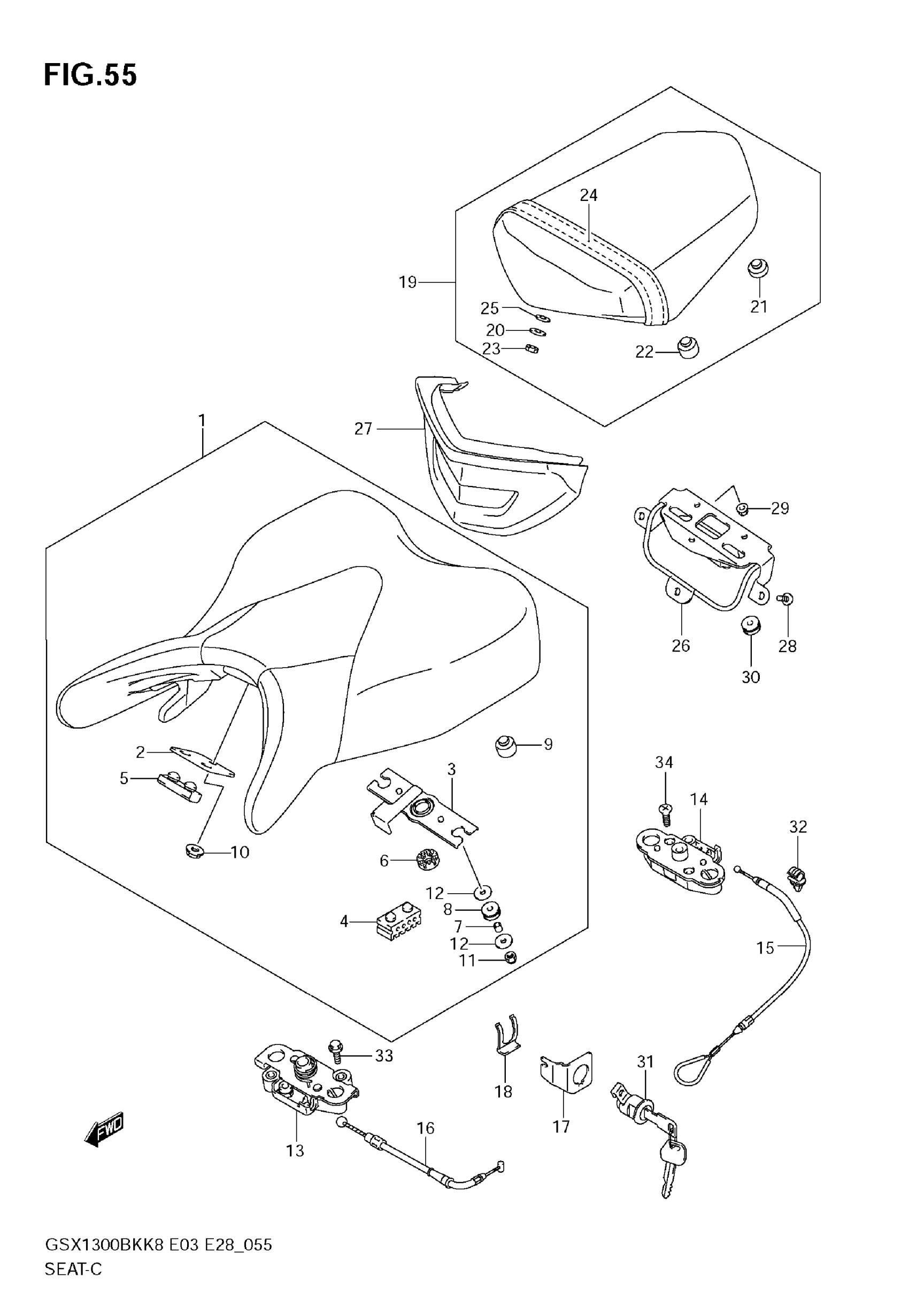

2009 Suzuki GSX1300BK Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY | FOR ETT,YPA

45100-23H00-EPH

1
Out of stock

1

SEAT ASSY | FOR CRU; Includes Item(s) 2 - 12

45100-23H00-FCU

1
Out of stock

2

PLATE, SEAT FRONT

45114-23H00

1
Out of stock

3

STRIKER, SEAT LOCK

45290-23H00

1
Out of stock

4

CUSHION, REAR

45147-12FA0

2
Out of stock

5

CUSHION, SEAT FRONT

45149-44G00

1
Out of stock

6

CUSHION, SEAT LOCK (10X22X6)

45213-13601

2
Out of stock

7

SPACER, 6.5X9X9.5

09180-06086

2
Out of stock

8

CUSHION

09320-10057

2
Out of stock

9

CUSHION

09321-10012

2
Out of stock

10

NUT

08316-1006A

1
Out of stock

11

NUT

08319-2106A

2
Out of stock

12

WASHER, SEAT LOCK STRIKER

09160-06047

4
Out of stock

13

BRACKET, STRIKER SUPPORT

45220-15H00

1
Out of stock

14

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

1
Out of stock

15

CABLE, SEAT LOCK RR

45220-23H00

1
Out of stock

16

CABLE, SEAT LOCK

45280-23H00

1
Out of stock

17

GUIDE, SEAT LOCK CABLE

45288-14F00

1
Out of stock

18

PLATE, SEAT LOCK ASSY

45289-11F00

1
Out of stock

19

SEAT ASSY | Includes Item(s) 20 - 24 This part replaces 45300-23H00-R42.

45300-23H01-R42

1
Out of stock

20

WASHER, 6.5X18X1.6

09160-06084

2
Out of stock

21

CUSHION

45149-09B00

2
Out of stock

22

CUSHION

09321-10011

2
Out of stock

23

NUT

08316-1006A

2
Out of stock

24

BAND, PILLION SEAT

45381-23H00

1
Out of stock

25

WASHER

09169-06071

2
Out of stock

26

BRACKET, PILLION SEAT

45320-23H00

1
Out of stock

27

COVER, PILLION SEAT FR (SILVER) | FOR ETT

45391-23H00-YMD

1
Out of stock

27

COVER, PILLION SEAT FR (BLACK) | FOR CRU

45391-23H00-YKV

1
Out of stock

27

COVER, PILLION SEAT FR (WHITE) | FOR YPA

45391-23H00-YPA

—
Out of stock

28

SCREW, PILLION SEAT

03541-0512A

3
Out of stock

29

NUT

08319-3106A

3
Out of stock

30

CUSHION

45213-13601

2
Out of stock

31

LOCK ASSY, SEAT

95700-14810

1
Out of stock

32

CLAMP, SEAT LOCK CABLE

09403-07331

1
Out of stock

33

BOLT

01547-0625A

2
Out of stock

34

SCREW, SEAT SUPPORT RR

02122-0630A

2
Out of stock
