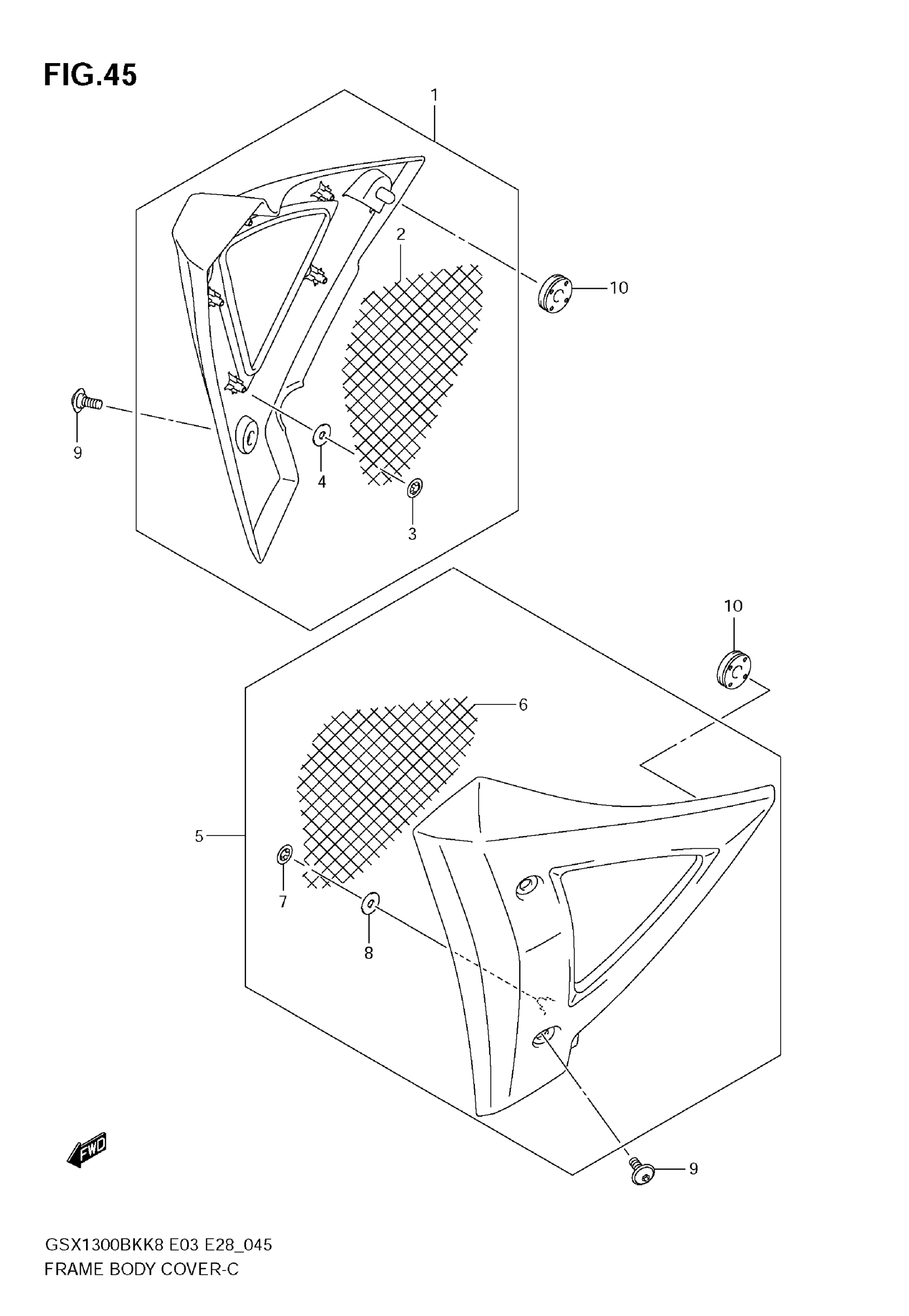

Suzuki GSX1300BK (2009) FRAME BODY COVER Diagram

#

Description

Price

1

COVER, FRAME BODY RH (BLACK) | Includes Item(s) 2 - 4

47510-23H00-YKV

$261.07

2

NET, BODY COVER RH (BLACK)

47512-23H00-291

Unavailable

3

NUT This part replaces 09148-05006.

09148-05012

$1.77

4

WASHER, FRAME BODY COVER

09320-06501

$3.92

5

COVER, FRAME BODY LH (BLACK) | Includes Item(s) 6 - 8

47520-23H00-YKV

$265.98

6

NET, BODY COVER LH (BLACK)

47522-23H00-291

Unavailable

7

NUT This part replaces 09148-05006.

09148-05012

$1.77

8

WASHER, FRAME BODY COVER

09320-06501

$3.92

9

SCREW, FRAME BODY COVER

09139-05064

$2.56

10

CUSHION, FRAME BODY COVER

09320-08028

$2.80
