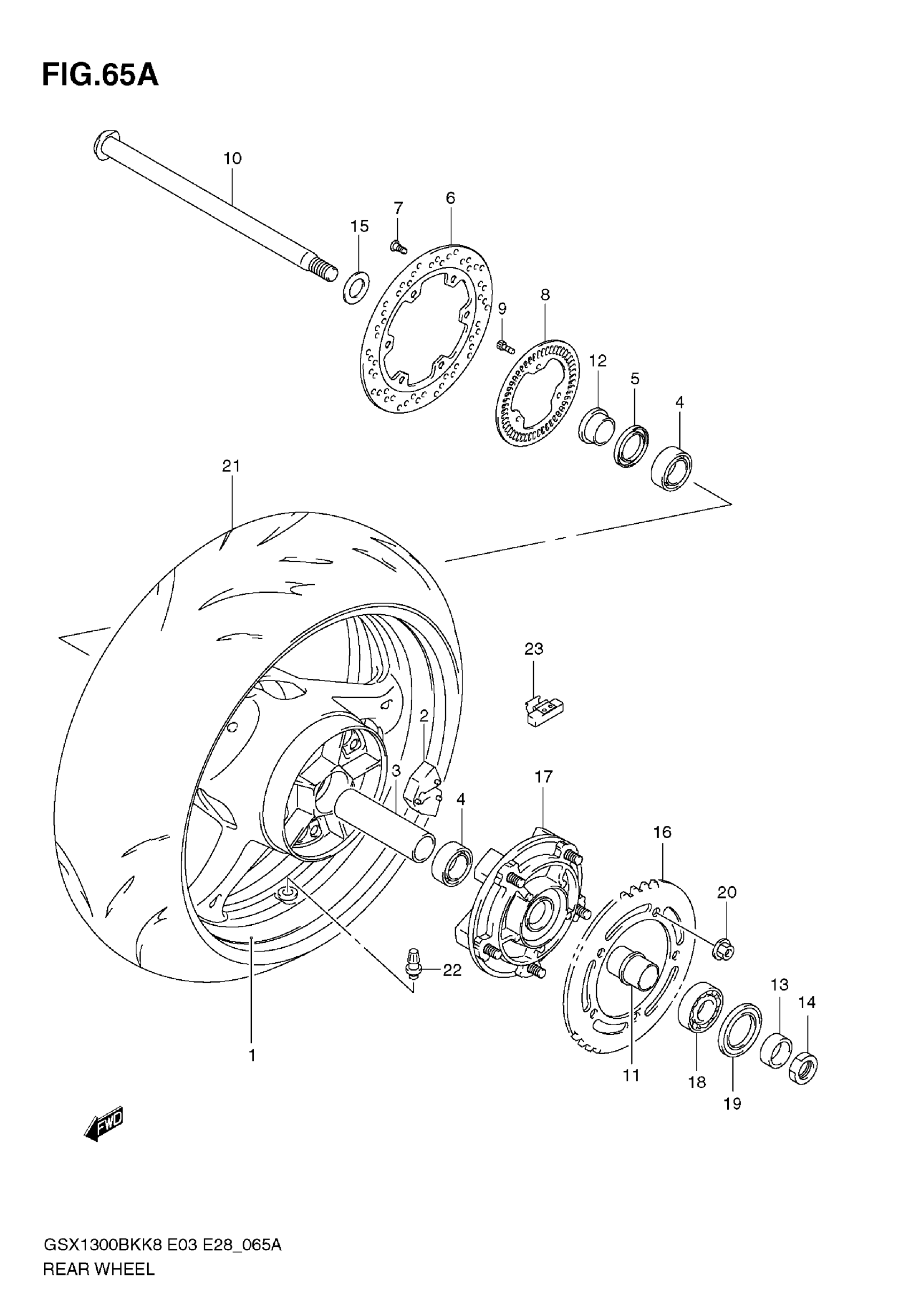

Suzuki GSX1300BK (2009) REAR WHEEL (GSX1300BKAK8/AK9) Diagram

#

Description
Price

1

WHEEL, REAR (17M/CXMT6.00) This part replaces 64111-15H10-019.

64111-15H11-019

$1,156.62

2

ABSORBER,RR HUB SHOCK

64651-35F30

$44.48

3

SPACER, REAR WHEEL BEARING

64731-40F10

$59.62

4

BEARING This part replaces 09262-28043.

09262-28063

$21.63

5

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

$7.85

6

DISC, REAR BRAKE

69211-15H00

$283.60

7

BOLT, REAR BRAKE DISC

09106-08160

$3.57

8

RING, SPEED SENSOR RR

64162-23H00

$37.08

9

BOLT

07130-05127

$3.15

10

AXLE, REAR

64711-23H00

Unavailable

11

RETAINER, REAR SPROCKET DRUM

64733-35F00

$26.61

12

SPACER,REAR AXLE,R This part replaces 64741-35F00.

64741-35F10

$13.49

13

SPACER, REAR AXLE, L

64751-23H00

Unavailable

14

NUT, REAR AXLE

09159-25003

$31.85

15

WASHER, RR AXLE NUT

09160-25070

$4.77

16

SPROCKET,RR (NT:43) This part replaces 64511-40F50.

64511-15H00

$135.45

17

DRUM, REAR SPROCKET

64610-06G10

Unavailable

18

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

$39.40

19

SEAL, REAR SPROCKET DRUM

09285-39001

$10.62

20

NUT, REAR SPROCKET

08319-3110A

$2.73

21

TIRE, REAR

65110-23H00

Unavailable

22

VALVE ASSY, WHEEL RIM

43130-24A00

$8.85

23

BALANCER, WHEEL NO.1

55411-39G00

Unavailable

23

BALANCER, WHEEL NO.2

55412-39G00

Unavailable

23

BALANCER, WHEEL NO.3

55413-39G00

Unavailable
