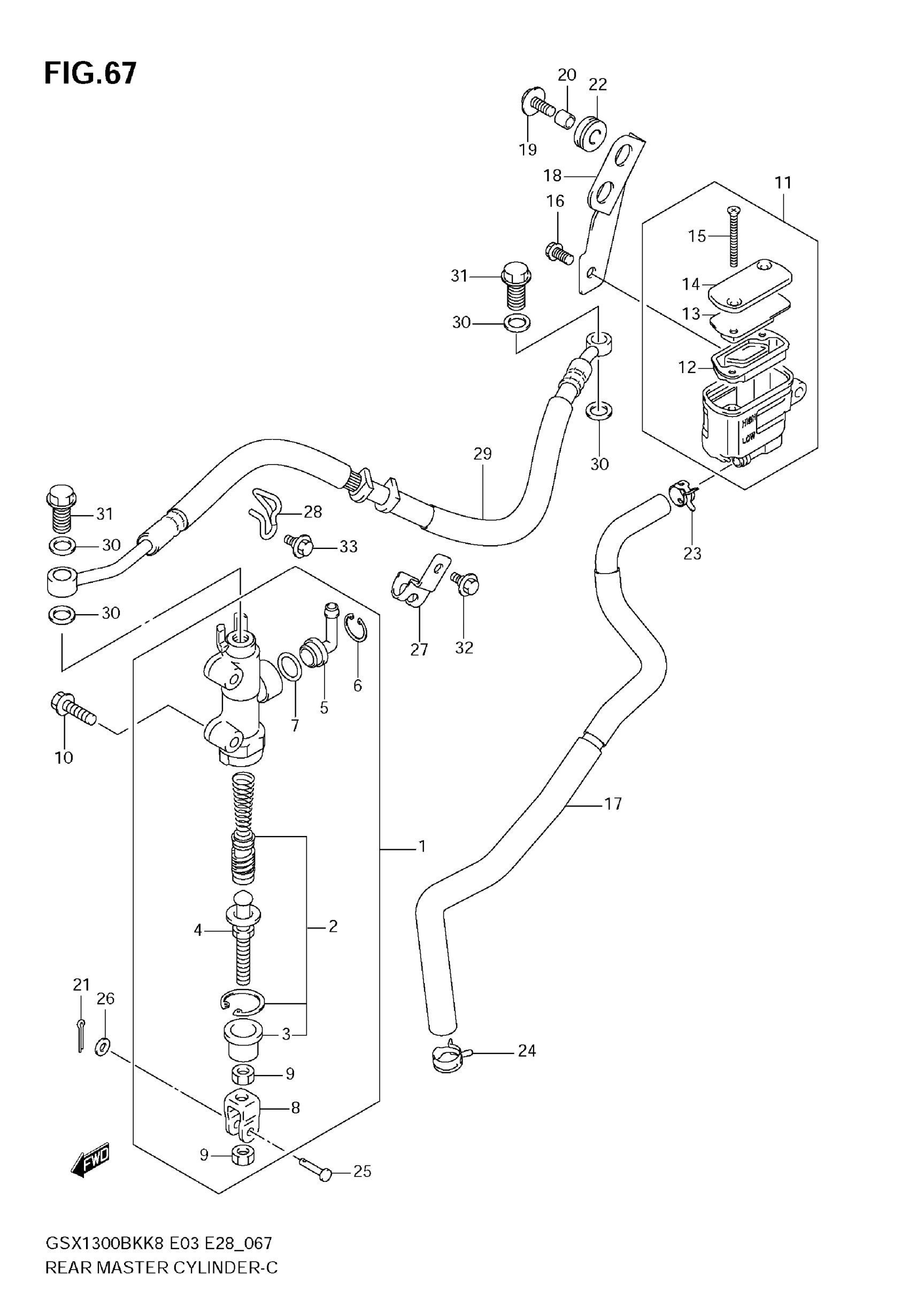

Suzuki GSX1300BK (2009) REAR MASTER CYLINDER (GSX1300BKK8/K9) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-01H10

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

ROD, PUSH

69670-48B00

$26.97

5

CONNECTOR

69672-00B20

$7.01

6

CIRCLIP

69674-00B20

$3.97

7

O RING

69686-34200

$2.93

8

YOKE

69692-27A30

$13.81

9

NUT

69693-05A00

$1.96

10

BOLT, REAR MASTER CYLINDER

09139-06028

$3.70

11

TANK ASSY,RESERVOIR | Includes Item(s) 12 - 15 This part replaces 69740-01H10.

69740-18K00

$28.10

12

DIAPHRAGM

69667-01H00

$6.30

13

PLATE, DIAPHRAGM

69668-01H00

$5.98

14

CAP, RESERVOIR

69669-01H00

Unavailable

15

SCREW

69689-01H00

$4.45

16

BOLT, RESERVOIR TANK

01547-0612A

$2.03

17

HOSE, RR RESERVOIR

69730-23H00

Unavailable

18

BRACKET, RR RESERVOIR

69750-23H00

Unavailable

19

BOLT, RR RESERVOIR TANK

09116-06170

$2.50

20

SPACER, RESERVOIR TANK BRACKET

09180-06260

$3.37

21

PIN, REAR MASTER CYLINDER

09200-06068

$4.11

22

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

23

CLAMP, RR RESERVOIR TANK HOSE

09401-12404

$2.34

24

CLIP, RR RESERVOIR TANK HOSE

09401-14410

Unavailable

25

PIN, REAR MASTER COTTER

04111-2015A

$1.49

26

WASHER, REAR MASTER

08322-0106A

$1.84

27

GUIDE, REAR BRAKE HOSE

69243-23H00

Unavailable

28

CLAMP, REAR BRAKE HOSE

69268-23H00

Unavailable

29

HOSE, REAR BRAKE

69480-23H00

Unavailable

30

WASHER (10X15X1.5)

09161-10009

$1.84

31

BOLT, BRAKE FLUID CALIPER

09360-10062

$6.43

32

BOLT, RR BRAKE HOSE CLAMP

01547-0612A

$2.03

33

BOLT, RR BRAKE HOSE GUIDE

01550-0612A

$1.97
