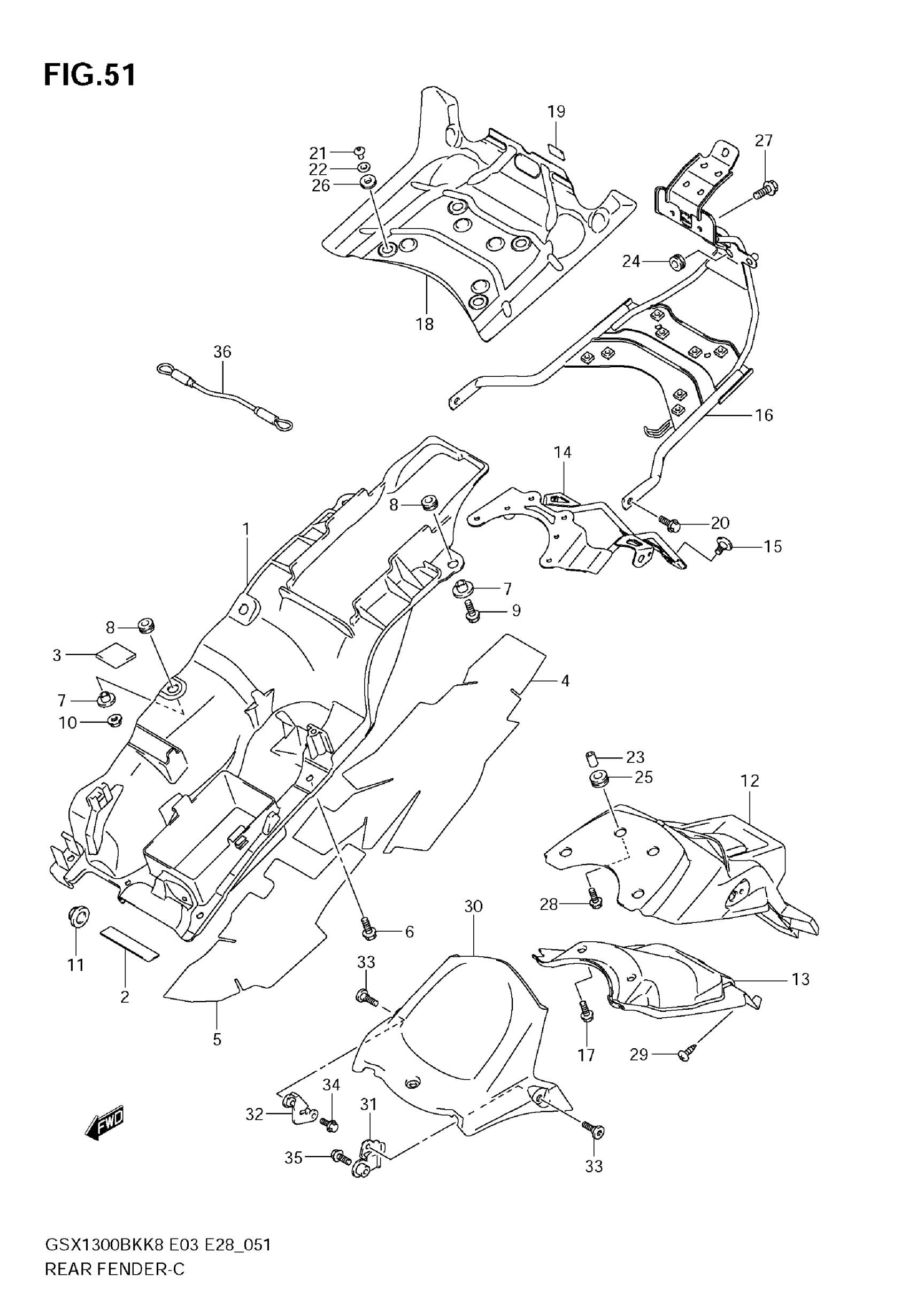

Suzuki GSX1300BK (2009) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR FRONT

63111-23H00

Unavailable

2

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

3

CUSHION, CENTER

44885-44AA0

$3.18

4

SHIELD, REAR FENDER NO.1

63151-23H00

Unavailable

5

SHIELD, REAR FENDER NO.2

63152-23H00

Unavailable

6

BOLT, FRONT NO.1

09111-06066

$2.62

7

SPACER, FRONT

09180-06319

$3.85

8

CUSHION, FRONT

09320-08070

$11.57

9

BOLT, FRONT NO.2

01550-0620A

$1.97

10

NUT, FRONT

08316-1006A

$2.19

11

CUSHION, FRONT

09321-10018

$5.45

12

FENDER, REAR REAR

63112-23H00

Unavailable

13

COVER, REAR FENDER REAR

63114-23H00

Unavailable

14

BRACKET, FENDER REAR

63130-23H01

Unavailable

15

BOLT

09139-06144

$2.50

16

BRACE, REAR FENDER

63140-23H00

Unavailable

17

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60

18

HEATSHIELD, REAR FENDER

63261-23H00

Unavailable

19

CUSHION, HEATSHIELD REAR

63262-23H00

Unavailable

20

BOLT, BRACE

09106-08140

$6.38

21

BOLT, HEATSHIELD

09139-06062

$3.03

22

WASHER, HEATSHIELD

09169-06040

$1.92

23

SPACER, REAR FENDER REAR

09180-06095

$3.93

24

CUSHION (8.4X18X6)

09320-08066

$8.24

25

CUSHION, REAR FENDER REAR

63115-23H00

Unavailable

26

CUSHION, HEATSHIELD

09320-08082

$8.22

27

BOLT, BRACE

01550-0612A

$1.97

28

BOLT, REAR

09103-06282

$2.50

29

SCREW, REAR COVER

03541-0516A

$1.49

30

FENDER, REAR LOWER

63113-23H01

$119.70

31

BRACKET, FENDER LOWER RH

63120-23H00

Unavailable

32

BRACKET, FENDER LOWER LH

63150-23H00

Unavailable

33

BOLT, REAR FENDER LOWER

09139-06144

$2.50

34

BOLT, BRACKET RH

01550-0612A

$1.97

35

BOLT, BRACKET LH

01550-0620A

$1.97

36

CABLE,HELMET LO This part replaces 95740-10G00.

95740-10G01

$26.10
