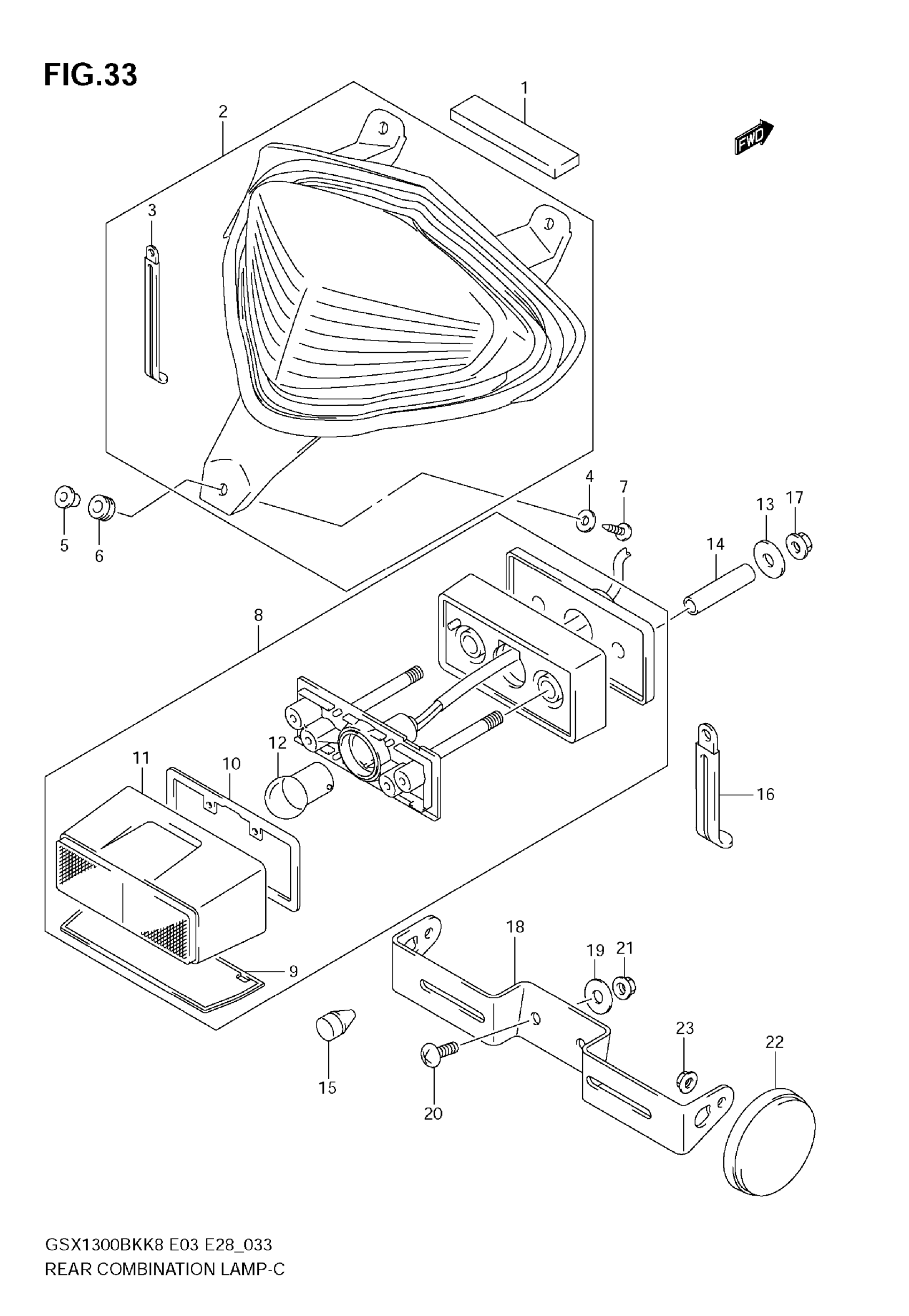

Suzuki GSX1300BK (2009) REAR COMBINATION LAMP Diagram

#

Description
Price

1

CUSHION, REAR COMB (75X20X10)

17128-05H00

Unavailable

2

LAMP ASSY,REAR | Includes Item(s) 3 This part replaces 35710-23H00.

35710-23H01

$393.58

3

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

4

WASHER (6.5X14X2.0)

09160-06126

$1.91

5

WASHER

09169-06083

Unavailable

6

CUSHION

09320-07018

Unavailable

7

SCREW, REAR COMB LAMP

03541-0625A

Unavailable

8

LAMP ASSY,LICENSE | Includes Item(s) 9 - 12 This part replaces 35910-41G30.

35910-41G32

$88.47

9

LENS, LICENSE This part replaces 35912-41G00.

35912-41G01

$13.28

10

GASKET

35913-41G00

$14.23

11

COVER, LICENSE LAMP

35917-41G00

$35.32

12

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

13

WASHER, LICENSE LAMP | 6.5X20X1.2

09160-06077

$1.91

14

SPACER, LECENSE LAMP | 6.5X9X34

09180-06356

$4.68

15

CUSHION

09321-06023

$2.50

16

CLAMP (L:45)

09404-06429

$1.83

17

NUT, LICENSE LAMP

08316-1006A

$2.19

18

BRACKET, LICENSE PLATE

35927-41G30

$15.17

19

WASHER, LICENSE | 6.5X16X1.2

09160-06019

$1.49

20

SCREW, LICENSE

02142-0616A

$1.49

21

NUT, LICENSE

08316-1006A

$2.19

22

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

23

NUT

08316-1005B

$2.50
