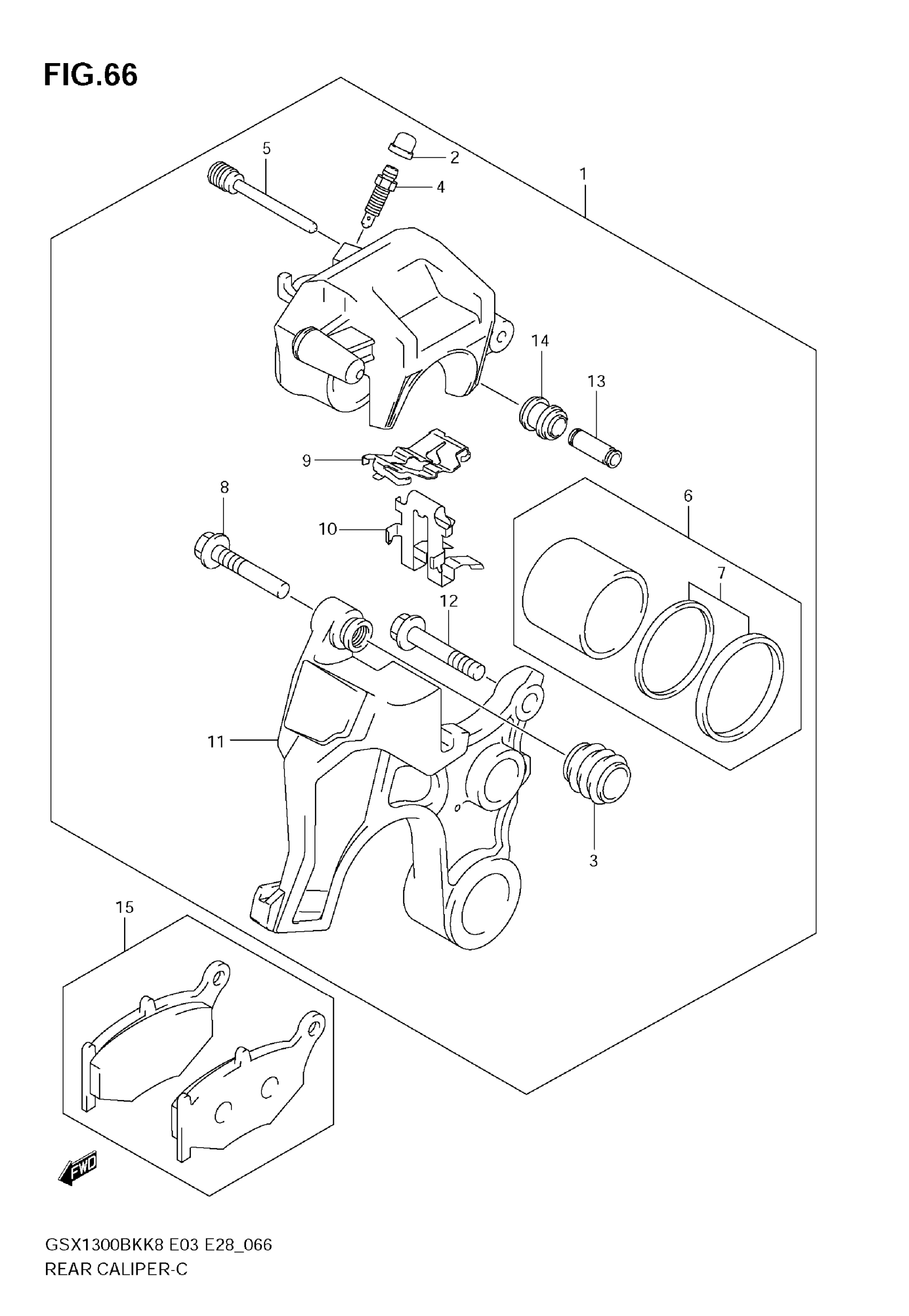

Suzuki GSX1300BK (2009) REAR CALIPER (GSX1300BKK8/K9) Diagram

#

Description
Price

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 14

69100-15H00-999

$580.50

2

CAP, BLEEDER PLUG

55156-66310

$5.17

3

BOOT, AXLE

59112-44B00

$8.91

4

BLEEDER

59121-18410

$8.73

5

PIN, PAD

59141-40F00

$37.45

6

PISTON SET

69100-44890

$66.40

7

SEAL SET, PISTON

69102-05880

$18.94

8

PIN, BOLT

69105-44G00

$14.08

9

SPRING, PAD

69115-44G00

$17.58

10

RETAINER

69116-44G00

$10.93

11

BRACKET

69150-15H00

$167.93

12

BOLT

69182-44G00

$12.10

13

SLEEVE

69185-44G00

$21.58

14

BOOT, SLEEVE

69186-44G00

$13.22

15

PAD SET

69100-15830

$55.60
