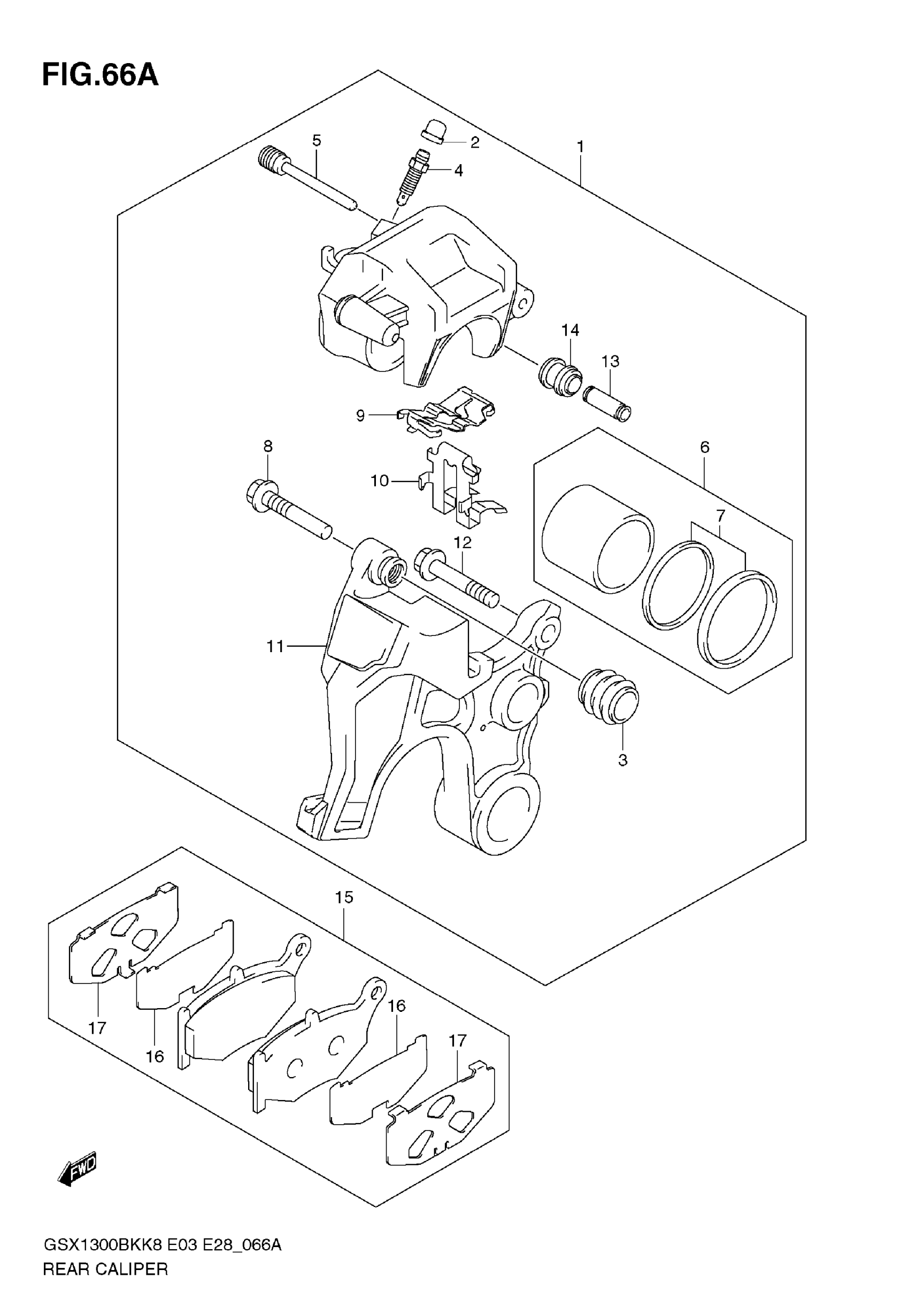

Suzuki GSX1300BK (2009) REAR CALIPER (GSX1300BKAK8/AK9) Diagram

#

Description
Price

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 14

69100-15H10-999

Unavailable

2

CAP, BLEEDER PLUG

55156-66310

$4.73

3

BOOT, AXLE

59112-44B00

$8.15

4

BLEEDER

59121-18410

$7.99

5

PIN, PAD

59141-40F00

$35.26

6

PISTON SET

69100-44890

$74.95

7

SEAL SET, PISTON

69102-05880

$17.83

8

PIN, BOLT

69105-44G00

$13.26

9

SPRING, PAD

69115-44G00

$19.85

10

RETAINER

69116-44G00

$10.01

11

BRACKET

69150-15H10

Unavailable

12

BOLT

69182-44G00

$11.40

13

SLEEVE

69185-44G00

$24.37

14

BOOT, SLEEVE

69186-44G00

$12.45

15

PAD & SHIM SET | Includes Item(s) 16 - 17

69100-15850

$86.03

16

INSULATOR

69132-44G10

$16.74

17

SHIM

69133-44G00

$11.18
