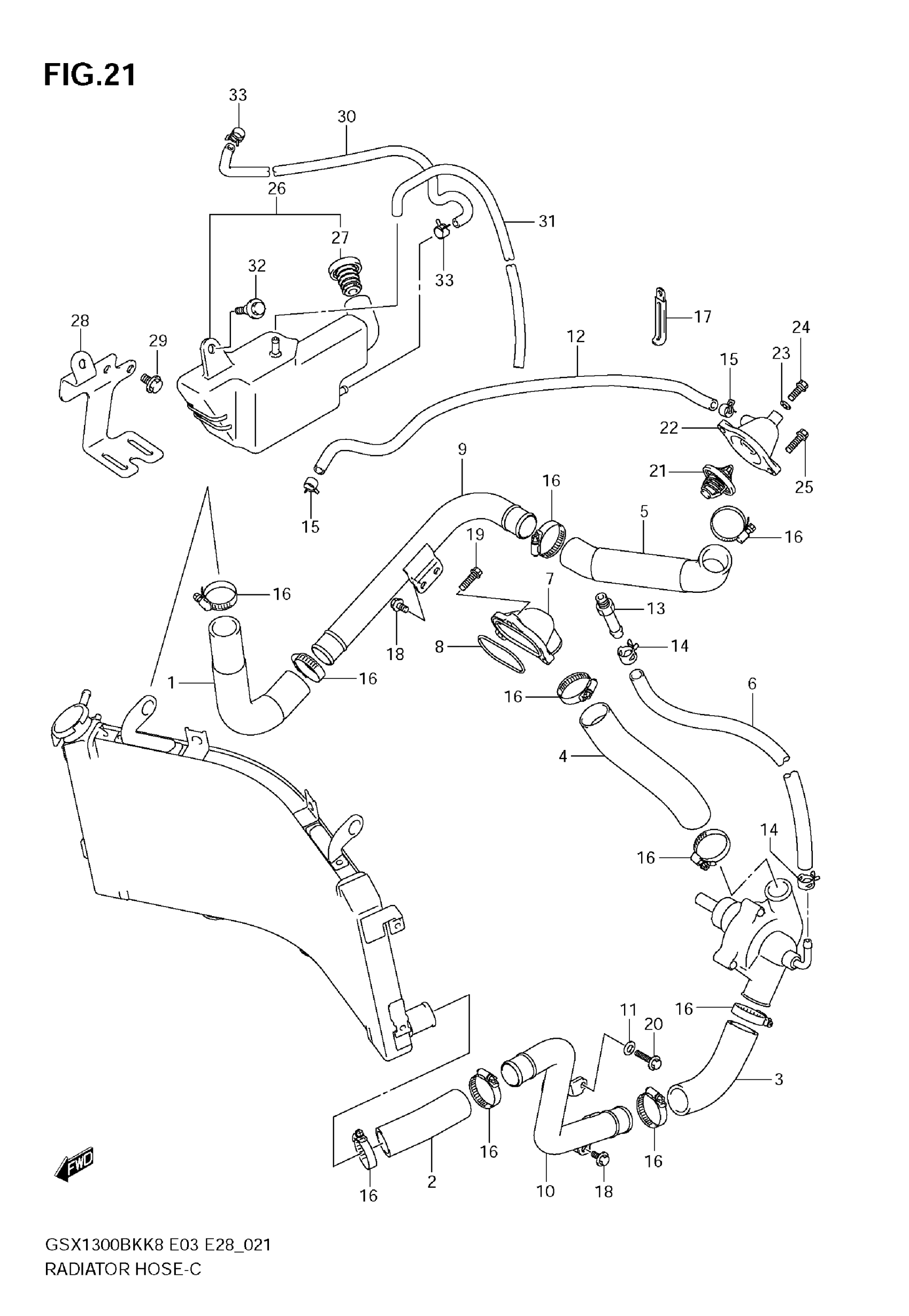

Suzuki GSX1300BK (2009) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-23H00

$28.35

2

HOSE, RADIATOR OUTLET

17852-23H00

$13.85

3

HOSE, WATER PUMP INLET

17853-23H00

$14.77

4

HOSE, CYLINDER INLET

17853-24F00

$20.25

5

HOSE, CYLINDER HEAD OUTLET

17854-23H00

$29.83

6

HOSE, WATER BYPASS

17854-24F00

$22.92

7

CONNECTOR

17861-33E20

$22.56

8

O-RING

17863-33E00

$4.03

9

PIPE, RADIATOR INLET

17880-23H00

$117.48

10

PIPE, RADIATOR OUTLET

17890-23H00

$142.80

11

WASHER

09160-06109

$1.49

12

HOSE, WATER AIR BLEED

09352-50111-600

$13.78

13

UNION, BYPASS

09362-09011

$8.28

14

CLIP This part replaces 09401-12409.

09401-12414

$3.26

15

CLIP (ID:10.5,H:8)

09401-10409

$2.26

16

CLAMP

09402-38512

$11.72

17

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

18

BOLT

01547-0610A

$2.45

19

BOLT

01547-0620A

$2.03

20

BOLT

01547-0625B

$2.45

21

THERMOSTAT,WATER

17670-15H00

$36.79

22

COVER, THERMOSTAT

17661-35F00

$43.10

23

GASKET

09168-06026

$3.10

24

BOLT

17568-50F00

$4.76

25

BOLT

01547-0620A

$2.03

26

TANK ASSY, RESERVOIR | Includes Item(s) 27

17910-23H00

Unavailable

27

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

28

BRACKET

17920-23H00

Unavailable

29

BOLT

01550-0612A

$1.97

30

HOSE, TANK OVERFLOW This part replaces 17981-35F00.

17900-35810

$35.45

31

HOSE, RESERVER TANK OVERFLOW

17982-23H00

Unavailable

32

BOLT (6X12)

09111-06085

$4.54

33

CLIP

09401-08411

$1.78
