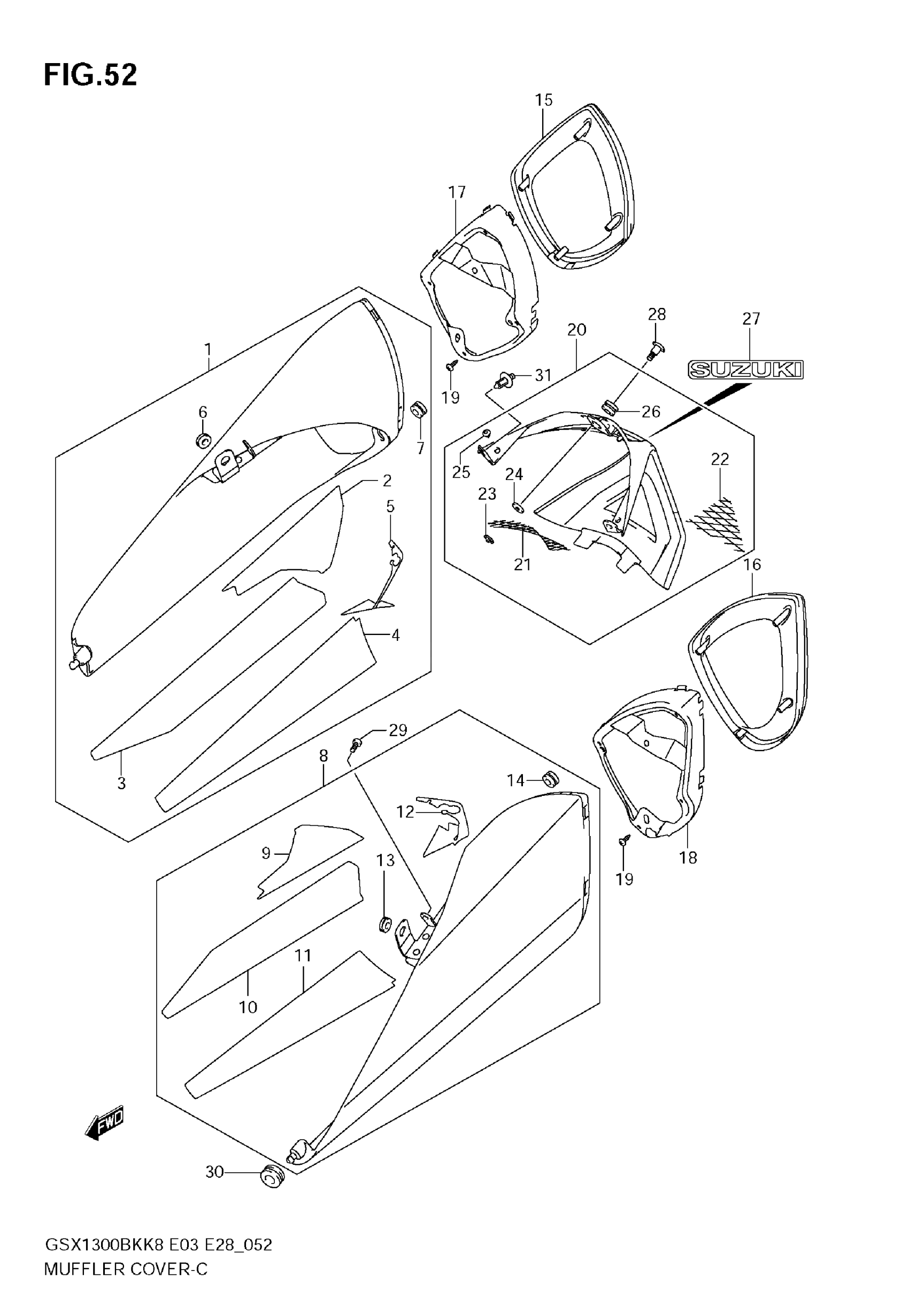

Suzuki GSX1300BK (2009) MUFFLER COVER Diagram

#

Description
Price

1

COVER, MUFFLER RH (BLACK) | FOR CRU,YPA

93310-23H00-YKV

Unavailable

1

COVER, MUFFLER, RH (SILVER) | FOR ETT; Includes Item(s) 2 - 7

93310-23H00-YPD

Unavailable

2

SHIELD, COVER RH NO.1

93313-23H00

Unavailable

3

SHIELD, COVER RH NO.2

93314-23H00

Unavailable

4

SHIELD, COVER RH NO.3

93315-23H00

Unavailable

5

SHIELD, COVER RH NO.4

93316-23H00

Unavailable

6

CUSHION, COVER BRACKET

09320-08069

$8.37

7

CUSHION, COVER REAR

09320-08070

$11.57

8

COVER, MUFFLER LH (BLACK) | FOR CRU,YPA

93410-23H00-YKV

Unavailable

8

COVER, MUFFLER LH (SILVER) | FOR ETT; Includes Item(s) 9 - 14

93410-23H00-YPD

Unavailable

9

SHIELD, MUF COV LH NO.1

93413-23H00

Unavailable

10

SHIELD, MUF COV LH NO.2

93414-23H00

Unavailable

11

SHIELD, MUF COV LH NO.3

93415-23H00

Unavailable

12

SHIELD, MUF COV LH NO.4

93416-23H00

Unavailable

13

CUSHION, MUFFLER COVER

09320-08069

$8.37

14

CUSHION, MUFFLER COVER

09320-08070

$11.57

15

COVER, MUFFLER TAIL RH (SILVER) | FOR CRU,ETT

93321-23H00-YPD

Unavailable

15

COVER, MUFFLER TAIL RH (BLACK) | FOR YPA

93321-23H00-YKV

Unavailable

16

COVER, MUFFLER TAIL LH (SILVER) | FOR CRU,ETT

93421-23H00-YPD

Unavailable

16

COVER, MUFFLER TAIL LH (BLACK) | FOR YPA

93421-23H00-YKV

Unavailable

17

BRACKET, COVER TAIL RH

93330-23H00

Unavailable

18

BRACKET, COVER TAIL LH

93430-23H00

Unavailable

19

SCREW, MUFFLER COVER TA

03541-0512A

$1.49

20

COVER, MUFFLER CENTER (BLACK) | Includes Item(s) 21 - 26

93380-23H00-YKV

Unavailable

21

NET, COVER CENTER

93382-23H00

Unavailable

22

NET, COVER LOWER

93383-23H00

Unavailable

23

NUT This part replaces 09148-05006.

09148-05012

$1.75

24

WASHER

09320-06501

$3.60

25

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.71

26

CUSHION

09320-08070

$11.57

27

EMBLEM, SUZUKI (SILVER)

68881-23H00-YES

Unavailable

28

SCREW, CENTER COVER

09139-06126

$4.04

29

SCREW, MUFFLER COVER

09139-06124

$4.52

30

CUSHION, COVER FRONT

09320-08018

$3.04

31

CLIP, CENTER COVER

09409-07022

Unavailable
